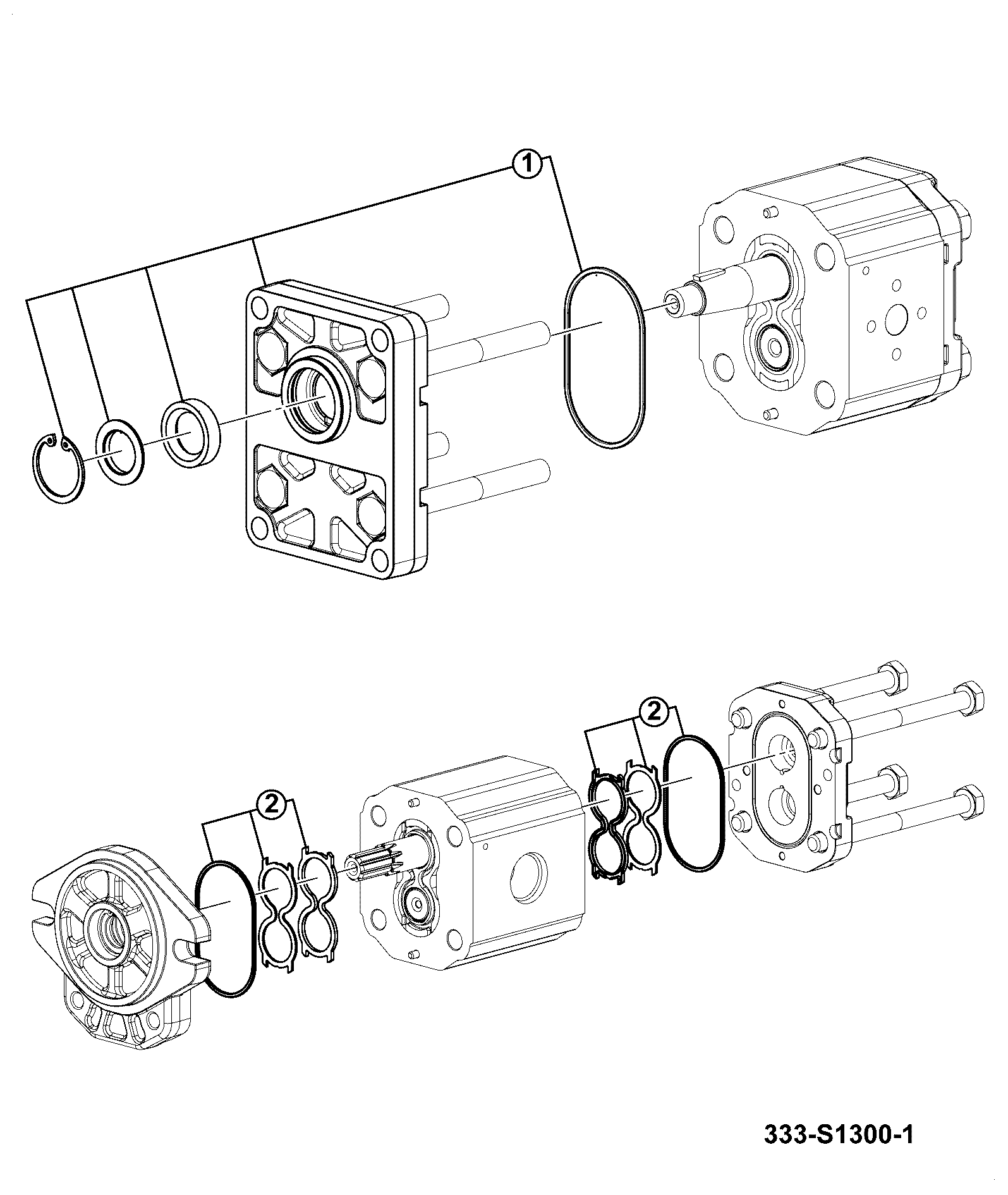

E260-10-1 OTHER HYDRAULIC PUMPS INSTALLATION 19.5 CC , SEAL KIT , TIER 4 FINAL Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	PUMP - 19.5 CC ABI 335/F3957	1	AVAILABLE TO ORDER	$1,565.56	Quantity
1	Kit Flange Mounting 335/H4944	1	AVAILABLE TO ORDER	$1,679.98	Quantity
2	KIT SEAL PRESSURE BLANCE 335/H4945	1	AVAILABLE TO ORDER	$414.27	Quantity
3	Pulley Shaft Housing 335/H4946	1	AVAILABLE TO ORDER	$887.74	Quantity

Showing 1 to 4 of 4 parts
