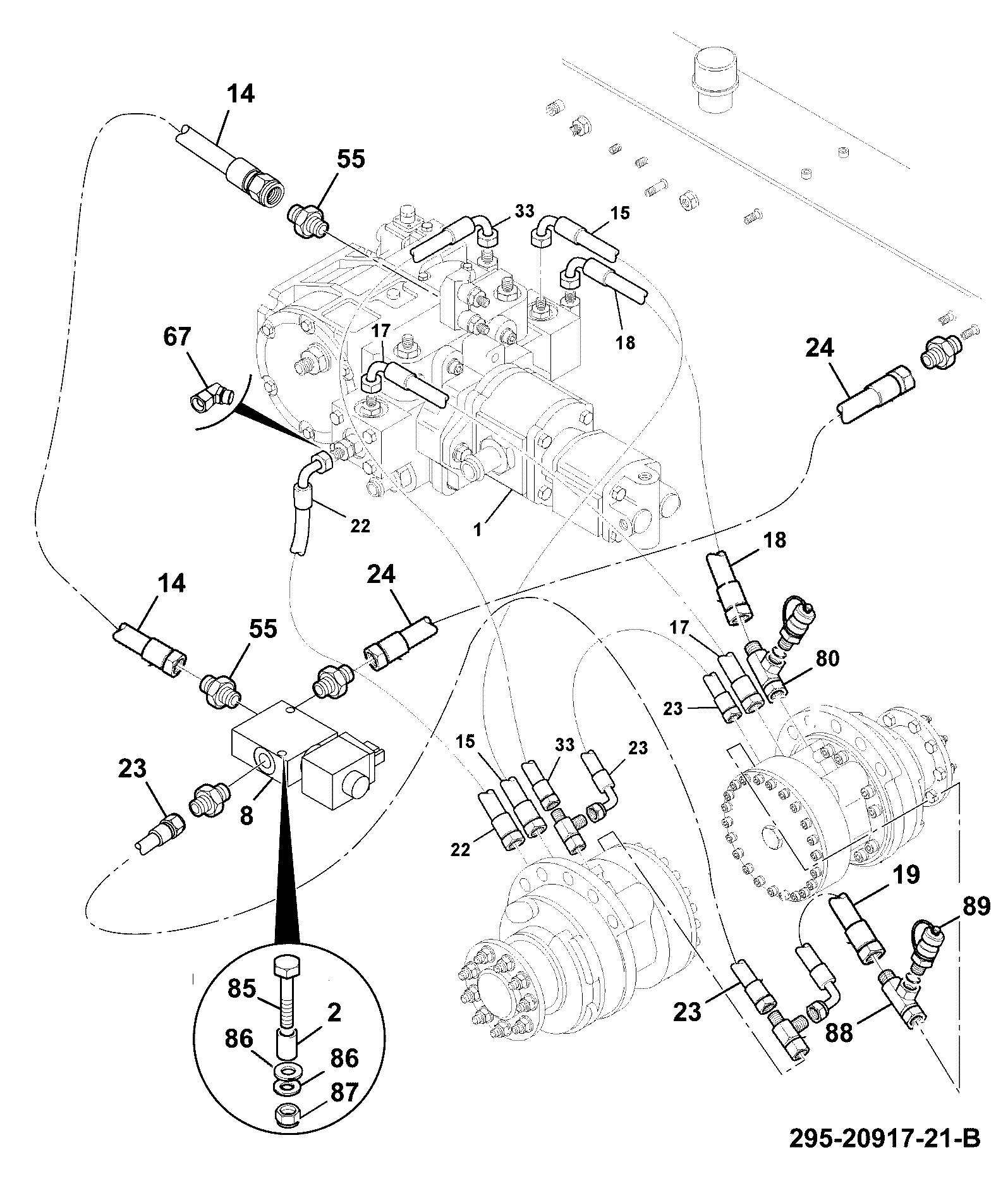

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PUMP 20/925251 20/925641 | 1 | $12,194.52 | |||
| 2 | Adapter block 933/20014 | 1 | $84.96 | |||
| 3 | Setscrew 1305/1822D | 1 | $2.83 | |||
| 4 | WASHER 7/16IN SMALL 1410/0004D | 1 | $0.89 | |||
| 6 | O-RING - 32.51 x 3.81 PU9 828/00417 828/00021 | 1 | $25.21 | |||
| 7 | ADAPTOR G3/4A-1-1/16UNF(M 1620/0010 1620/2059 | 1 | $14.30 | |||
| 8 | ADAPTOR G5/8Ax7/8SAE 1620/0007 1620/2056 | 1 | $12.58 | |||
| 12 | HOSE ADAPTOR 816/60232 | 1 | $75.13 | |||
| 14 | Adapter 4 way 816/90258 | 1 | $39.84 | |||
| 15 | LS TANDEM PUMP-LPG 333/S7588 333/W2429 | 1 | $1,960.88 | |||
| 17 | WASHER 1/2" MEDIUM 1411/0005D | 1 | $0.89 | |||
| 19 | THREADSEAL 50ML 4102/1951 | 1 | $45.92 | |||
| 20 | ADAPTOR M/CING. 816/60249 | 1 | $49.59 | |||
| 21 | ADAPTOR G3/4A X 7/8 SAE 1620/2058 | 1 | $5.52 | |||
| 23 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 24 | ADAPTOR G1/4A-7/16UNF(M) 1620/2050 | 1 | $2.60 | |||
| 27 | TEMPERATURE SWITCH - OIL 701/80363 | 1 | $181.82 | |||
| 36 | 2 WAY AMP JT TO DEUTSCH D 721/10763 | 1 | $39.86 | |||
| 37 | HYDRAULIC TEST POINT ADAP 332/V3873 401/N8244 | 1 | $19.06 | |||
| 38 | O RING SEAL 813/00453 | 1 | $7.89 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-
DIAG-E190-20-1-397173 E190-20-1 OTHER HYDRAULIC CIRCUITS STEER CIRCUIT
View Diagram -
DIAG-E130-25-1-397173 E130-25-1 HYDRAULIC CIRCUITS CHASSIS NEUTRAL HYRDAULICS
View Diagram -
DIAG-E130-20-1-397173 E130-20-1 HYDRAULIC CIRCUITS CHASSIS NEUTRAL HYDRAULICS
View Diagram
