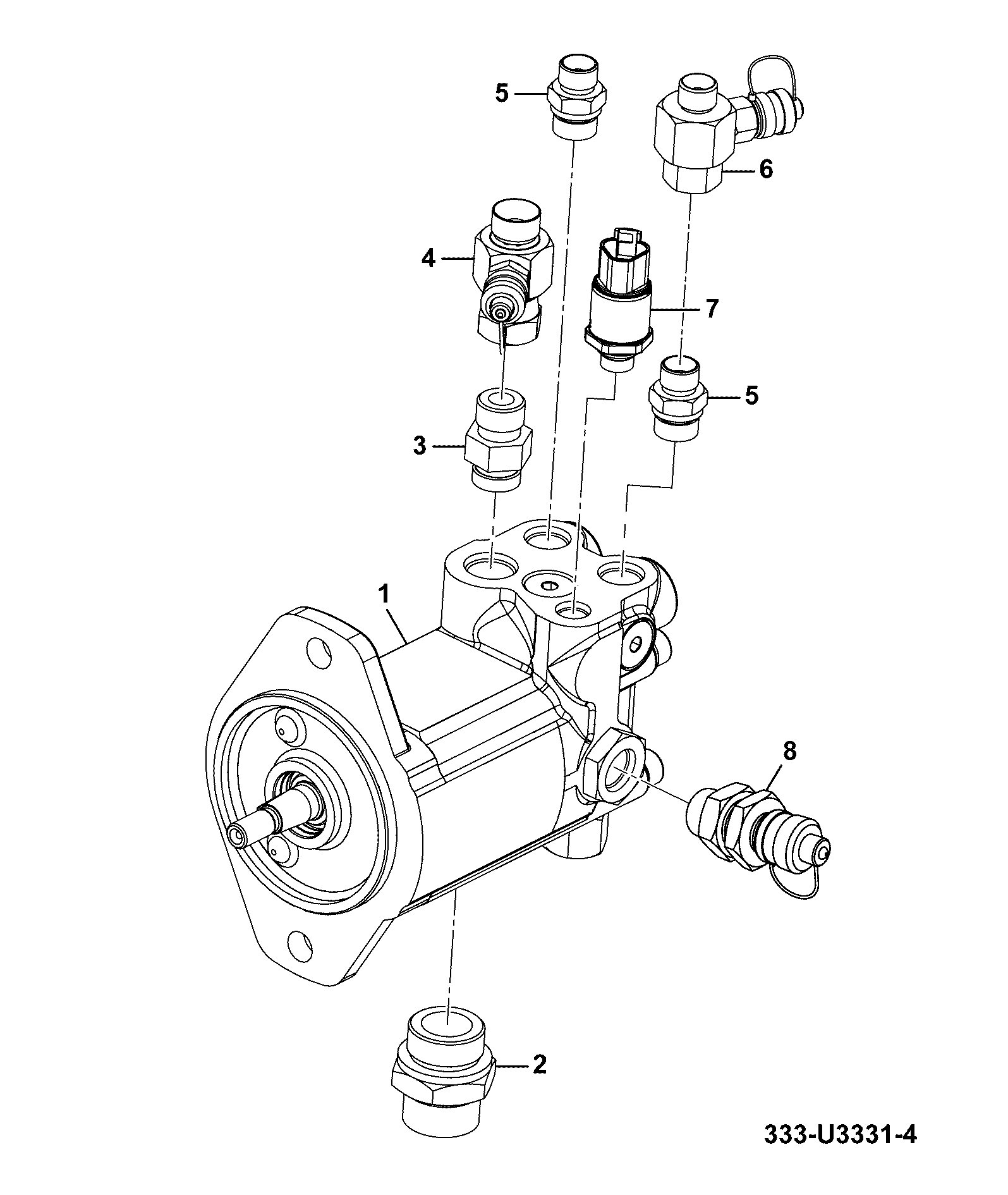

E250-2-2 PUMPS CHARGE BRAKE PUMP COMPONENTS, 334/R6435 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Part Number	Qty.	Avl.	Price (USD)	Action
21cc BRAKE/FAN CHARGE PUMP 334/R6435	1	AVAILABLE TO ORDER	$3,315.47	Quantity
Key - pack of 20 20/951643	1	AVAILABLE TO ORDER	$503.75	Quantity
KIT SEAL 20/950952	1	AVAILABLE TO ORDER	$184.67	Quantity
Nut 333/H5265	1	AVAILABLE TO ORDER	$1.73	Quantity
Valve 333/H5263	1	AVAILABLE TO ORDER	$1,049.61	Quantity
Washer 333/H5267	1	AVAILABLE TO ORDER	$57.05	Quantity

Showing 1 to 6 of 6 parts

DIAG-E250-1-2-404972 E250-1-2 PUMPS CHARGE BRAKE PUMP
View Diagram

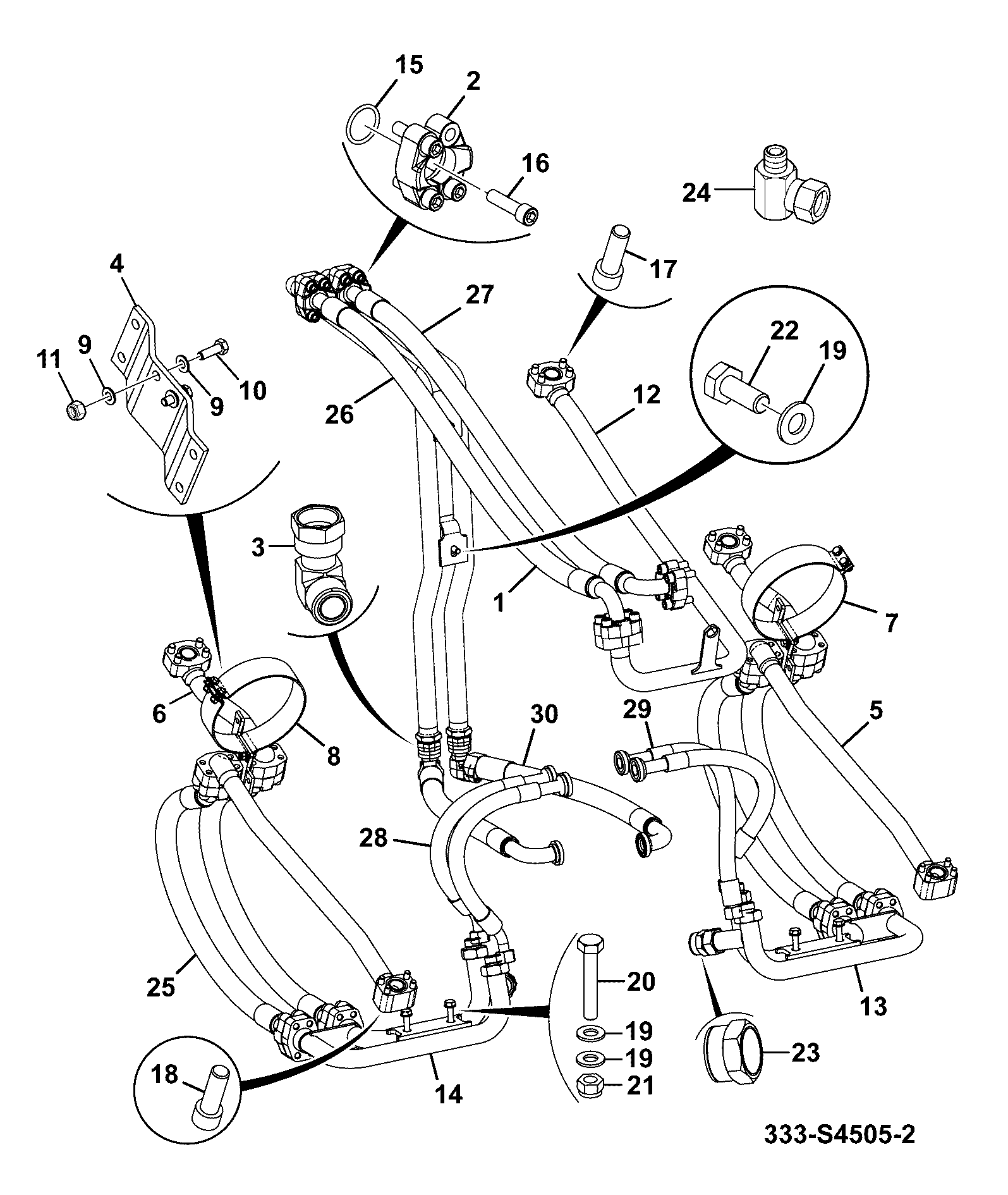

DIAG-E120-4-1-404972 E120-4-1 HYDRAULIC CIRCUITS LOADER END ZX BUILDS, WIRE GUARDED HOSES
