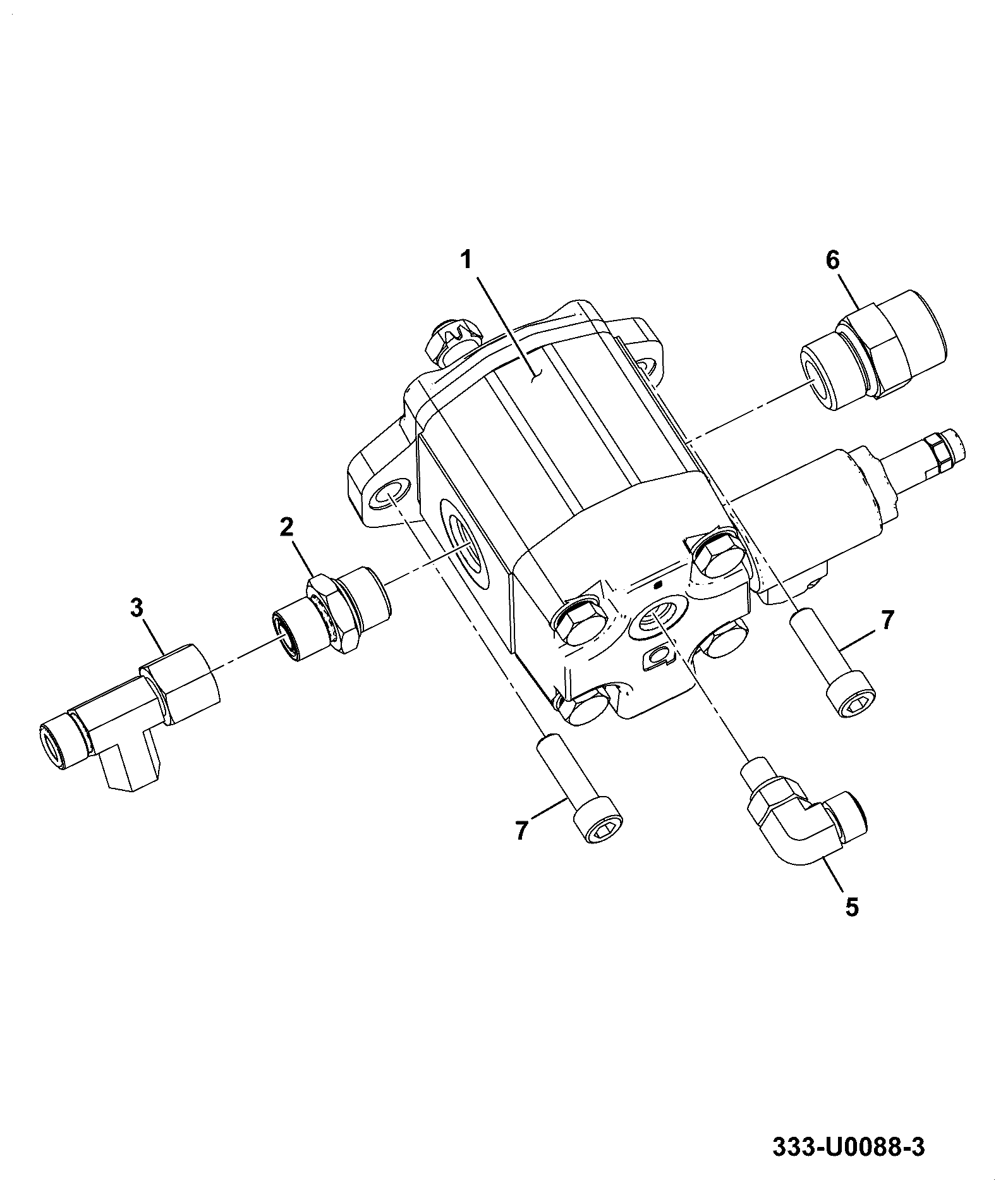

E250-2-1 PUMPS CHARGE BRAKE PUMP COMPONENTS, 333/T1003 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Part Number	Qty.	Avl.	Price (USD)	Action
21cc BRAKE/FAN CHARGE PUMP 20/925469 333/T1003	1	AVAILABLE TO ORDER	$3,307.47	Quantity
Key - pack of 20 20/951643	1	AVAILABLE TO ORDER	$503.75	Quantity
KIT SEAL 20/950952	1	AVAILABLE TO ORDER	$184.67	Quantity
Nut 333/H5265	1	AVAILABLE TO ORDER	$1.73	Quantity
Valve assembly 333/C4243	1	AVAILABLE TO ORDER	$1,586.11	Quantity
Washer 333/H5267	1	AVAILABLE TO ORDER	$57.05	Quantity

Showing 1 to 6 of 6 parts
