Scroll to zoom Click a part # to view details

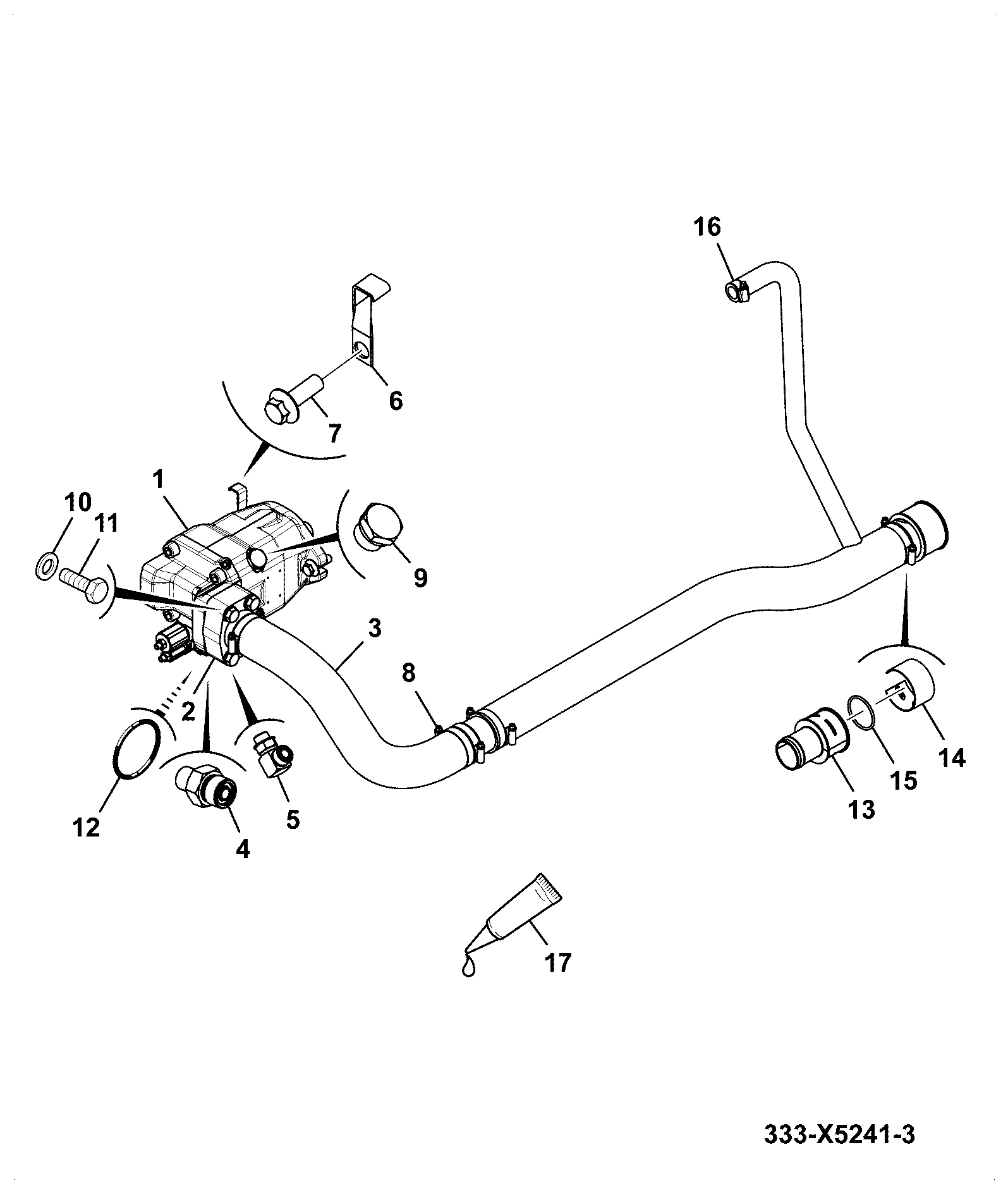

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| W) CLIP - WORMDRIVE 20/32mm 2201/0006 | 1 | $5.14 | ||||
| ABI HOSE - FORMED SUCTION STD T4 333/X6502 | 1 | $210.26 | ||||
| SPRING BAND CLIP 35-50mm (P933) 2206/3550 | 1 | $12.52 | ||||
| TANK CONNECTOR - STR-65P-38.1D 333/X2576 | 1 | $24.56 | ||||
| TANK CONNECTOR LOCK - 65P 333/X2578 | 1 | $9.63 | ||||
| TANK CONNECTOR O-RING - 65P 333/X2579 | 1 | $10.23 | ||||
| 1 | PISTON PUMP - 45CC 332/X1736 | 1 | $3,337.62 | |||
| 2 | TUBE ASSY - PUMP SUCTION 332/X9055 | 1 | $179.60 | |||
| 4 | ADAPTOR ORFS M -04/SAE ORB -04 1751/0404 | 1 | $8.23 | |||
| 5 | ADA.ORFS M-10/SAE 0RB-10 ELB 1754/1010 | 1 | $25.13 | |||
| 6 | SUPPORT CLIP 294/00636 | 1 | $6.18 | |||
| 7 | BOLT M12 X 35 332/L8316 | 1 | $1.88 | |||
| 8 | 'SPRING BAND CLIP 50-70mm(KANBAN) (P282) 2201/0012 2206/5070 | 1 | $12.64 | |||
| 9 | CLIP - WORMDRIVE 35/50mm(KANBAN). 2201/0009 | 1 | $3.89 | |||
| 10 | PLUG 7/8UNF O RING BOSS 1745/0004 | 1 | $4.38 | |||
| 11 | M12 HARDENED WASHER 1422/0009Z | 1 | $1.97 | |||
| 12 | (P) BOLT M12x60 1316/3514Z | 1 | $17.79 | |||
| 13 | O-RING 2409/0216 | 1 | $7.00 | |||
| 14 | Loctite 243 50ml 320/00834 4101/1102 | 1 | $30.29 | |||
| 14 | Loctite 243 - 250ml 4101/1103 | 1 | $122.83 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-

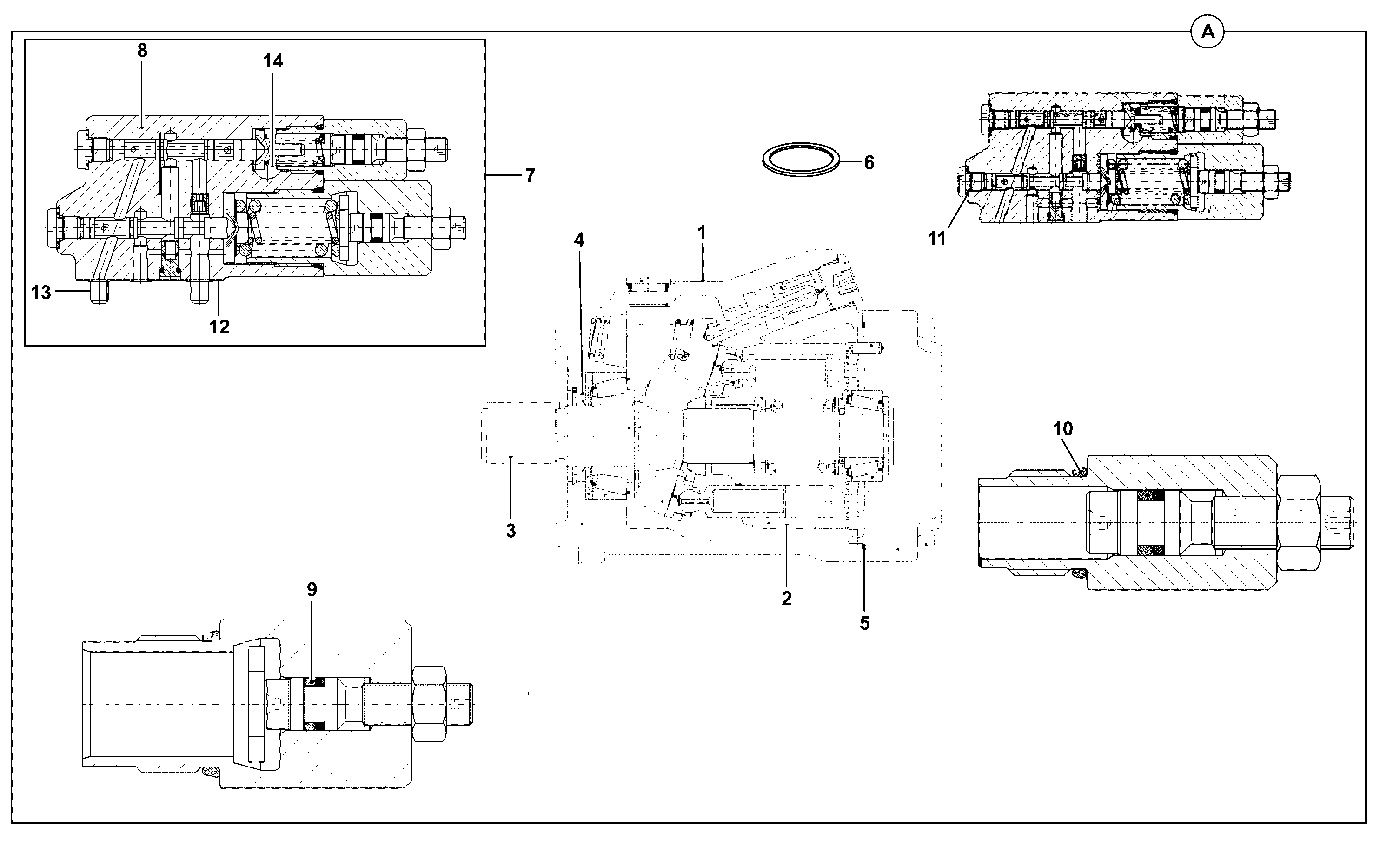

DIAG-E220-5-1-395367 E220-5-1 PUMPS VARIFLOW COMPONENTS PUMP PISTON, 45cc
View Diagram -
DIAG-E220-10-1-395367 E220-10-1 PUMPS VARIFLOW PISTON PUMP,HIGH FLOW,TIER 4
View Diagram -
DIAG-E220-15-1-395367 E220-15-1 PUMPS VARIFLOW COMPONENTS PUMP PISTON, 63cc
View Diagram
