E205-5-1 PUMP COUPLING DRIVESHAFT ASSEMBLY SYNCHROSHUTTLE TRANSMISSION Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
10	SHAFT pump drive 334/Y2269	1	AVAILABLE TO ORDER	$82.88	Quantity
20	BALL BEARING 916/10012	1	AVAILABLE TO ORDER	$38.76	Quantity
30	SEAL RING 40 DIA 904/20210	1	AVAILABLE TO ORDER	$30.44	Quantity
40	CIRCLIP 2203/1068	1	AVAILABLE TO ORDER	$0.78	Quantity

Showing 1 to 4 of 4 parts

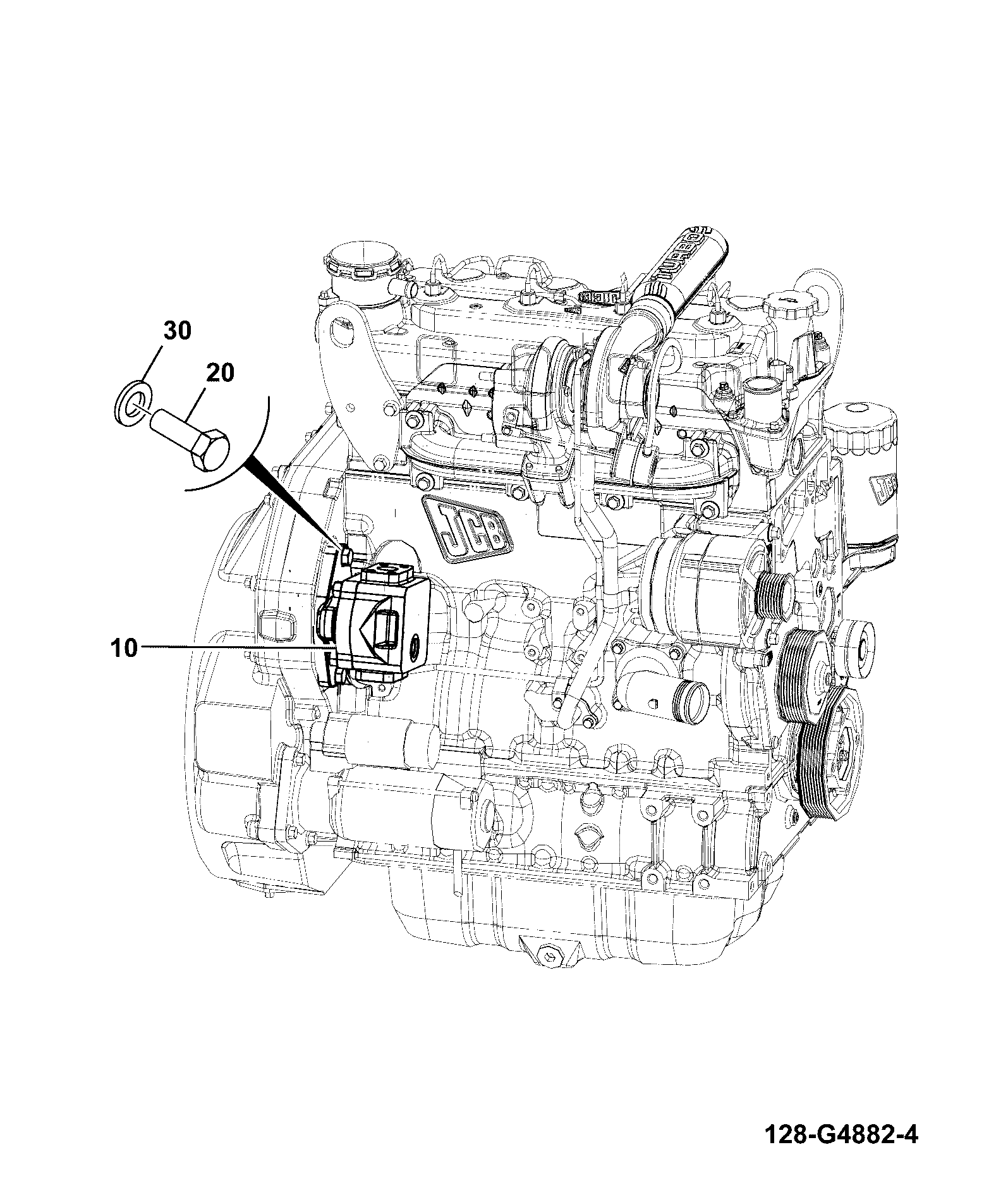

DIAG-E200-15-1-394793 E200-15-1 PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP ENGINE MOUNTED, 14CCR
View Diagram

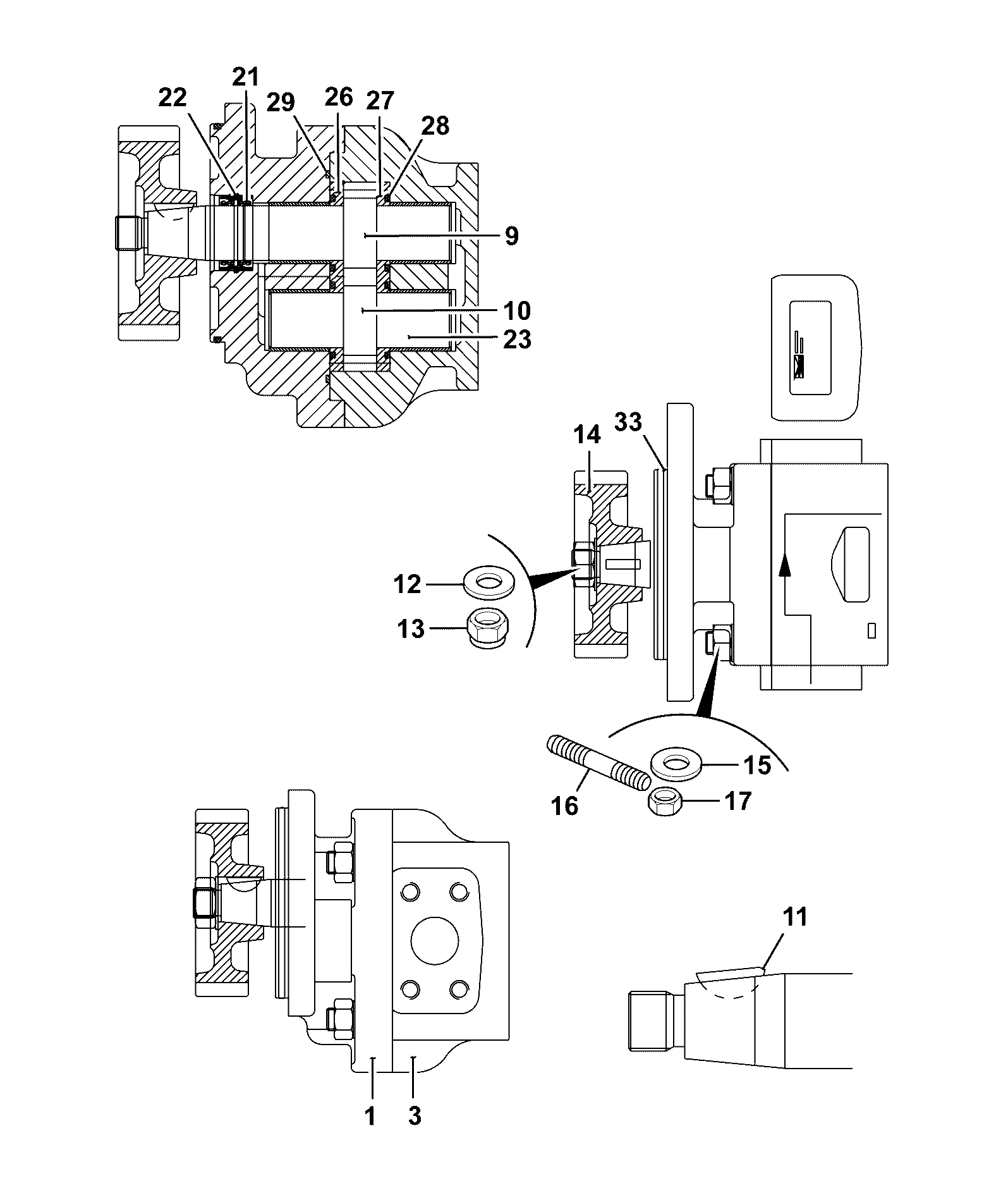

DIAG-E210-1-1-394793 E210-1-1 PUMPS GEAR COMPONENTS 14cc 275bar
View Diagram

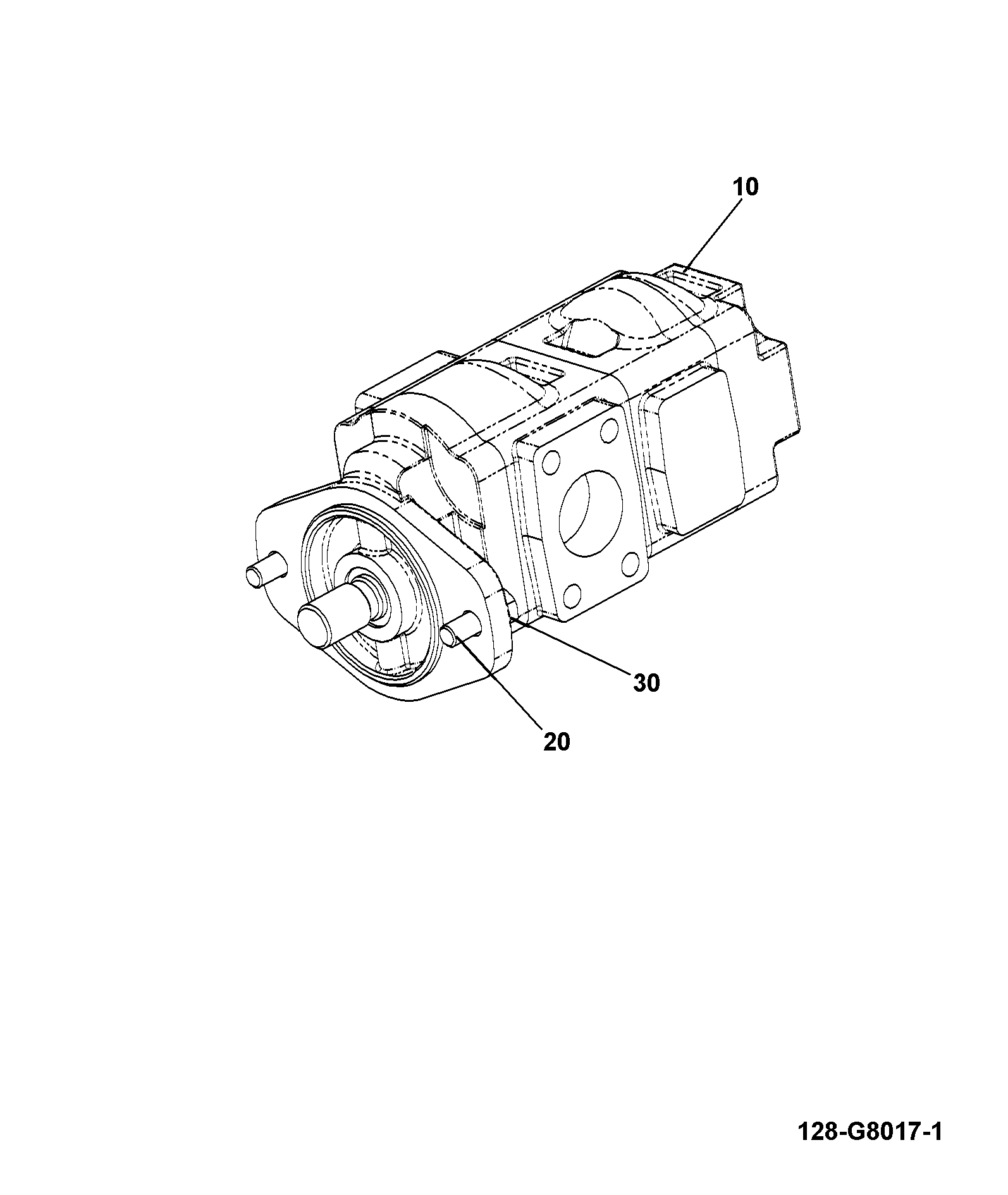

DIAG-E200-10-1-394793 E200-10-1 PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 33/23CCR
