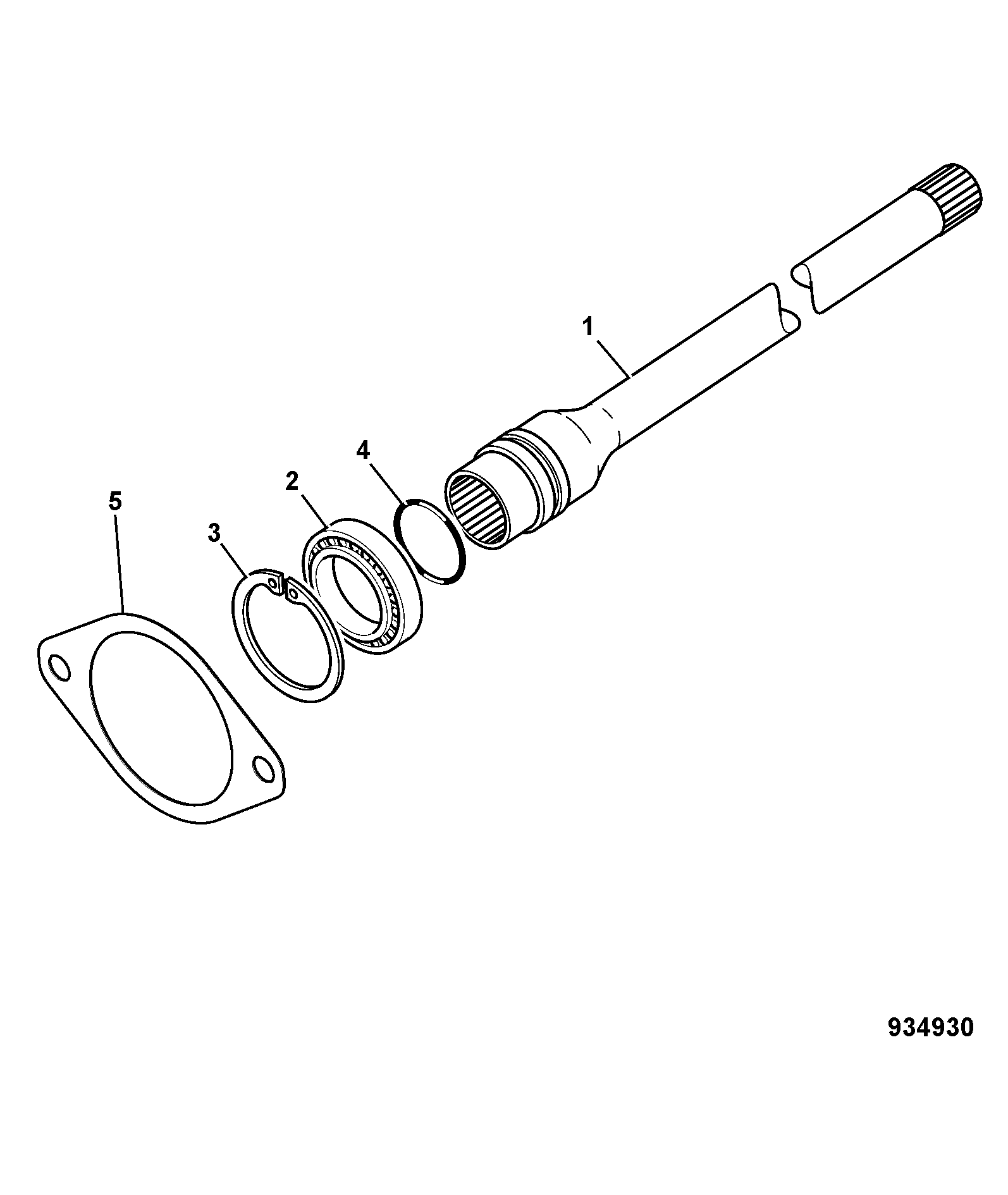

E205-1-1 PUMP COUPLING SYNCHROSHUTTLE TRANSMISSION Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	SHAFT PUMP DRV SS700 459/50431	1	AVAILABLE TO ORDER	$1,251.76	Quantity
2	BALL BEARING 916/10012	1	AVAILABLE TO ORDER	$38.76	Quantity
3	CIRCLIP 2203/1068	1	AVAILABLE TO ORDER	$0.78	Quantity
4	SEAL RING 40 DIA 904/20210	1	AVAILABLE TO ORDER	$30.44	Quantity
5	GASKET PUMP 813/10184	1	AVAILABLE TO ORDER	$1.73	Quantity

Showing 1 to 5 of 5 parts

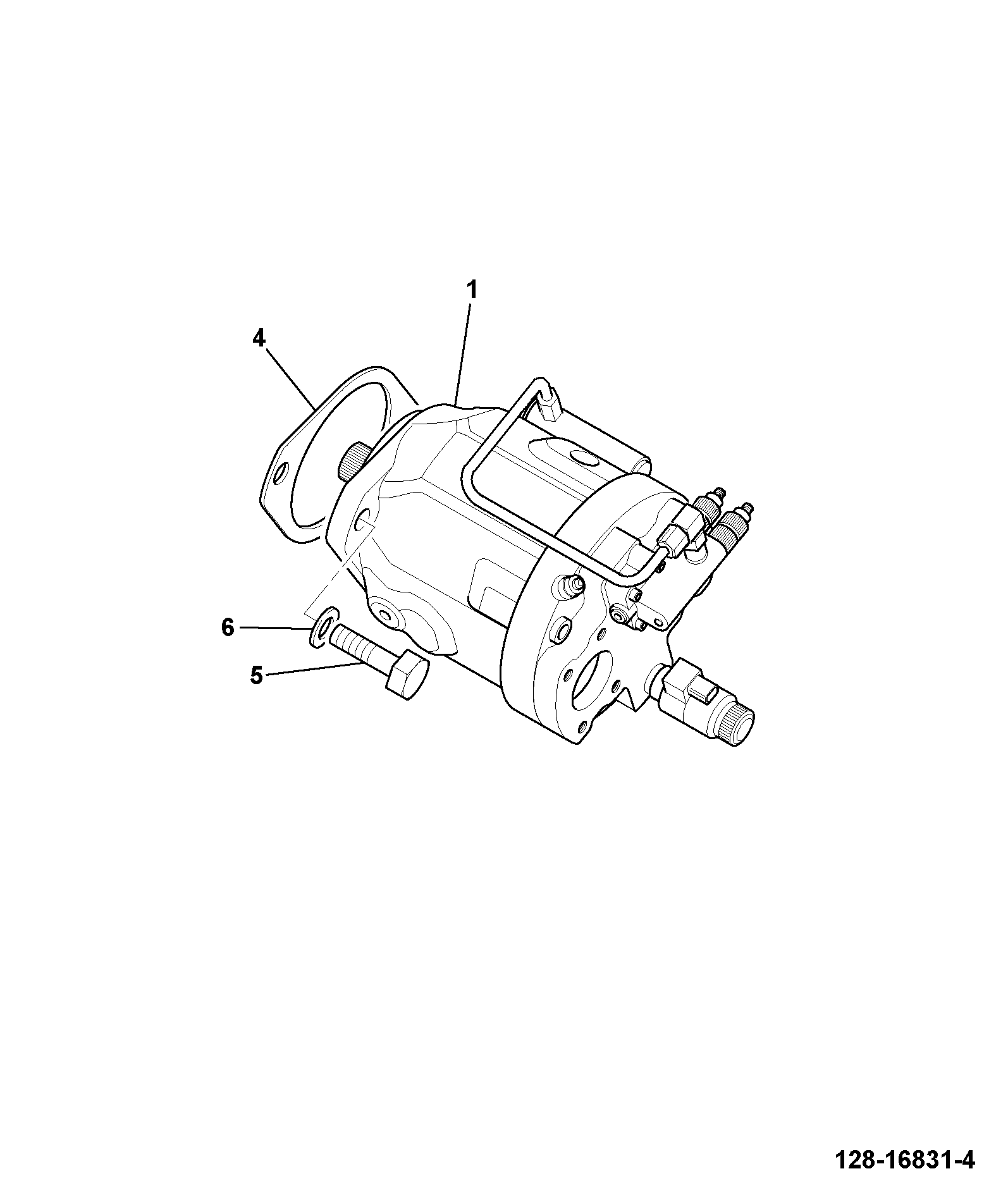

DIAG-E200-7-4-394832 E200-7-4 PUMP/MOTOR INSTALLATION ASSEMBLIES VARIFLOW PUMP 100HP ADVANCED EASY CONTROL
