Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | Rotary Group 336/C7540 | 1 | $2,255.26 | |||
| 3 | Rotary Group 400/09005 | 1 | $1,306.84 | |||
| 4 | PRESSURE SPRING 335/F7785 | 1 | $8.77 | |||
| 5 | STOP 335/F7786 | 1 | $47.04 | |||
| 6 | Drive Shaft 336/C7545 | 1 | $1,044.34 | |||
| 7 | SPRING 335/F7809 | 1 | $49.10 | |||
| 8 | ADJUSTMENT SHIM 335/F7810 | 1 | $26.37 | |||
| 9 | BEARING 20/952466 7222/30439 | 1 | $179.85 | |||
| 10 | BEARING 335/F7818 7222/30440 | 1 | $251.12 | |||
| 11 | FLAT HEAD SCREW 335/F7874 | 1 | $13.33 | |||
| 12 | SHAFT SEAL 335/C3363 20/950910 | 1 | $97.43 | |||
| 14 | Seal 332/C4795 | 1 | $11.75 | |||
| 15 | RETAINING RING 20/952479 7222/30447 | 1 | $33.34 | |||
| 16 | Socket-Head Screw 335/E9940 | 1 | $13.33 | |||
| 18 | CYLINDER PIN 335/F7918 | 1 | $13.16 | |||
| 20 | O-Ring 400/09833 | 1 | $59.59 | |||
| 21 | Valve assembly con 20/952513 | 1 | $1,579.93 | |||
| 22 | CONTROL VALVE 335/F7941 | 1 | $1,541.33 | |||
| 24 | O Ring 336/E5935 | 1 | $13.57 | |||
| 25 | O Ring 336/E5936 | 1 | $13.57 | |||
| 27 | Backup Ring 400/08981 | 1 | $11.25 | |||
| 29 | O Ring 336/E5937 | 1 | $40.05 | |||
| 32 | O-Ring 400/08984 | 1 | $13.69 | |||
| 33 | Screw Plug 400/08985 | 1 | $55.63 | |||
| 34 | Bonded Seal Ring 336/E5938 | 1 | $28.93 | |||
| 35 | Gasket 20/952311 | 1 | $72.07 | |||
| 36 | Screw socket head 20/952312 | 1 | $6.05 | |||
| 37 | Screw locking 20/952361 | 1 | $74.85 | |||
| 38 | Control Valve 400/01674 | 1 | $2,624.71 | |||
| 39 | Ring 335/E9968 | 1 | $52.60 | |||
| 40 | O-RING 335/C3364 7222/30444 | 1 | $22.52 | |||
| 42 | Screw 20/952486 | 1 | $72.66 | |||
| 44 | Nut 335/C3360 | 1 | $20.76 | |||
| 46 | O Ring O-Ring 335/C3362 | 1 | $11.75 | |||
| 47 | Socket head screw 334/H1455 | 1 | $8.02 | |||
Showing 1 to 35 of 35 parts
Related Assemblies
-

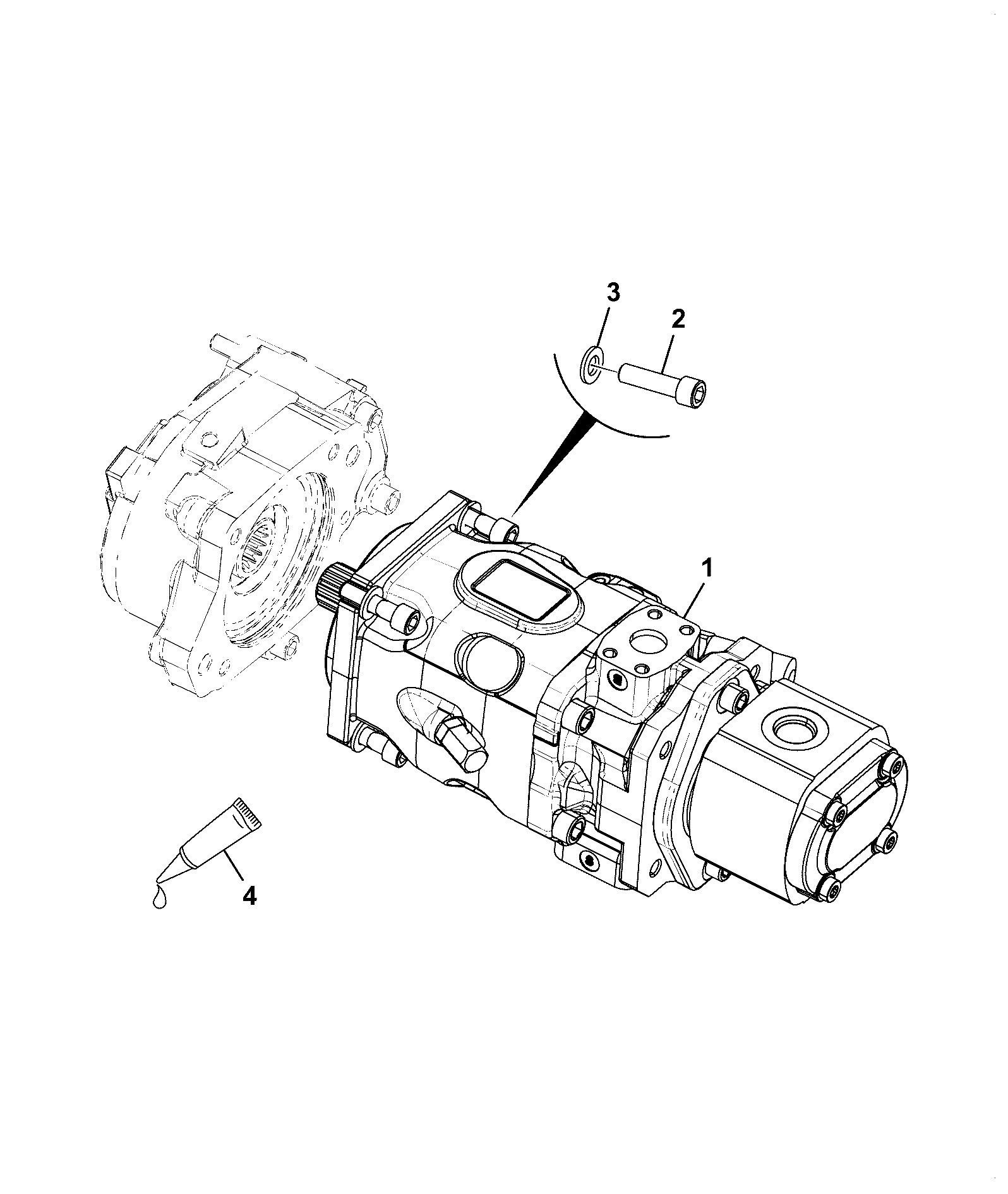

DIAG-E200-5-1-394802 E200-5-1 PUMP/MOTOR INSTALLATION ASSEMBLIES PUMP VFLO 63/28cc
View Diagram -
DIAG-E205-5-1-394802 E205-5-1 PUMP COUPLING SYNCHROSHUTTLE TRANSMISSION OCVP, T4i
View Diagram -
DIAG-E200-1-1-394802 E200-1-1 PUMP/MOTOR INSTALLATION ASSEMBLIES PUMP 63/28CC, MARBLE
View Diagram
