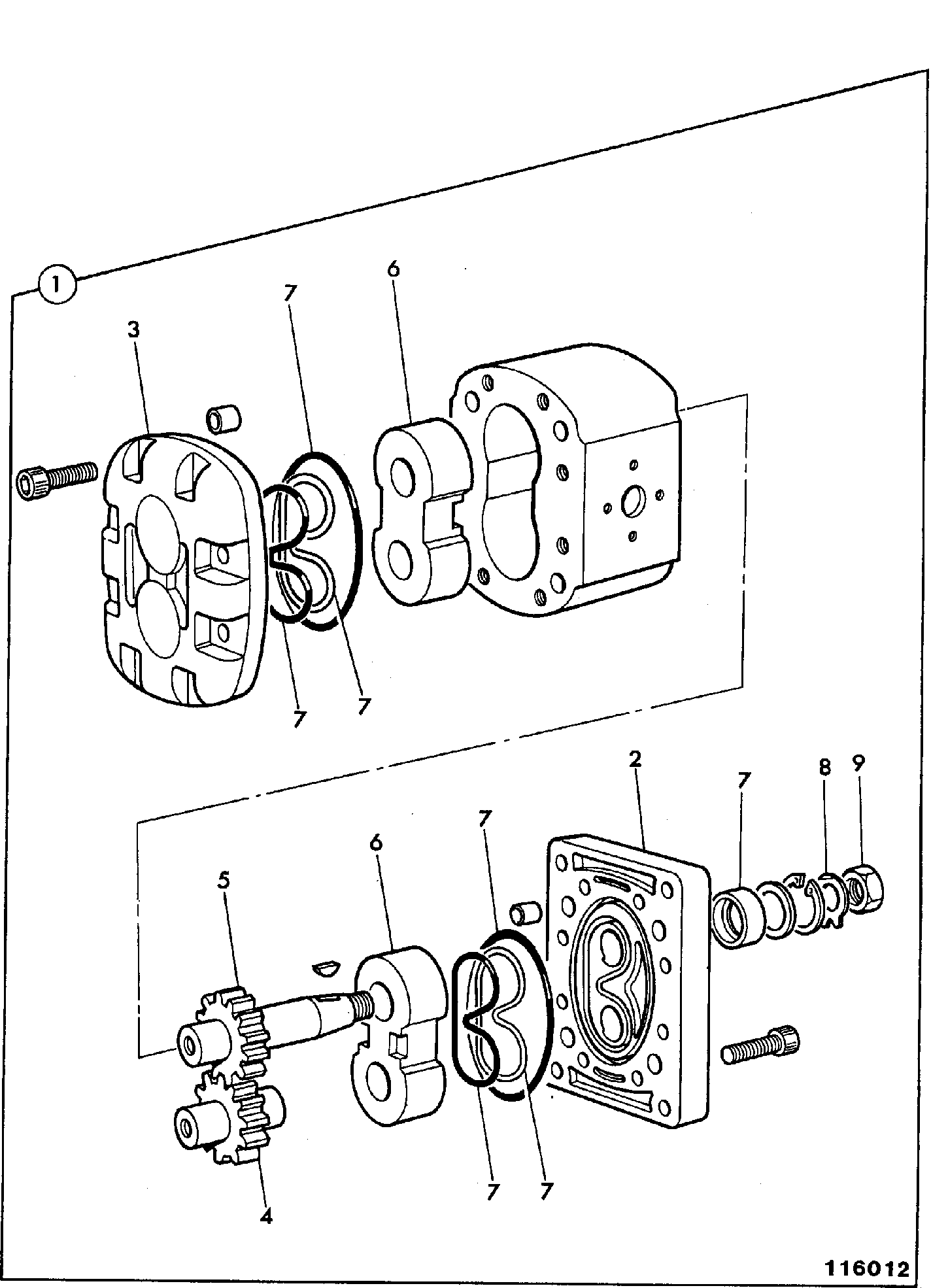

E2-5-3 MOTOR, FAN DRIVE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	FAN DRIVE MOTOR 8.4CC 20/905500 332/T1886	1	AVAILABLE TO ORDER	$971.23	Quantity
2	KIT - SEAL 20/905501 20/951234	1	AVAILABLE TO ORDER	$500.47	Quantity
3	SEAL KIT-FAN MOTOR 20/902001	1	AVAILABLE TO ORDER	$232.85	Quantity

Showing 1 to 3 of 3 parts

DIAG-E2-5-1-400160 E2-5-1 MOTOR, FAN DRIVE
View Diagram

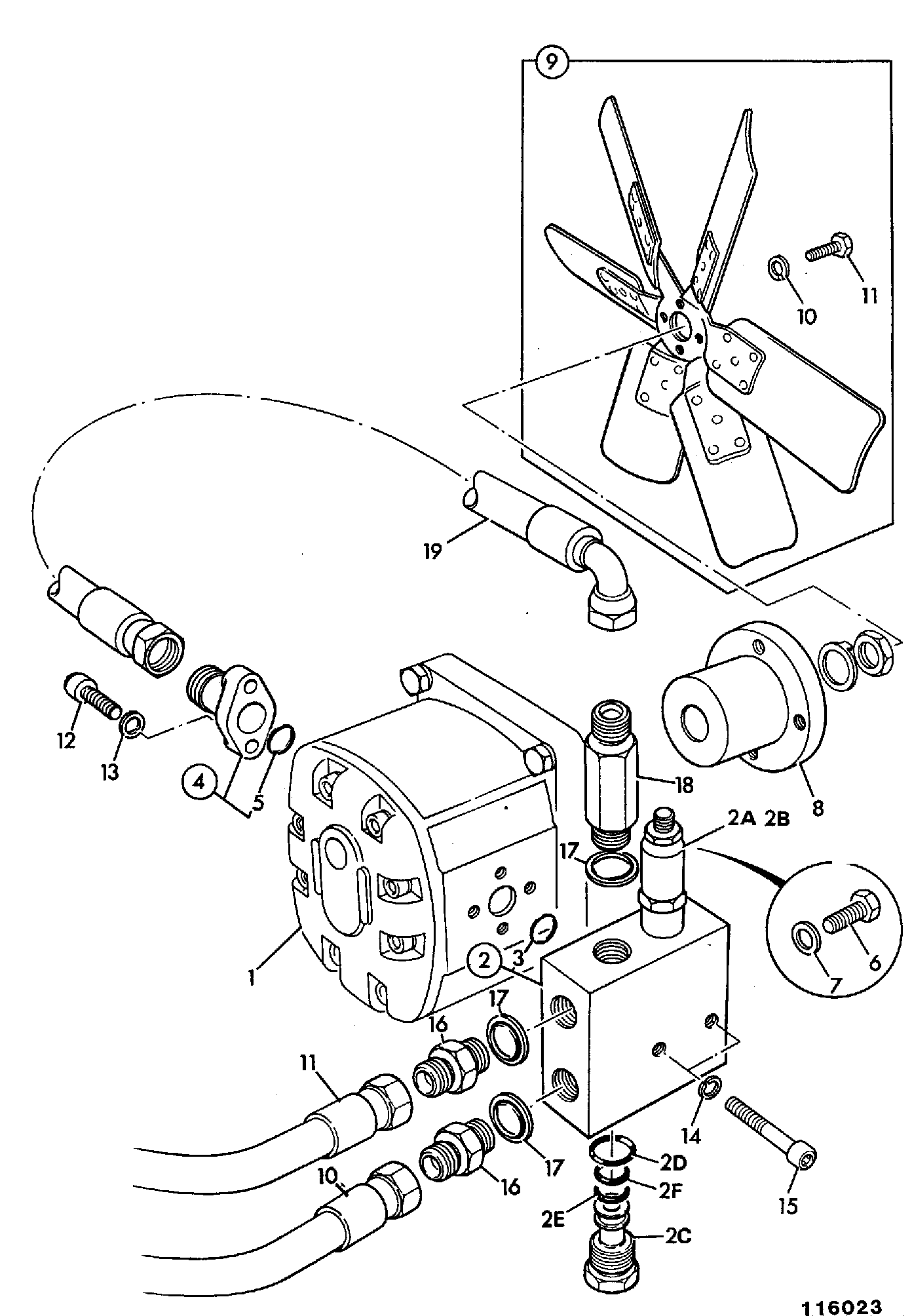

DIAG-E2-6-1-400160 E2-6-1 MOTOR, FAN DRIVE INSTALLATION
View Diagram

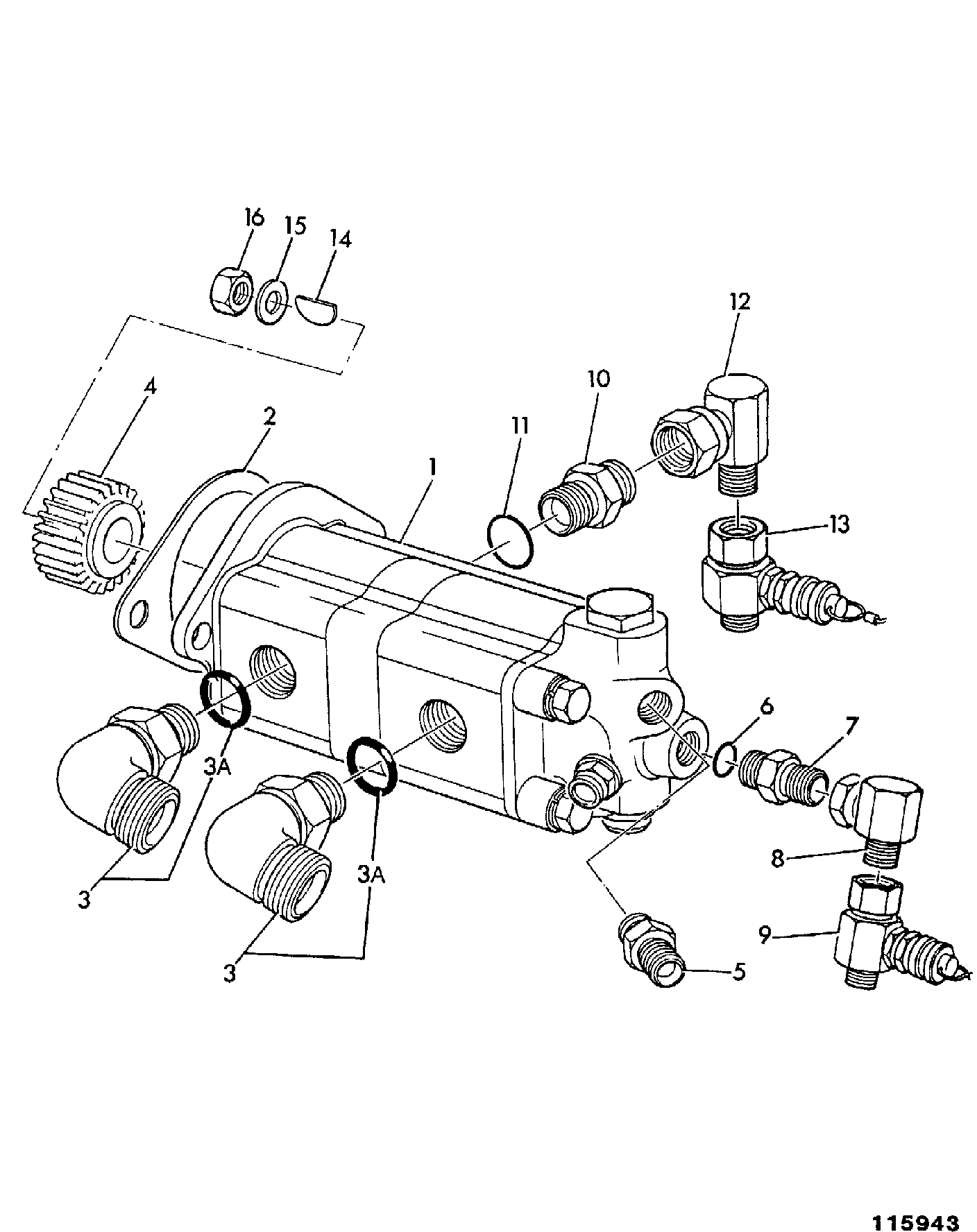

DIAG-E2-4-1-400160 E2-4-1 PUMP, STEERING & FAN DRIVE ADAPTERS & DRIVE GEAR
