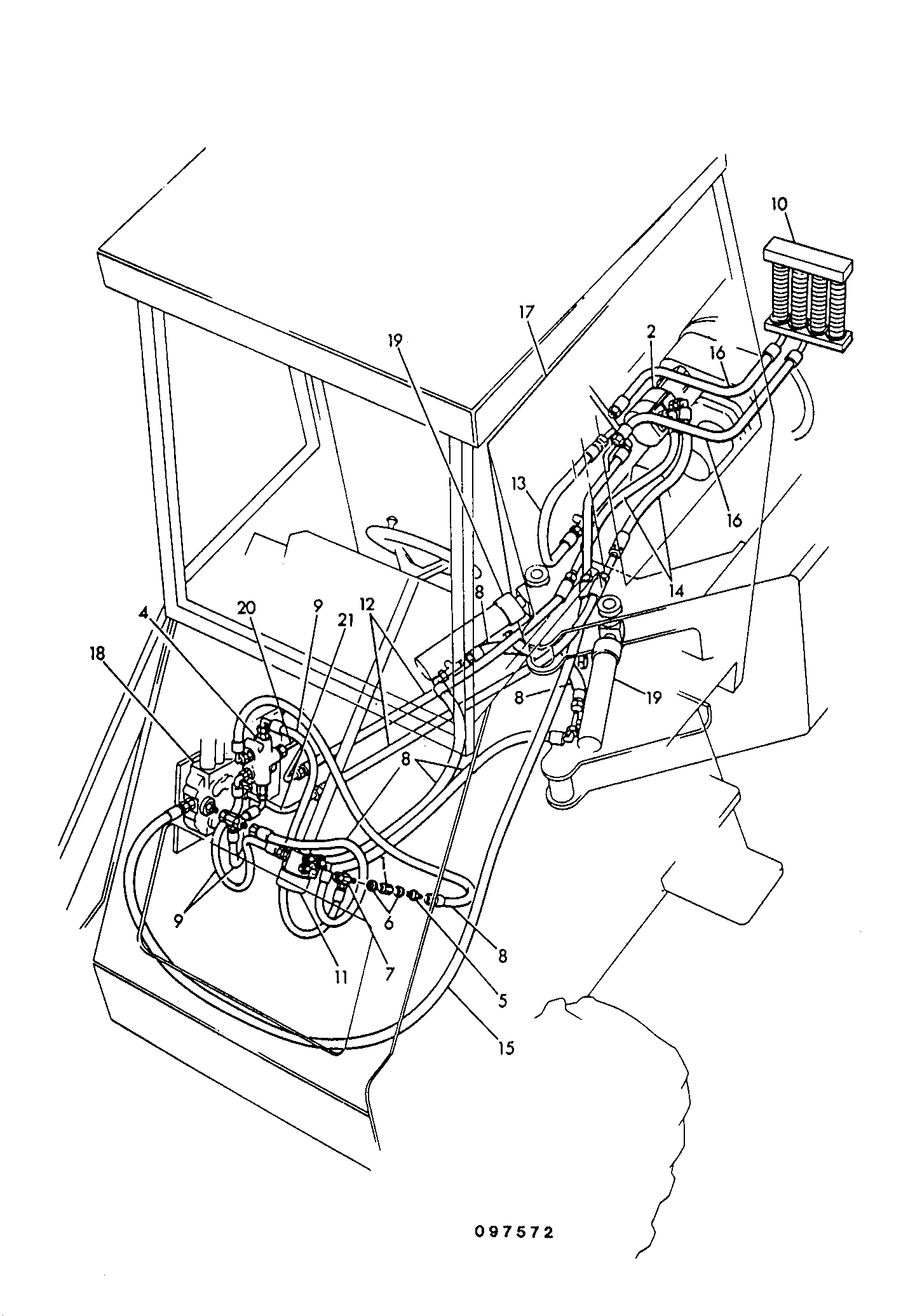

E2-5-1 PUMP, MAIN HYDRAULIC Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	PUMP 919/72000	1	AVAILABLE TO ORDER	$4,260.70	Quantity
5	KIT, SEAL HYD PUMP - SINGLE 920/01647	1	AVAILABLE TO ORDER	$205.98	Quantity
9	PLUG 920/00160	1	AVAILABLE TO ORDER	$7.13	Quantity
12	WASHER 920/00967	1	AVAILABLE TO ORDER	$3.73	Quantity
15	COUPLING 920/01658	1	AVAILABLE TO ORDER	$453.30	Quantity
17	SCREW 920/00675	1	AVAILABLE TO ORDER	$10.01	Quantity

Showing 1 to 6 of 6 parts

DIAG-E1-5-5-404653 E1-5-5 HOSE & PIPEWORK EMERGENCY STEERING
View Diagram
DIAG-E2-5-2-404653 E2-5-2 PUMP, MAIN HYDRAULIC FITTINGS & ADAPTERS
View Diagram
DIAG-E1-5-4-404653 E1-5-4 HOSE & PIPEWORK MAIN & STEERING
View Diagram

Previous Assembly DIAG-E1-5-5-404653 E1-5-5 HOSE & PIPEWORK EMERGENCY STEERING Next Assembly DIAG-E2-5-2-404653 E2-5-2 PUMP, MAIN HYDRAULIC FITTINGS & ADAPTERS
