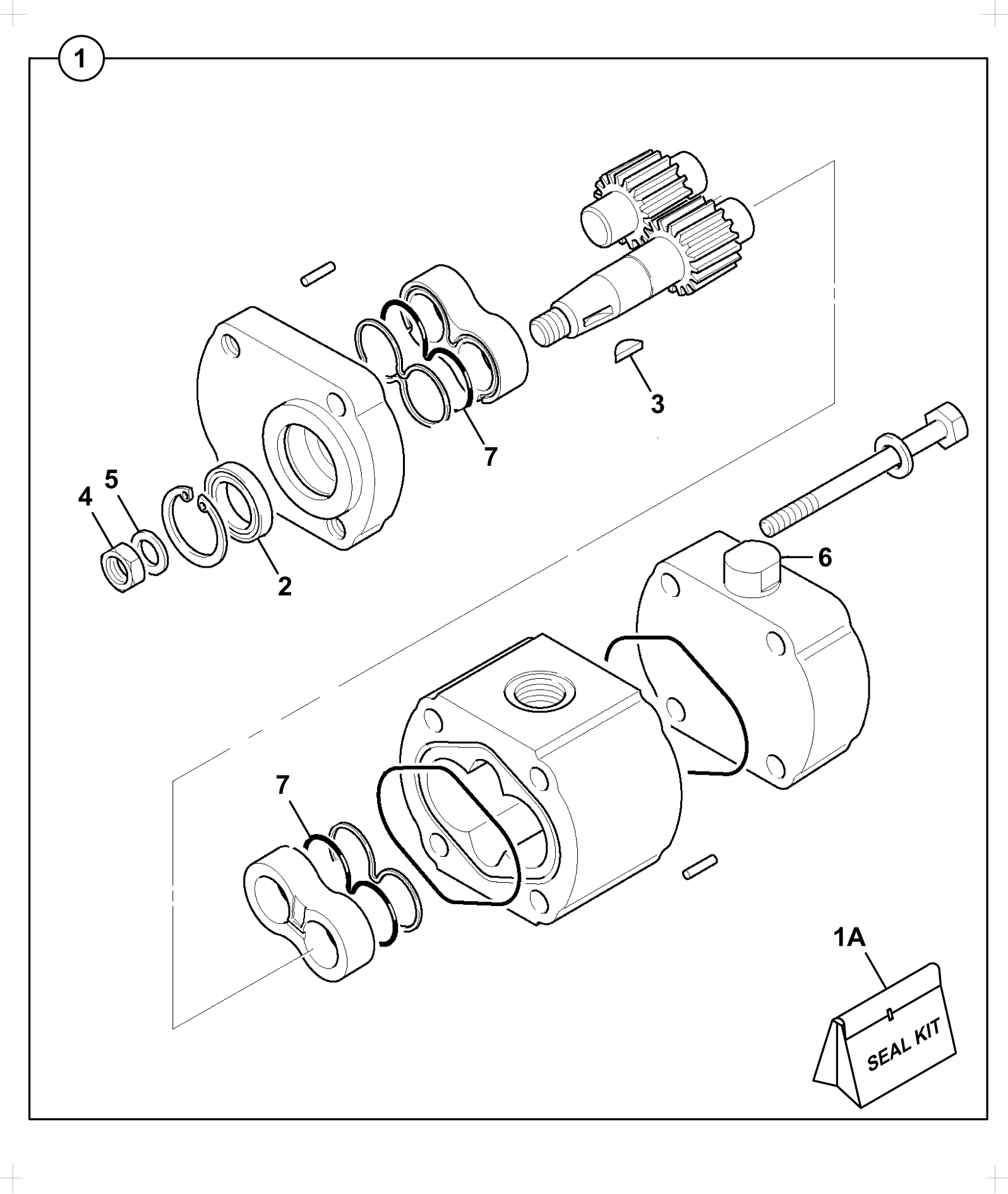

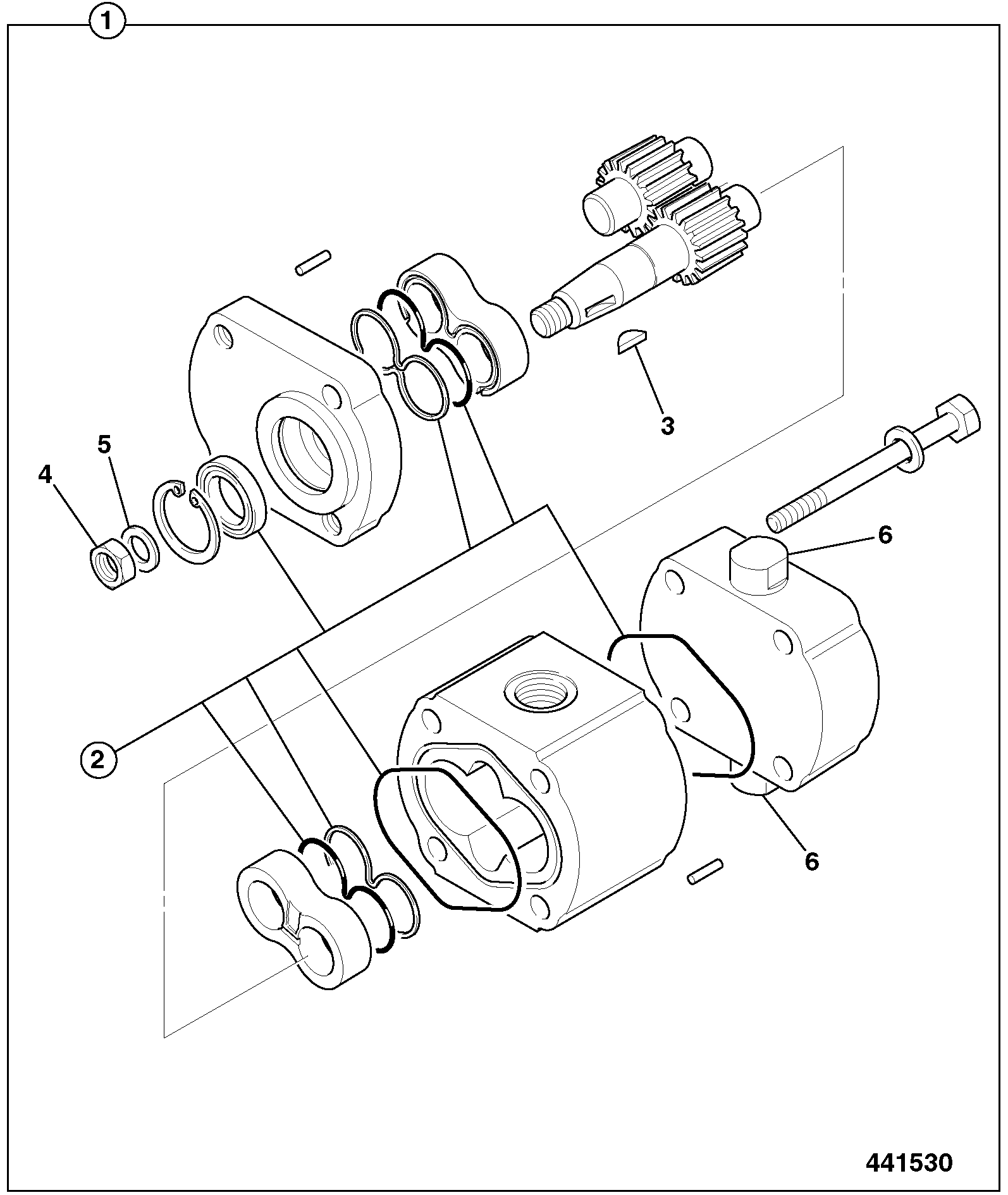

E2-5-1 MOTOR FAN DRIVE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	KIT-CONVERSION 20/902003	1	AVAILABLE TO ORDER	$29.90	Quantity
1	FAN MOTOR 20/915500	1	AVAILABLE TO ORDER	$2,285.39	Quantity
2	SEAL KIT-FAN MOTOR 20/902001	1	AVAILABLE TO ORDER	$232.85	Quantity

Showing 1 to 3 of 3 parts
