Scroll to zoom Click a part # to view details

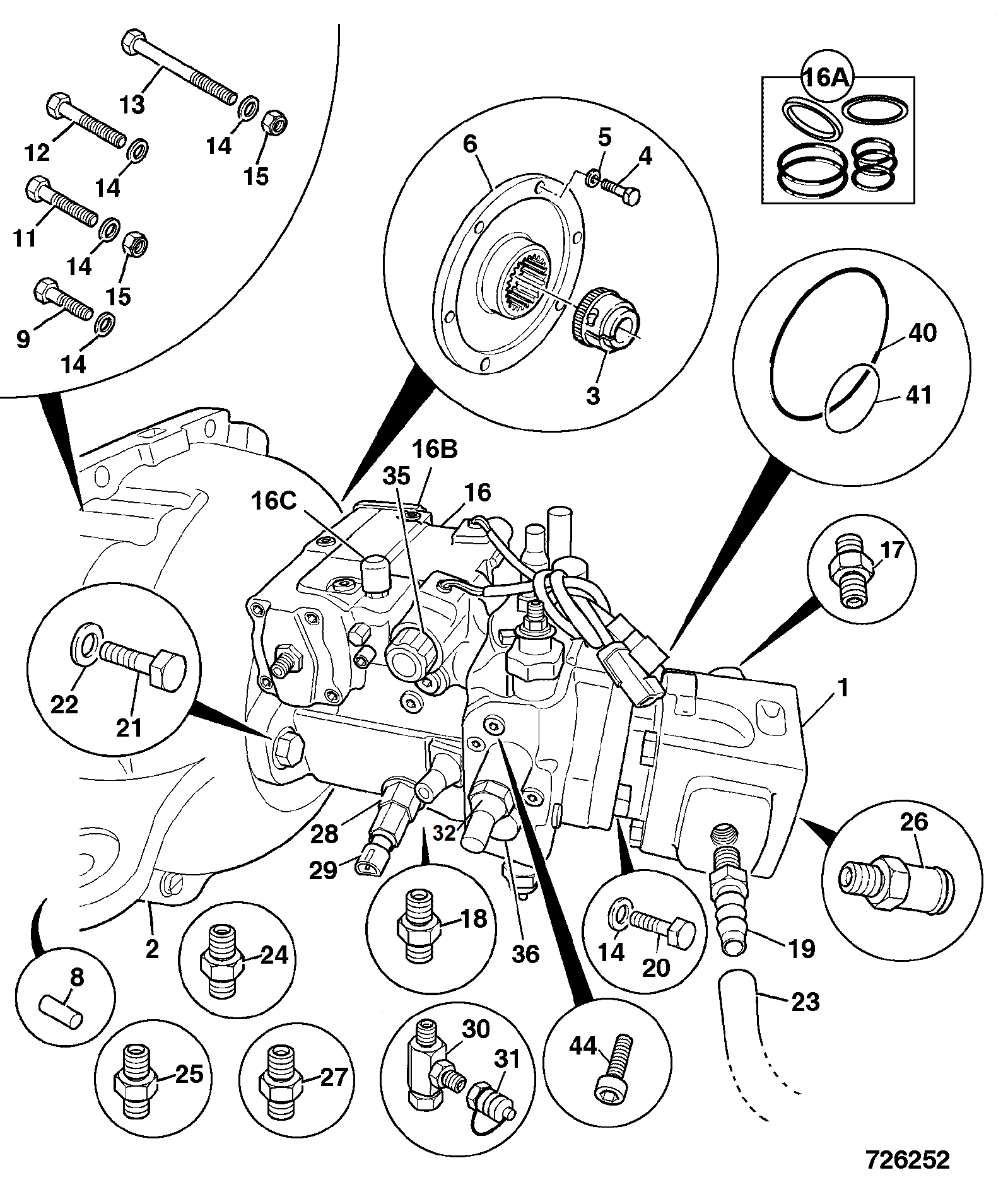

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Coupling coupling 332/F3473 | 1 | $4,058.63 | ||||
| SEAL KIT 20/950760 | 1 | $590.89 | ||||
| 1 | PUMP GEAR 37CC 20/925499 | 1 | $2,268.65 | |||
| 3 | DRIVE COUPLING 331/64134 | 1 | $558.41 | |||
| 4 | BOLT M8x35 1315/3309D | 1 | $0.89 | |||
| 5 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 6 | DRIVE, FLANGE 331/59807 | 1 | $230.20 | |||
| 8 | DOWEL 02/101370 | 1 | $19.27 | |||
| 9 | BOLT M12x40 1315/3510Z | 1 | $4.66 | |||
| 11 | M12 X 60 BOLT 1315/3514Z | 1 | $10.29 | |||
| 12 | BOLT M12x70 1315/3516D | 1 | $2.21 | |||
| 13 | BOLT M12x110 1315/3521Z | 1 | $7.62 | |||
| 14 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
| 15 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | |||
| 16 | PUMP, TRANSMISSION 20/925496 | 1 | $9,000.08 | |||
| 16A | KIT - DRIVE PUMP 20/952068 | 1 | $1,215.21 | |||
| 16B | Kit Seal 332/D8657 | 1 | $886.14 | |||
| 17 | ADAPTOR G5/8A-1-1/16UNF(M) 1620/0008 1620/2057 | 1 | $25.23 | |||
| 18 | ADAPTOR G3/4A-1-1/16UNF(M 1620/0010 1620/2059 | 1 | $14.30 | |||
| 19 | HOSE ADAPTOR 816/60232 | 1 | $75.13 | |||
| 20 | SET-SCREW M12 L-_30mm 1315/0508D | 1 | $4.54 | |||
| 21 | BOLT M16x60 1315/3714D | 1 | $11.03 | |||
| 22 | HARDENED WASHER M16 823/00603 | 1 | $9.17 | |||
| 23 | HOSE SET UP 649/45300 | 1 | $53.19 | |||
| 24 | ADAPTOR (M/M) 816/90282 | 1 | $24.00 | |||
| 25 | ADAPTOR G1/2A-3/4UNF(M) 1620/2054 | 1 | $37.26 | |||
| 26 | Adapter 1-7/8" - 1 816/90673 | 1 | $31.27 | |||
| 27 | ADAPTOR (M/M) 816/90281 332/S1890 | 1 | $4.83 | |||
| 28 | ADPT HYD OIL TEMP SWITCH 816/25056 | 1 | $12.55 | |||
| 29 | SWITCH oil temperature 701/80324 | 1 | $52.39 | |||
| 30 | 0EE ADAPTOR 816/90512 | 1 | $23.83 | |||
| 31 | 'Adapter Pressure Test Point 9/16-18UNF 45/908000 | 1 | $132.58 | |||
| 35 | SOLENOID C/W LEAD 716/30281 | 1 | $1,323.68 | |||
| 36 | VALVE 20/950916 | 1 | $1,495.14 | |||
| 40 | O RING LARGE GEAR 828/10322 983/11122 | 1 | $25.23 | |||
| 41 | O RING SMALL GEAR 983/11123 | 1 | $16.96 | |||
| 44 | Plug 7/16-20-NBR 334/E6197 | 1 | $37.59 | |||
Showing 1 to 37 of 37 parts
Related Assemblies
-
DIAG-E2-4-1-400577 E2-4-1 PUMP MAIN HYDRAULIC
View Diagram -
DIAG-E2-4-1-400577-12837063 E2-4-1 PUMP MAIN HYDRAULIC
View Diagram -

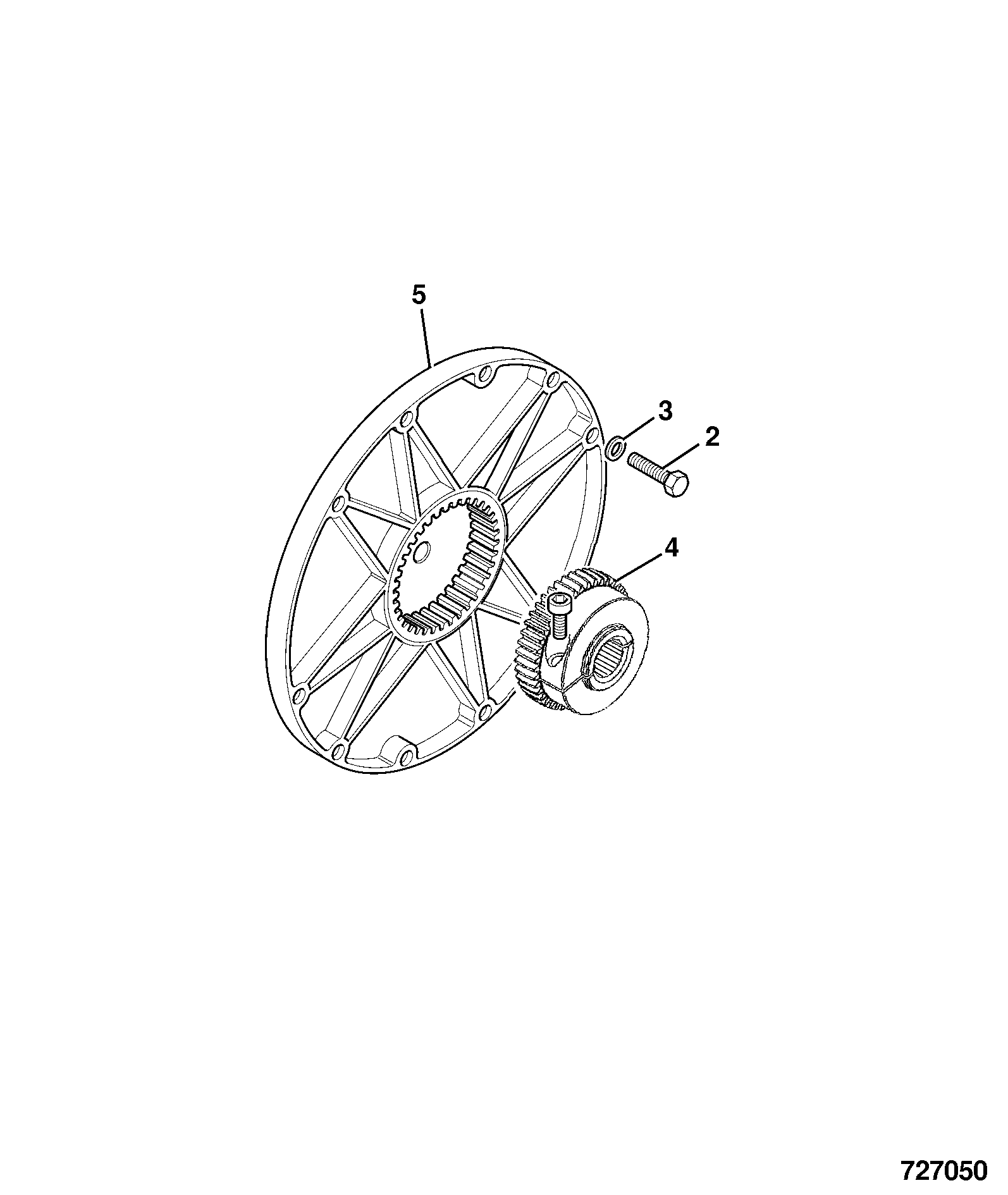

DIAG-E2-3-2-400577 E2-3-2 DRIVE COUPLING JCB ENGINE
View Diagram
