Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | Adapter block 933/20014 | 1 | $84.96 | |||
| 3 | Setscrew 1305/1822D | 1 | $2.83 | |||
| 4 | WASHER.SPRING.7/16".HEAVY 823/00390 | 1 | $0.81 | |||
| 5 | ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055 | 1 | $4.51 | |||
| 6 | O-RING - 32.51 x 3.81 PU9 828/00417 828/00021 | 1 | $25.21 | |||
| 7 | ADAPTOR G3/4A-1-1/16UNF(M 1620/0010 1620/2059 | 1 | $14.30 | |||
| 8 | ADAPTOR G5/8Ax7/8SAE 1620/0007 1620/2056 | 1 | $12.58 | |||
| 9 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 10 | ADAPTOR F/F 90 816/90266 | 1 | $9.78 | |||
| 11 | 'Adapter Pressure Test Point 9/16-18UNF 45/908000 | 1 | $132.58 | |||
| 11A | O-RING 2401/0505 | 1 | $2.54 | |||
| 12 | HOSE ADAPTOR 816/60232 | 1 | $75.13 | |||
| 12A | O-RING 2401/0510 | 1 | $1.46 | |||
| 13 | ADAPTER 232/40401 | 1 | $13.39 | |||
| 13A | O-RING 2401/0508 | 1 | $3.28 | |||
| 14 | Adapter 4 way 816/90258 | 1 | $39.84 | |||
| 16 | Screw 1305/1907Z | 1 | $5.48 | |||
| 17 | WASHER 1/2" MEDIUM 1411/0005D | 1 | $0.89 | |||
| 20 | ADAPTOR M/CING. 816/60249 | 1 | $49.59 | |||
| 20A | O RING 2401/0511 | 1 | $16.19 | |||
| 21 | ADAPTOR G3/4A X 7/8 SAE 1620/2058 | 1 | $5.52 | |||
| 21A | 'O' RING (P564) 2401/0507 | 1 | $1.46 | |||
| 23 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 23A | O-RING 2401/0506 | 1 | $1.46 | |||
| 24 | ADAPTOR G1/4A-7/16UNF(M) 1620/2050 | 1 | $2.60 | |||
| 24A | O-RING 2401/0503 | 1 | $0.54 | |||
| 27 | TEMPERATURE SWITCH - OIL 701/80363 | 1 | $181.82 | |||
| 32 | ADAPTOR -TEE 816/90262 | 1 | $82.25 | |||
| 33 | 2 WAY AMP JT TO DEUTSCH D 721/10763 | 1 | $39.86 | |||
| 34 | COUPLING 331/43330 | 1 | $454.16 | |||
| 35 | COUPLING PUMP 45/914400 | 1 | $422.07 | |||
| 36 | CAP SCREW M10x35 (P960) 1391/3409D | 1 | $4.90 | |||
| 36 | CAPSCREW TLTe (P524) 1391/3412D | 1 | $2.40 | |||
| 37 | WASHER LOCK M10 823/10261 | 1 | $5.93 | |||
| 39 | WASHER 823/00557 | 1 | $11.32 | |||
| 40 | SET SCREW M12x35 1315/0509Z | 1 | $2.20 | |||
| 41 | O RING 20/205672 | 1 | $13.54 | |||
| 41A | O RING SEAL 813/00453 | 1 | $7.89 | |||
| 47 | HOSE 612/35300 | 1 | $47.04 | |||
| 49 | Valve check 25/223118 | 1 | $111.42 | |||
| 50 | PUMP MOUNTING END PLATE 332/S2086 | 1 | $1,730.49 | |||
Showing 1 to 41 of 41 parts
Related Assemblies
-

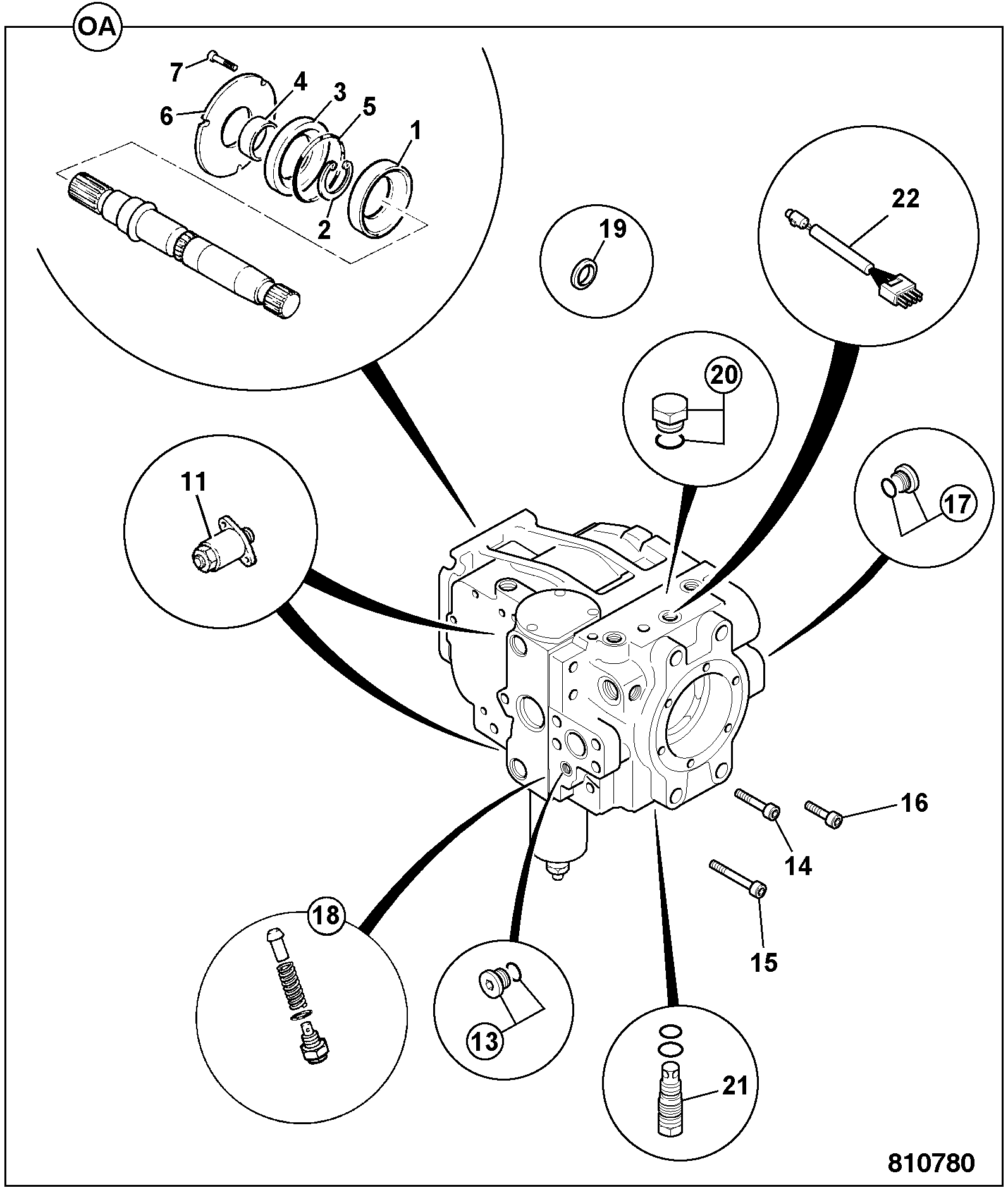

DIAG-E2-5-1-397233 E2-5-1 PUMP COMPONENTS HYDROSTATIC ASSEMBLY PUMP IDENTIFICATION NO. 521 061
View Diagram -

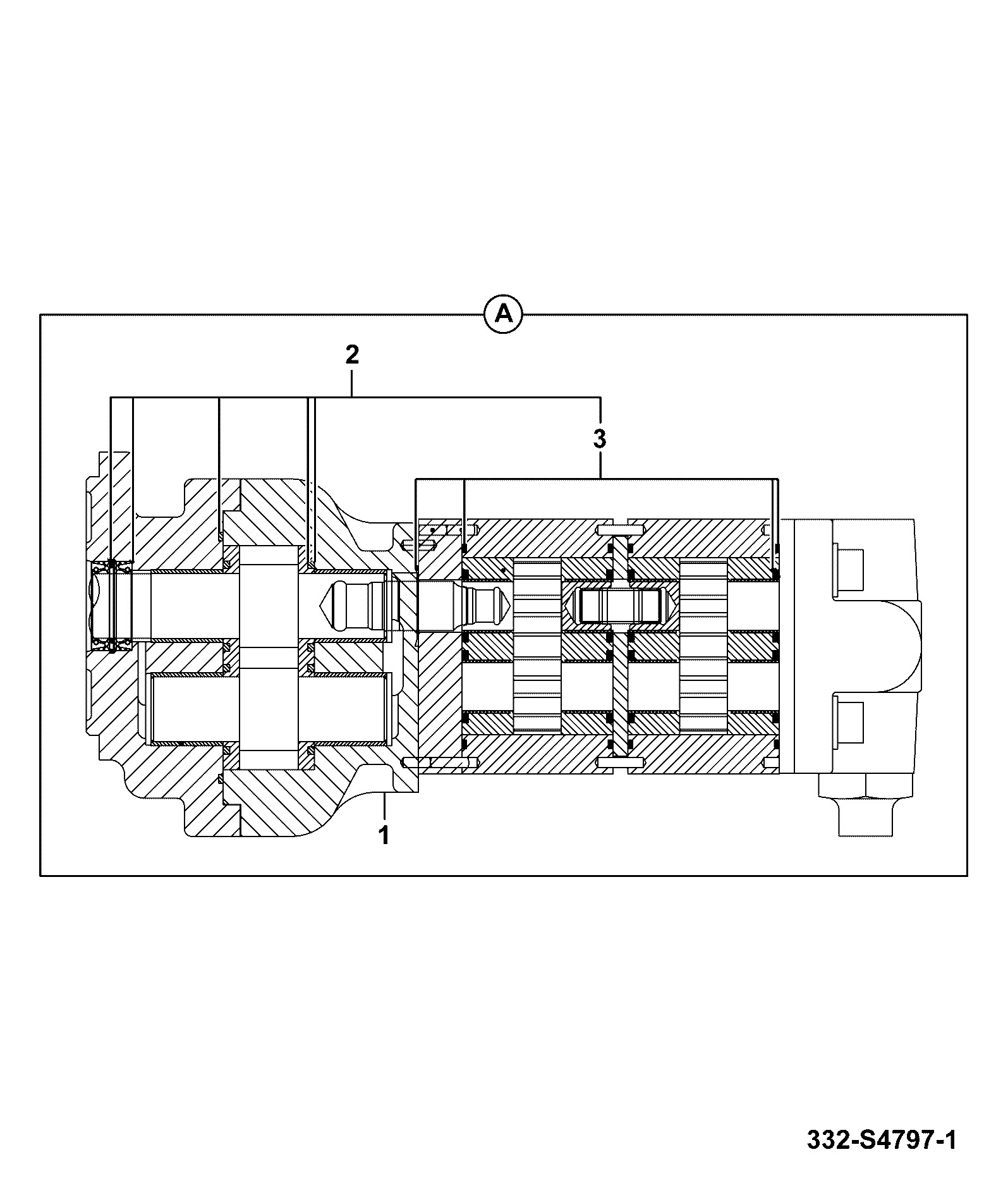

DIAG-E2-10-1-397233 E2-10-1 PUMP COMPONENTS HYDRAULIC 2WD TRIPLE
View Diagram -

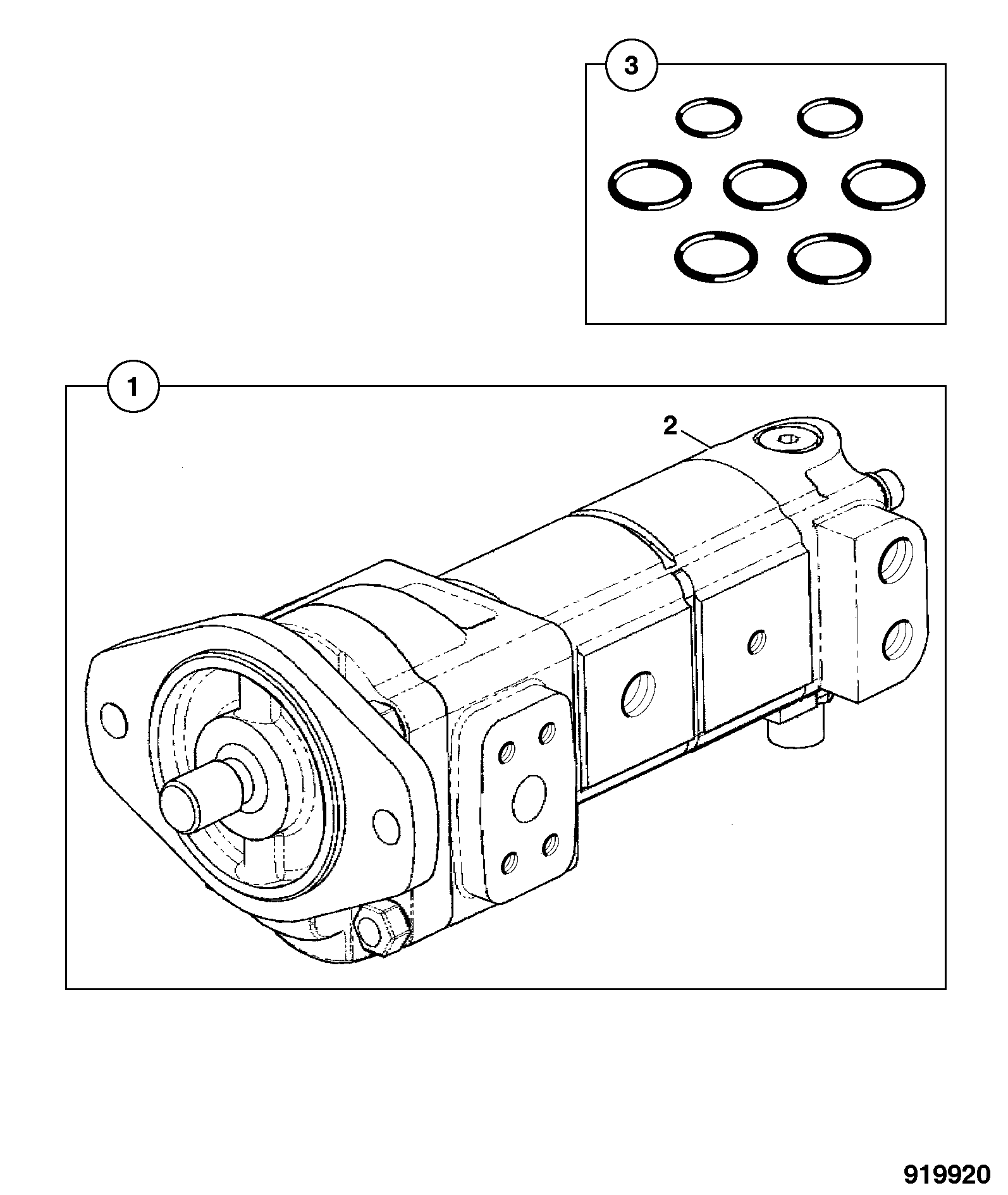

DIAG-E2-11-1-397233 E2-11-1 PUMP COMPONENTS TRIPLE, 2WD
