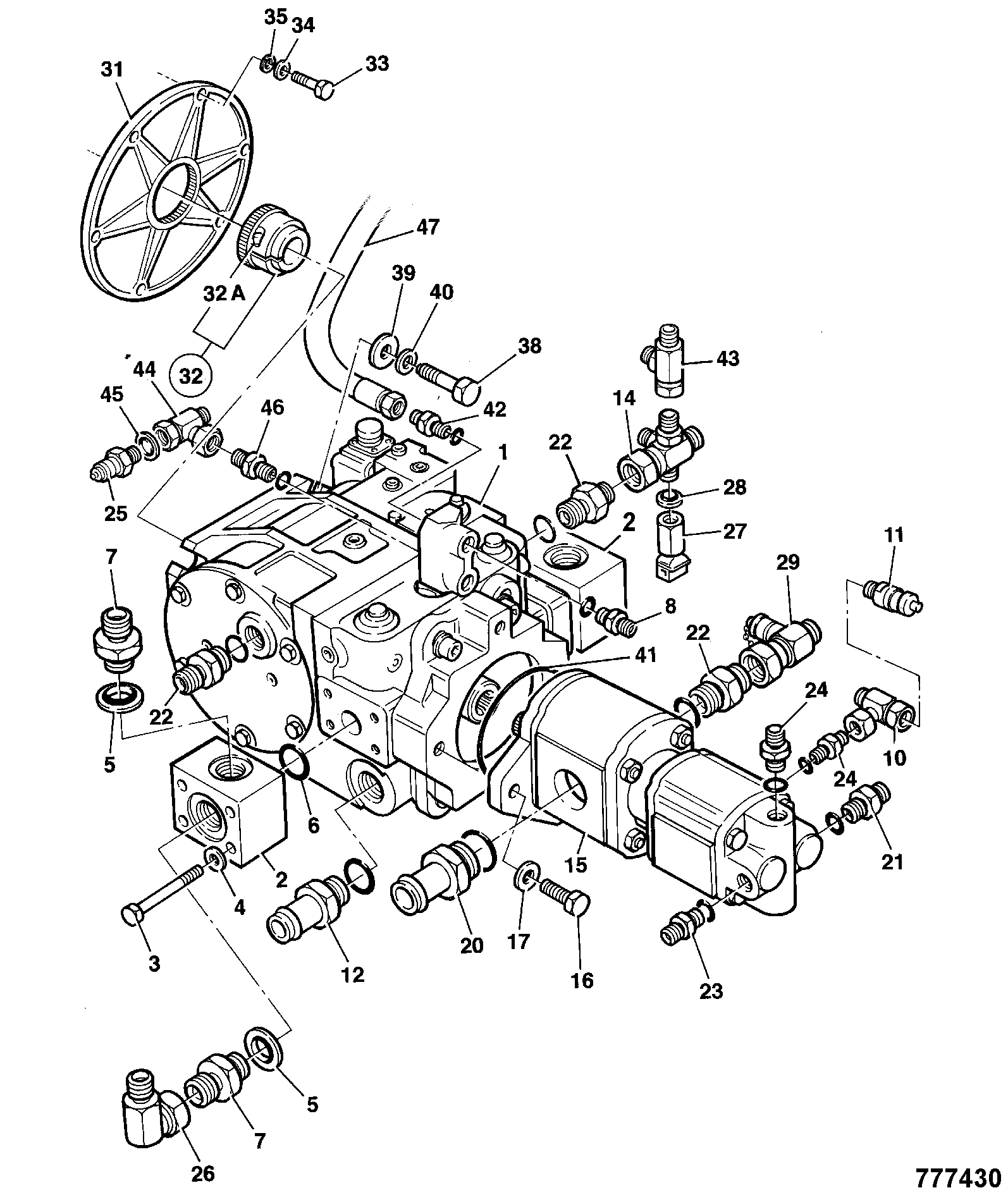

E2-3-7 MOTOR DRIVE TCR 2WD KIT SEAL, DRIVE MOTOR Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Kit Seals 998/11356	1	AVAILABLE TO ORDER	$1,161.92	Quantity
2	Kit Seals 998/11357	1	AVAILABLE TO ORDER	$611.88	Quantity
3	Seal Kit Bearing Support 333/F1477	1	AVAILABLE TO ORDER	$588.29	Quantity
4	Cam O-Ring Kit 335/C9096 400/25414	1	AVAILABLE TO ORDER	$143.14	Quantity
5	Seal 333/F1480	1	AVAILABLE TO ORDER	$583.19	Quantity
6	Seal 333/F1478	1	AVAILABLE TO ORDER	$386.16	Quantity

Showing 1 to 6 of 6 parts
