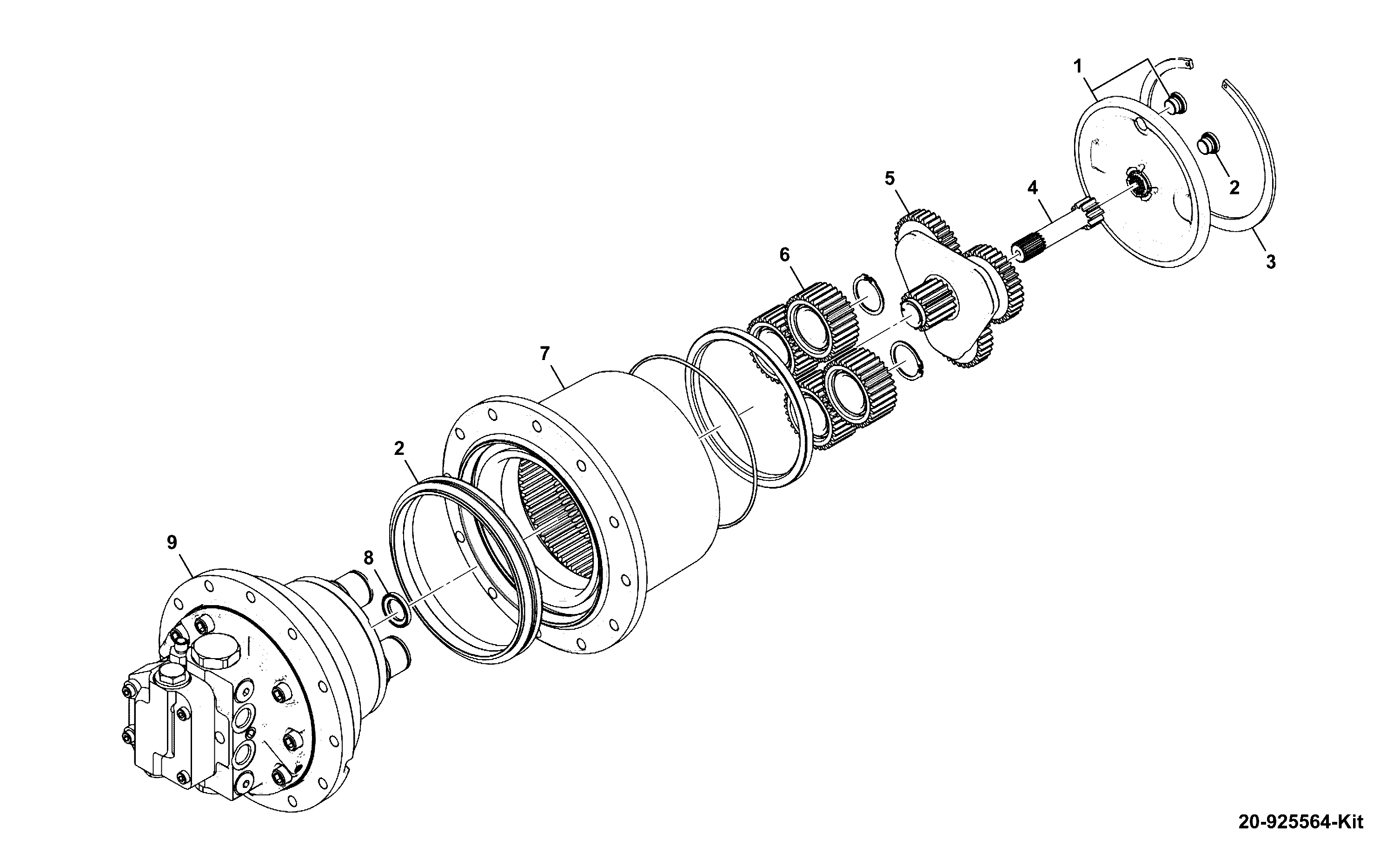

E2-3-4 MOTOR SLEW Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	MOTOR SLEW WITH BR 20/925321	1	AVAILABLE TO ORDER	$5,569.81	Quantity
2	ADAPTER 1/2" ST MALE KNJ0604 334/L0979	1	AVAILABLE TO ORDER	$16.52	Quantity
3	Elbow Adaptor KHJ0344 334/L6548	1	AVAILABLE TO ORDER	$21.74	Quantity
4	ELBOW ADAPTOR 1/4 334/L6662	1	AVAILABLE TO ORDER	$9.46	Quantity

Showing 1 to 4 of 4 parts

DIAG-E2-3-1-398178 E2-3-1 MOTOR SLEW ASSEMBLY
View Diagram
DIAG-E2-4-0-398178 E2-4-0 TRACK MOTOR .
View Diagram
DIAG-E2-2-1-398178 E2-2-1 PUMP COUPLING
View Diagram

Previous Assembly DIAG-E2-3-1-398178 E2-3-1 MOTOR SLEW ASSEMBLY Next Assembly DIAG-E2-4-0-398178 E2-4-0 TRACK MOTOR .
