Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

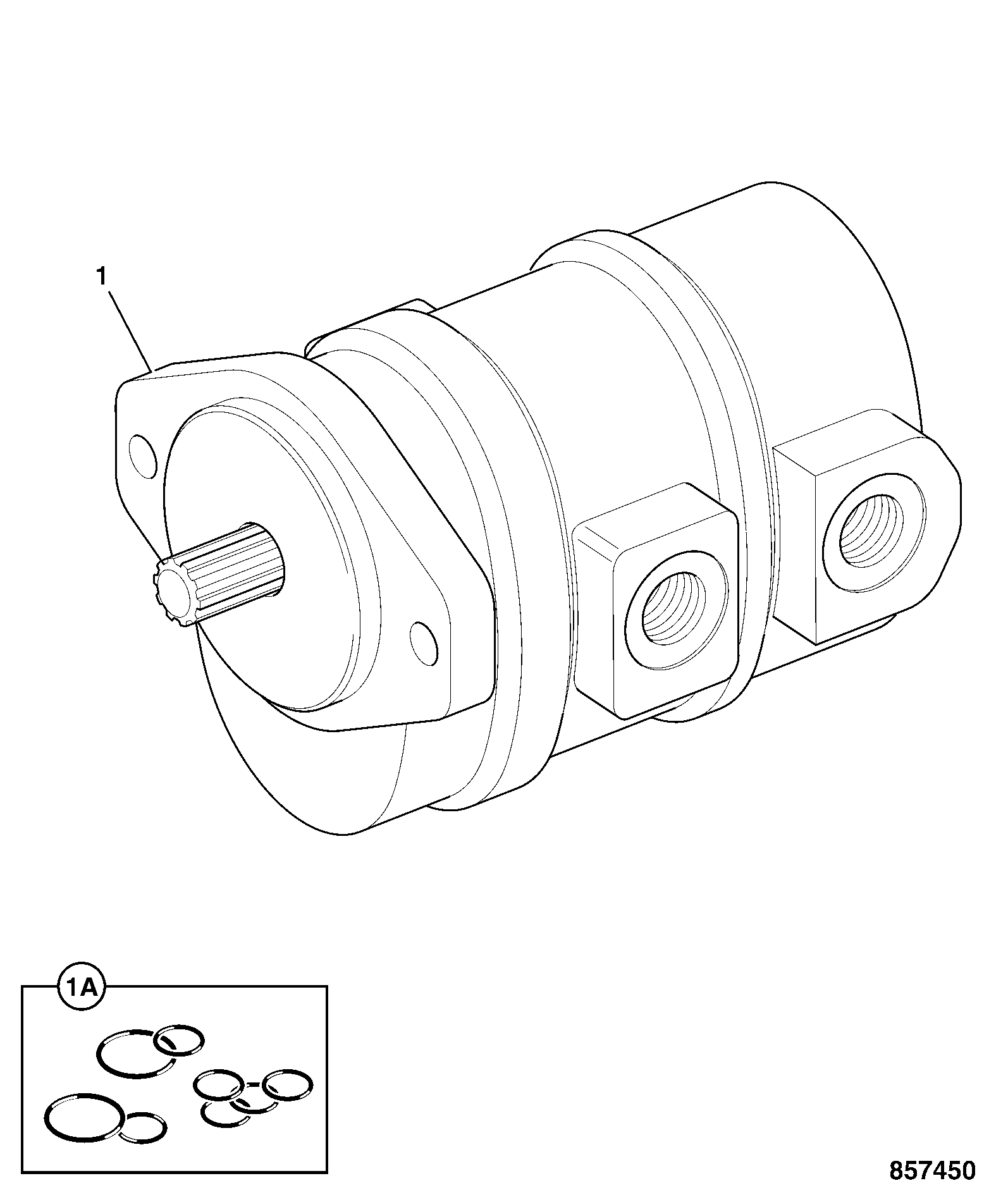

| 1 | PUMP SERVO TRANSM.HIGH FLOW ABI 332/U3327 | 1 | $9,867.71 | |||
| 3 | SET-SCREW 1/2 UNC x 1-1/4 1305/1908D | 1 | $5.75 | |||
| 4 | SET-SCREW M16 L-_40mm 1315/0710D | 1 | $3.11 | |||
| 5 | WASHER 1/2" SMALL PLAIN BRIGHT 1410/0005D | 1 | $15.84 | |||
| 6 | WASHER M16 PLAIN 1420/0011D | 1 | $1.43 | |||
| 7 | ADAPTOR 1620/2052 | 1 | $2.49 | |||
| 9 | ADAPTOR ELBOW 816/90594 | 1 | $169.51 | |||
| 10 | adaptor 1620/2060 | 1 | $59.43 | |||
| 10A | O-RING 2401/0510 | 1 | $1.46 | |||
| 12A | O RING 2401/0511 | 1 | $16.19 | |||
| 13 | ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055 | 1 | $4.51 | |||
| 13A | 'O' RING (P564) 2401/0507 | 1 | $1.46 | |||
| 14 | COUPLING ASSEMBLY 45/920130 | 1 | $739.78 | |||
| 15 | DRIVE, FLANGE 331/59807 | 1 | $230.20 | |||
| 16 | HUB COUPLING 45/920131 | 1 | $869.67 | |||
| 17 | CAP SCREW M12 X 35LG 1391/3509D | 1 | $7.84 | |||
| 18 | Plug 1745/0007 | 1 | $27.96 | |||
| 19 | ADAPTER, ELBOW 816/90229 | 1 | $58.75 | |||
| 20 | ADAPTOR G3/4A-1-1/16UNF(M 1620/0010 1620/2059 | 1 | $14.30 | |||
| 20A | O-RING 2401/0508 | 1 | $3.28 | |||
| 21 | 'Adapter Pressure Test Point 9/16-18UNF 45/908000 | 1 | $132.58 | |||
| 21 | PLUG - 9/16" UNF 816/81023 | 1 | $9.57 | |||
| 22 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 22 | O-RING 2401/0505 | 1 | $2.54 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-

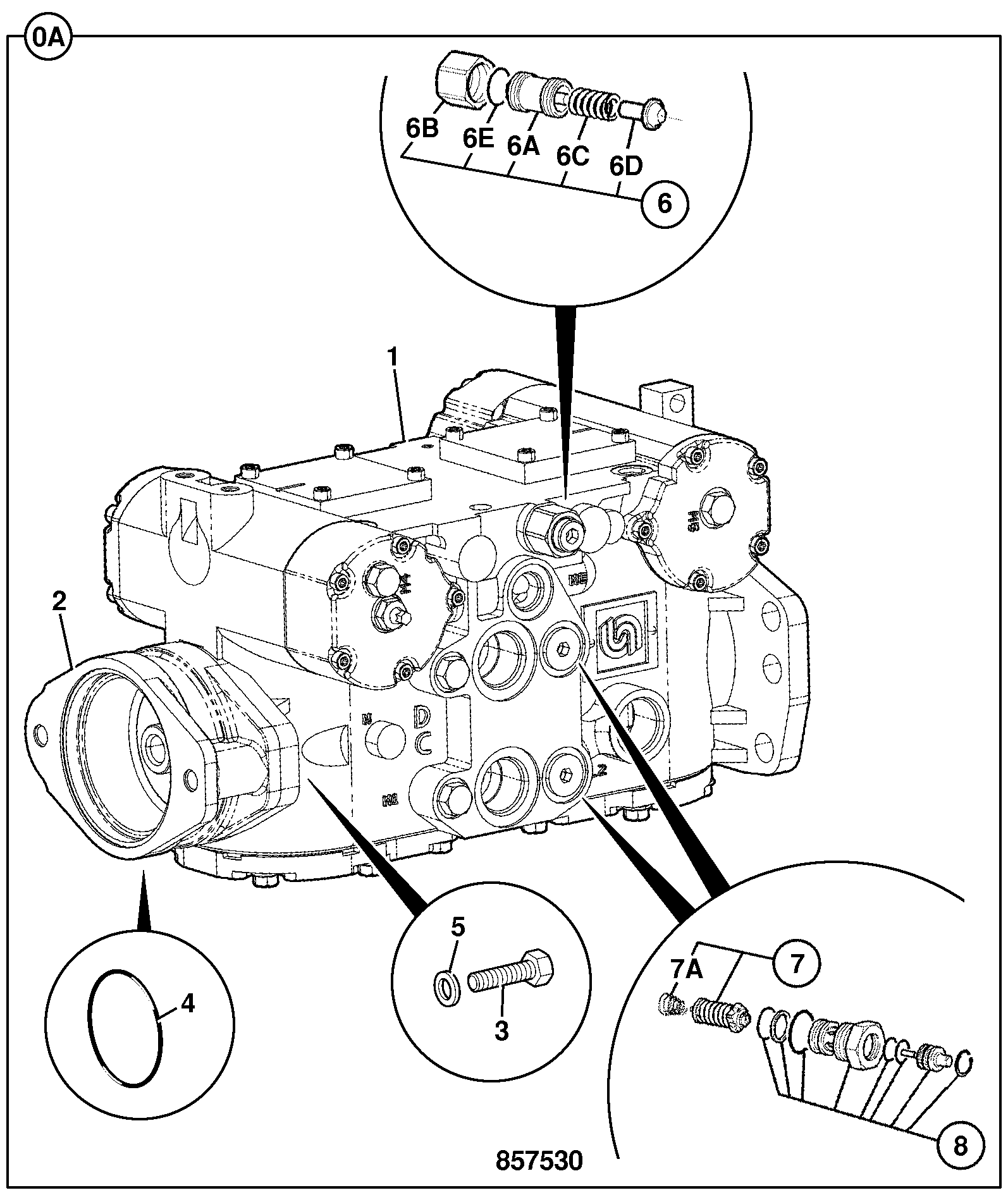

DIAG-E2-2-1-395430 E2-2-1 PUMP HYDROSTATIC COMPONENTS
View Diagram -
DIAG-E2-3-10-395430 E2-3-10 PUMP HYDRAULIC GEAR DOUBLE
View Diagram -

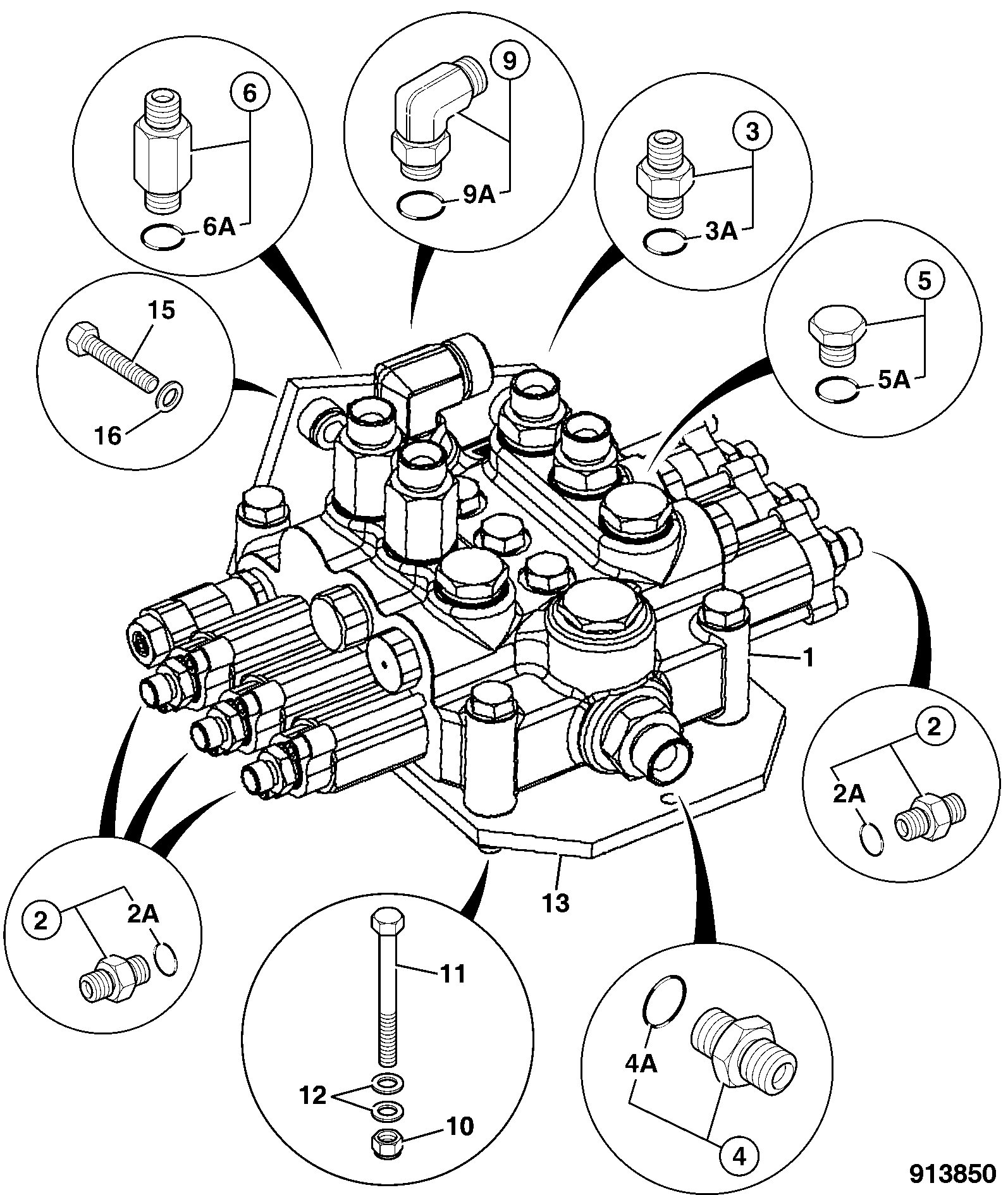

DIAG-E3-1-1-395430 E3-1-1 VALVE 3 SPOOL SERVO CONTROLS INCL.ADAPTORS AND MOUNTING
