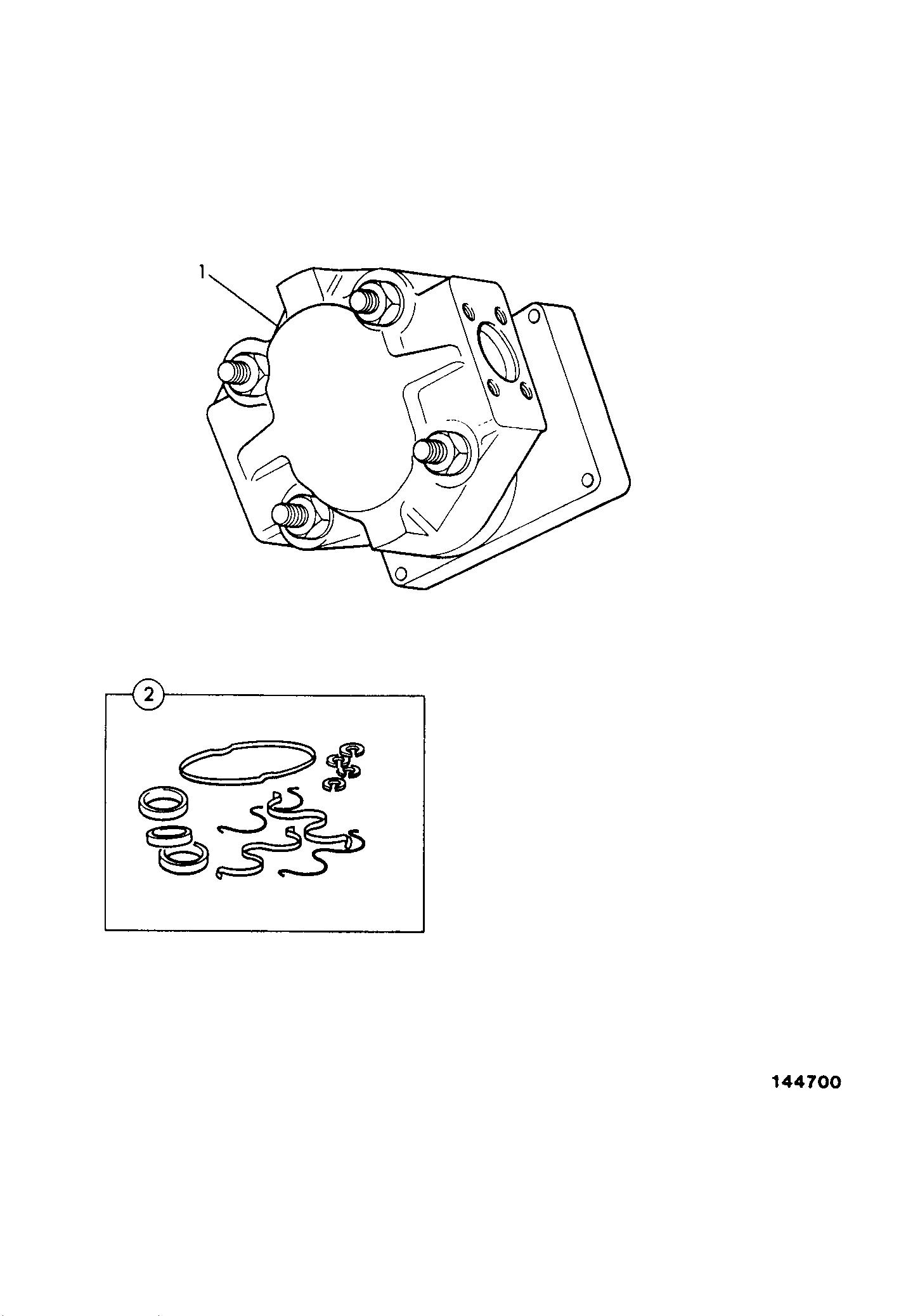

E2-1-1 PUMP, MAIN HYDRAULIC I/D 550/1/27689 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	SUNSTRAND PUMP 550/1/2768 20/202900	1	AVAILABLE TO ORDER	$1,982.60	Quantity
6A	BACKUP RING 20/202605	1	AVAILABLE TO ORDER	$116.48	Quantity
8	DOWEL 20/202607	1	AVAILABLE TO ORDER	$9.04	Quantity
11	WASHER.SPRING.7/16".HEAVY 823/00390	1	46 IN STOCK	$0.81	Quantity
14	KIT SEAL 20/209801	1	1 IN STOCK	$106.20	Quantity

Showing 1 to 5 of 5 parts
