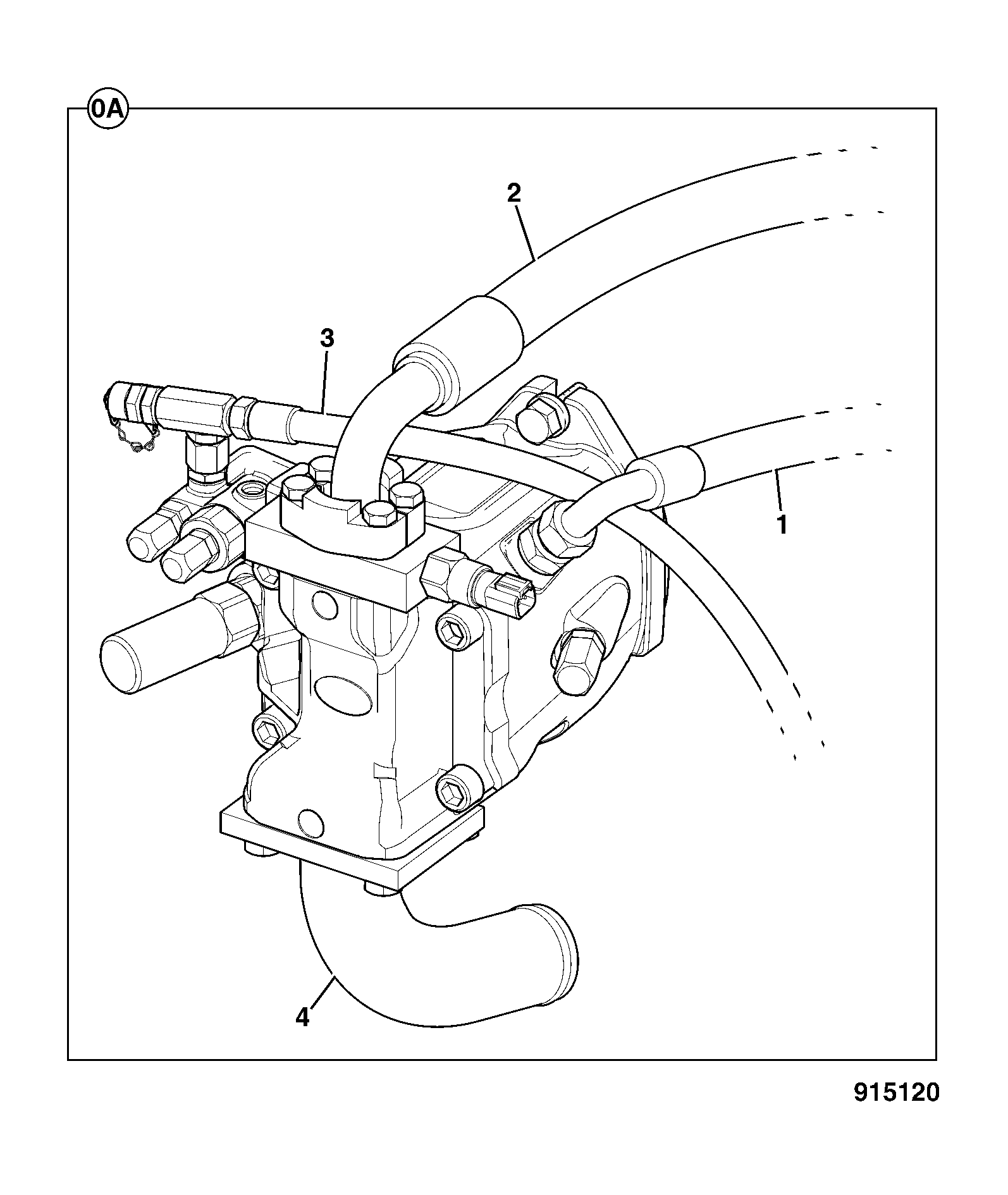

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PUMP 332/S8935 | 1 | $4,259.90 | |||
| 2 | WA HYDRAULIC SUCTION PIPE 335/09979 | 1 | $725.94 | |||
| 3 | O RING 2401/0219 | 1 | $3.56 | |||
| 4 | (W) (P)WASHER 13x23x2.7 823/00309 | 1 | $17.88 | |||
| 5 | SET-SCREW M12 L-_30mm 1315/0508D | 1 | $4.54 | |||
| 6 | O-RING - 32.51 x 3.81 PU9 828/00417 828/00021 | 1 | $25.21 | |||
| 7 | HYDRAULIC PUMP MANIFOLD 903/21306 | 1 | $711.03 | |||
| 8 | FLANGE SPLIT KRJ2682 | 1 | $18.47 | |||
| 8 | SPLIT FLANGE KRJ0963 | 1 | $22.49 | |||
| 9 | WASHER M10 1422/0008D JHP0046 | 1 | $11.36 | |||
| 10 | CAP SCREW M10x55 1391/3413D | 1 | $1.46 | |||
| 10 | SCREW M10 L-_60mm 1315/0414D | 1 | $3.20 | |||
| 11 | ADAPTOR G1/4A-7/16UNF(M) 1620/2050 | 1 | $2.60 | |||
| 12 | TEE ADAPTOR 816/90259 | 1 | $16.01 | |||
| 13 | 'Adapter Pressure Test Point 9/16-18UNF 45/908000 | 1 | $132.58 | |||
| 14 | ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055 | 1 | $4.51 | |||
| 15 | Hardened Washer JHP0042 | 1 | $1.49 | |||
| 16 | SET SCREW M12x30 1316/0508D | 1 | $10.82 | |||
| 17 | VALVE, CONTROL 332/C4791 | 1 | $2,517.02 | |||
| 18 | Valve assembly con 20/952513 | 1 | $1,579.93 | |||
| 19 | HARNESS AUTO IDLE HYDAC PRESS SW 701/80560 332/S2422 | 1 | $47.56 | |||
| 19 | LINK HARNESS 333/T4214 | 1 | $68.92 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-
DIAG-E1-6-1-398102 E1-6-1 HOSES PUMP
View Diagram -
E2-1-2 PUMP DRIVE ASSEMBLY
View Diagram -
DIAG-E1-5-1-398102 E1-5-1 HOSES SLEW MOTOR
View Diagram
