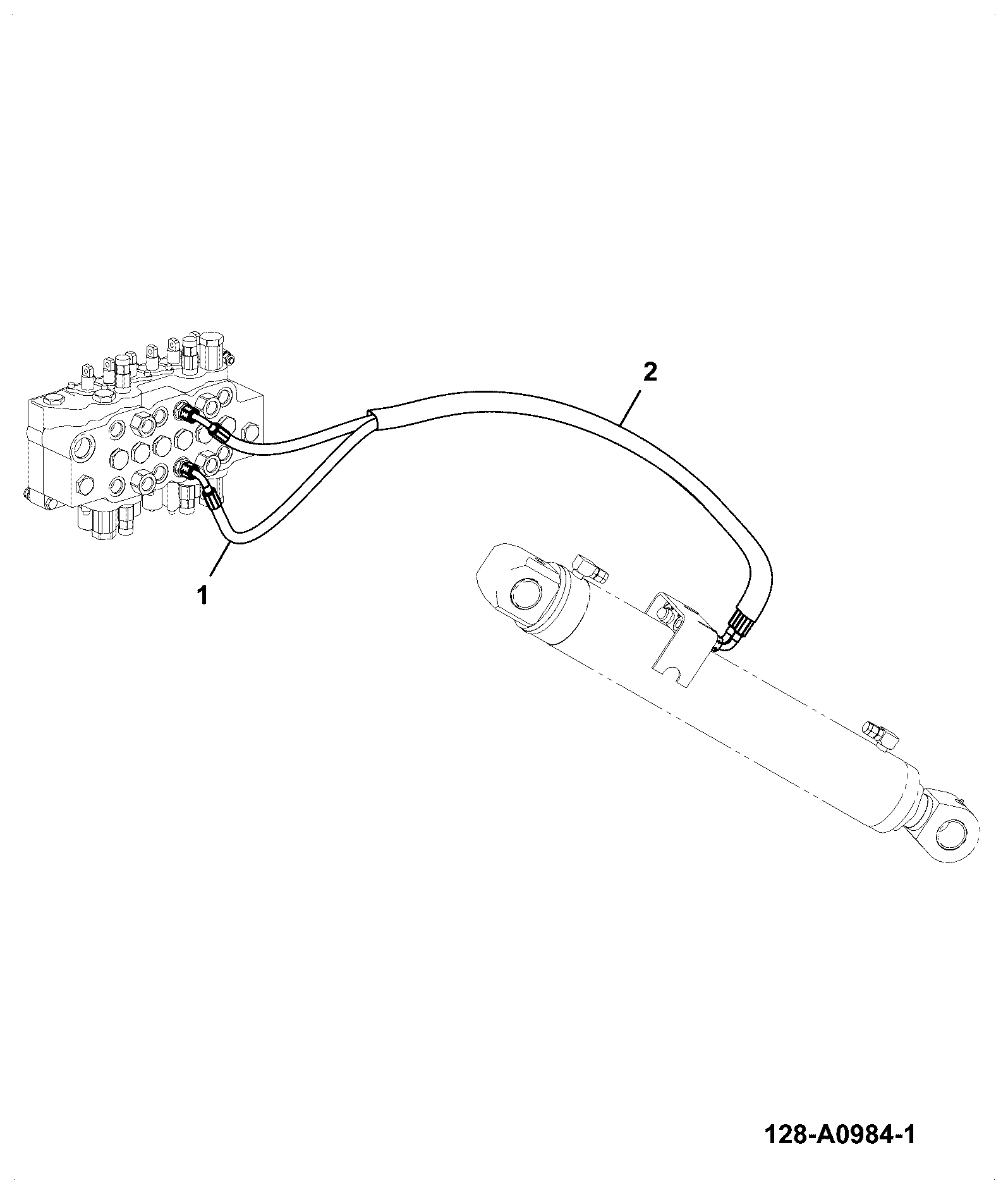

E190-90-1 OTHER HYDRAULIC CIRCUITS HOSES, STABILISER RAM, LH Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	HOSE -6 BSP HP 1350mm C 335/H9441	1	AVAILABLE TO ORDER	$37.99	Quantity
2	P.U.SLEEVE 45X950mm 335/H9446	1	AVAILABLE TO ORDER	$35.95	Quantity

Showing 1 to 2 of 2 parts
