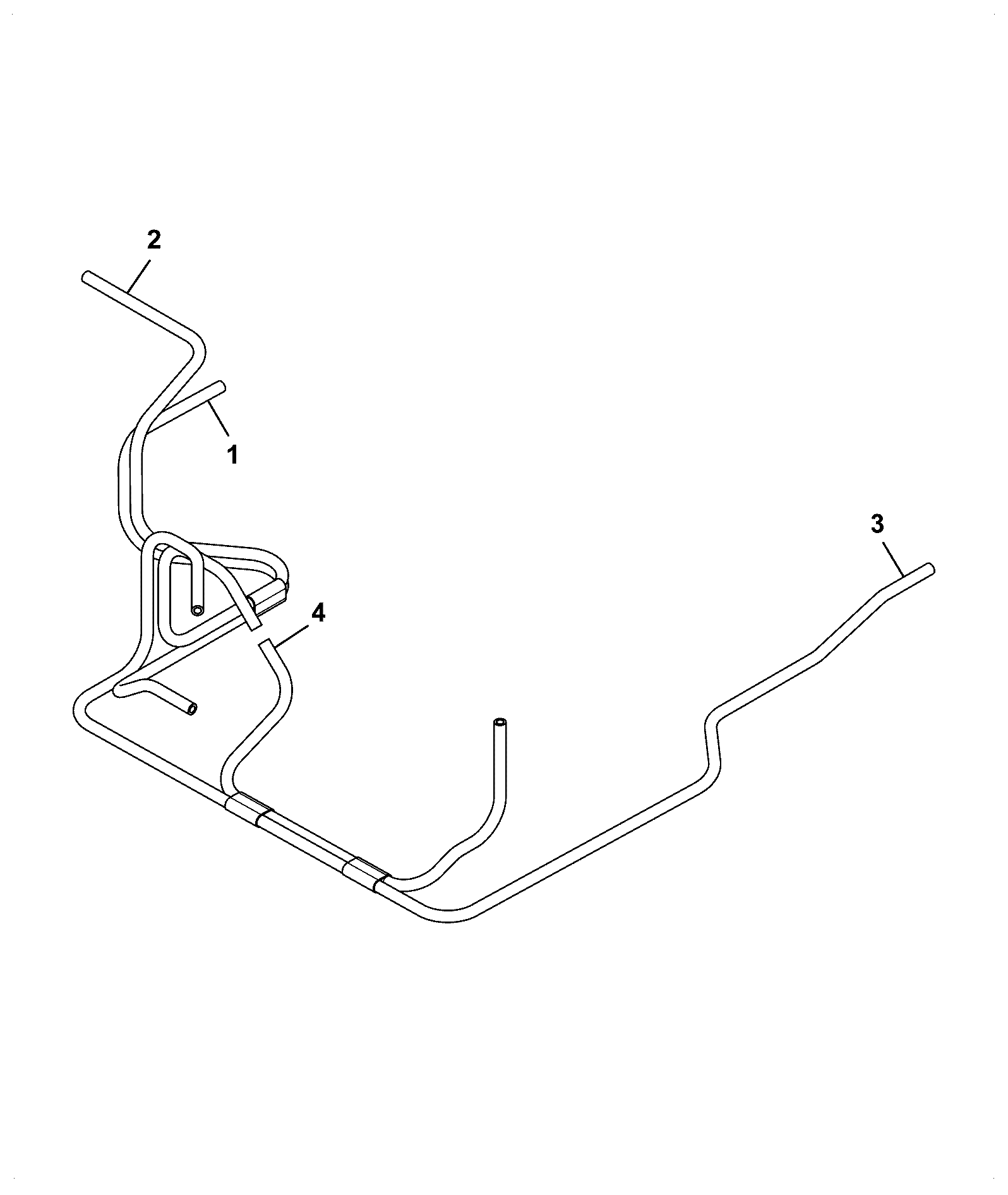

E190-81-1 OTHER HYDRAULIC CIRCUITS ABI CASE DRAIN HOSE, AUXILIARY

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	HOSE -06 ORFS LP 1920mm B 400/F7107	1	AVAILABLE TO ORDER	$94.43	Quantity
2	TANK CONNECTOR - 90-37P-9.5D 333/X2587	1	AVAILABLE TO ORDER	$22.76	Quantity
3	'(W) (P) CLIP - WORMDRIVE 10/16mm(KANBAN 2201/0001	1	AVAILABLE TO ORDER	$4.80	Quantity

Showing 1 to 3 of 3 parts
