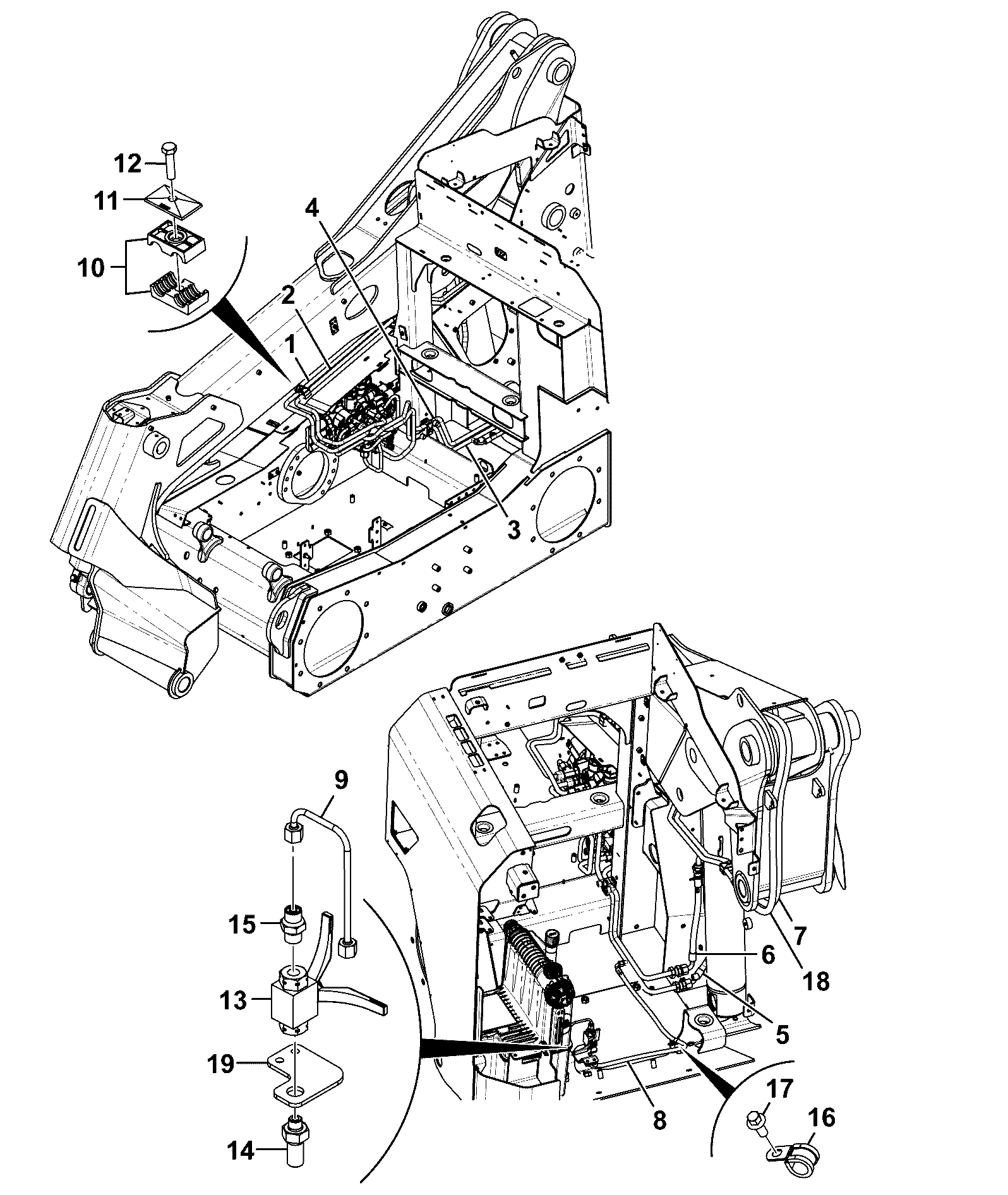

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | HOSE -08 ORFS LP 730mm C 401/T9489 | 1 | $94.62 | |||
| 3 | TUBE ASSY - SRS ACC LP/3TS 401/U3689 | 1 | $45.00 | |||
| 5 | TUBE ASSY - SRS P1 401/U4551 | 1 | $98.97 | |||
| 6 | TUBE ASSY - SRS P2 401/U0163 | 1 | $104.07 | |||
| 7 | PIPE CLAMP - TWIN -8 332/X4517 | 1 | $5.43 | |||
| 8 | P-CLIP 18mm 332/X8091 | 1 | $2.78 | |||
| 9 | P-CLIP 30mm 821/00377 | 1 | $18.79 | |||
| 10 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 11 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 12 | NUT M10 PLAIN 1370/0301Z 1370/0301D | 1 | $3.28 | |||
| 13 | HARNESS LP SRS 721/X1905 | 1 | $32.20 | |||
| 14 | 4 WAY DT EXTENSION HARNESS 721/X1816 | 1 | $43.18 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-
DIAG-E190-65-1-395268 E190-65-1 OTHER HYDRAULIC CIRCUITS ,GA CIRCUIT - VLIFT UDSL LP GL
View Diagram -
DIAG-E200-1-1-395268 E200-1-1 PUMP/MOTOR INSTALLATION ASSEMBLIES ASSEMBLY TRANS PUMP 45CC
View Diagram -
DIAG-E200-5-1-395268 E200-5-1 PUMP/MOTOR INSTALLATION ASSEMBLIES 45CC, BLUE
View Diagram
