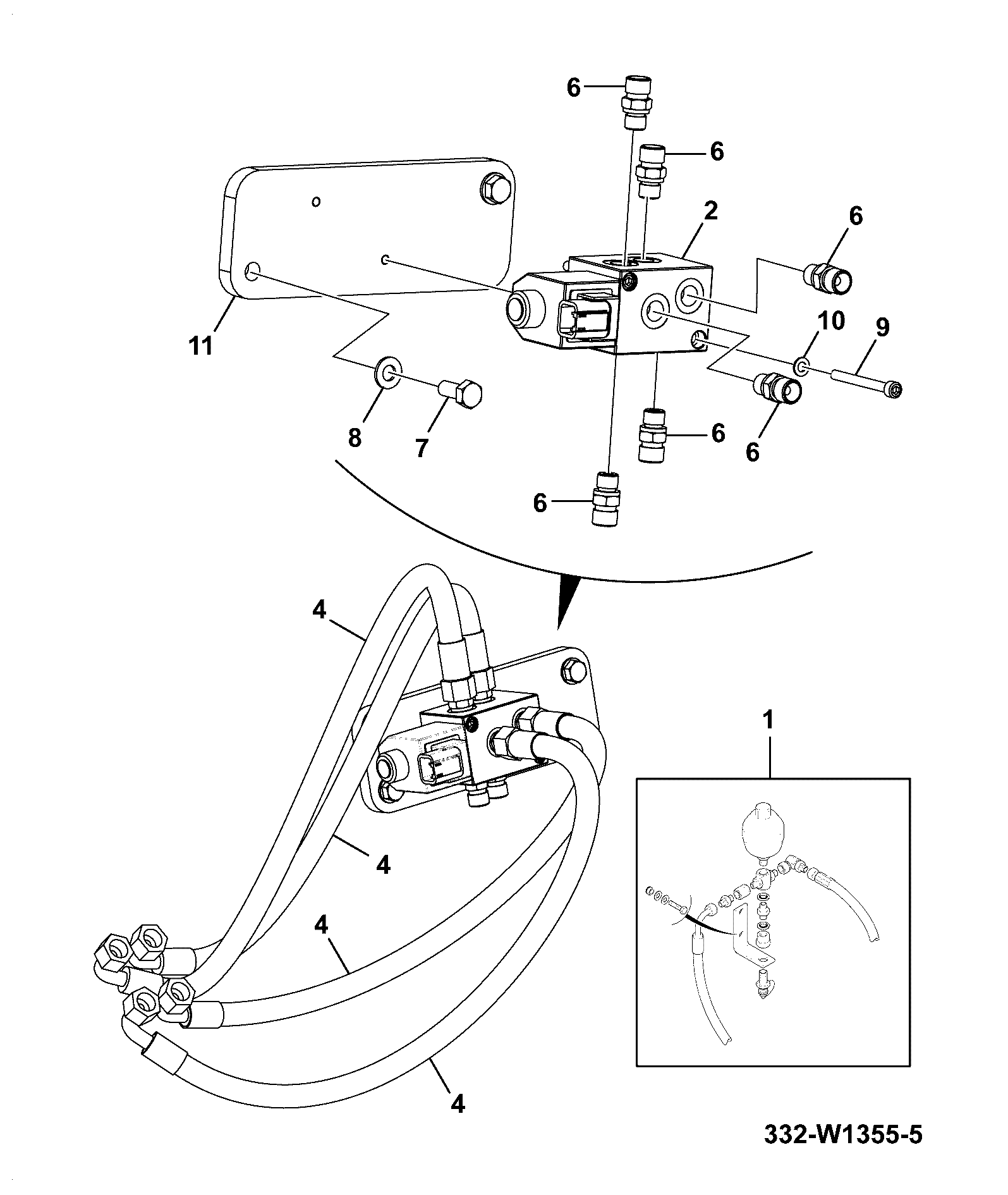

E190-55-1 OTHER HYDRAULIC CIRCUITS GA TEST POINTS – Scholten's Equipments Parts Store

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	DECAL - TEST POINT 817/19853	1	AVAILABLE TO ORDER	$5.99	Quantity
1	BULKHEAD TEST POINT 816/90965	1	AVAILABLE TO ORDER	$30.23	Quantity
2	ADAPTOR G1/4A-7/16UNF(M) 1620/2050	1	AVAILABLE TO ORDER	$2.60	Quantity
4	Hose 611/80219	1	AVAILABLE TO ORDER	$61.22	Quantity
5	HOSE - 04 BSP HP 420mm B 611/23900	1	AVAILABLE TO ORDER	$40.24	Quantity

Showing 1 to 5 of 5 parts
