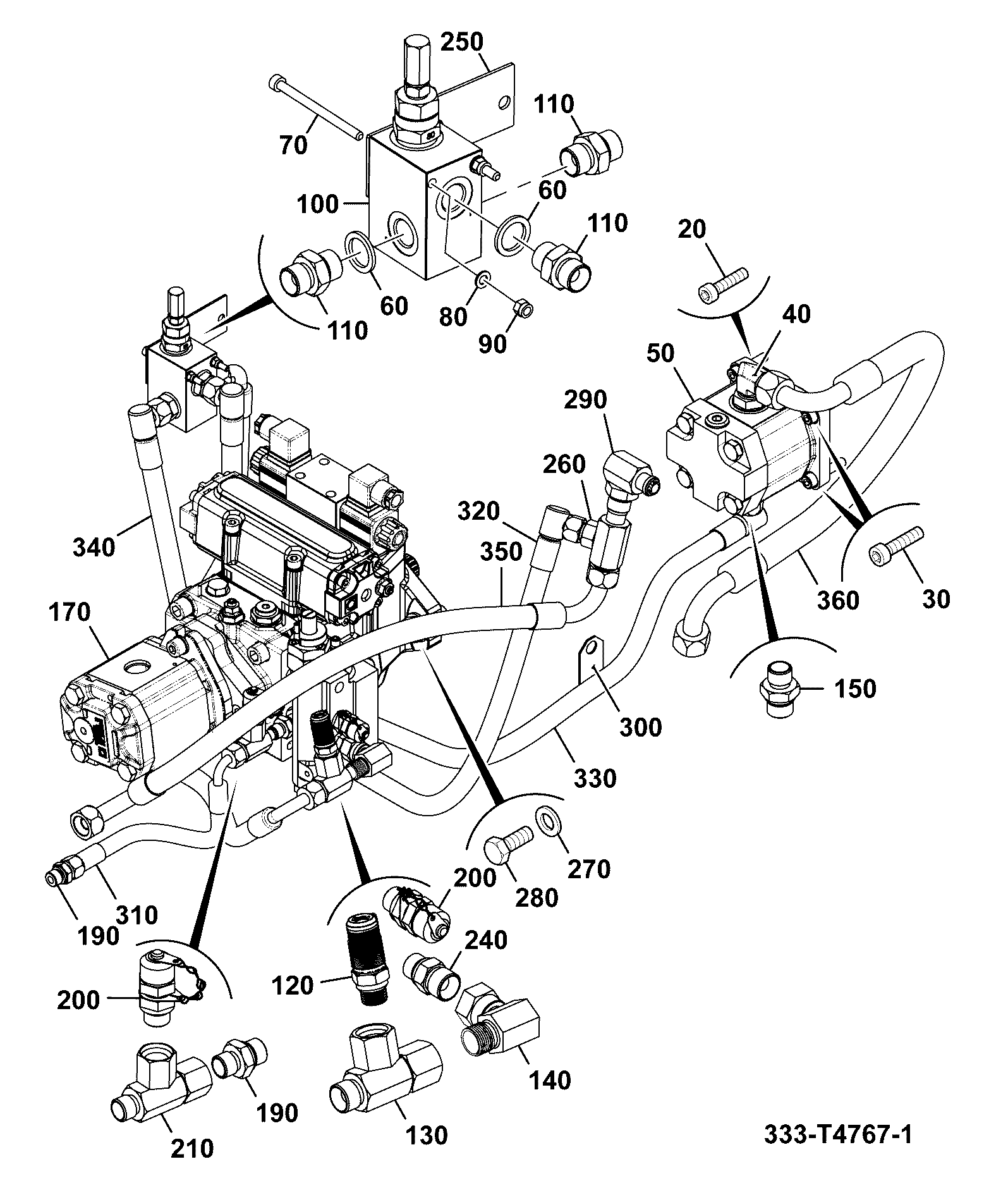

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | SET-SCREW M10 L-_50mm 1315/0412D | 1 | $4.08 | |||
| 2 | BOLT M8 x 1.25p x 70Lg 1315/3316D | 1 | $5.17 | |||
| 3 | BOLT M8x100 1315/3320D | 1 | $6.60 | |||
| 4 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 5 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 6 | GRUB SCREW M8x10 1390/0303 | 1 | $1.49 | |||
| 7 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 8 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 9 | WASHER M16 PLAIN 1420/0011D | 1 | $1.43 | |||
| 10 | ADAPTOR G3/8A M/M 1604/2052 | 1 | $18.27 | |||
| 11 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 12 | WA COUPLING BOX 332/R6577 | 1 | $139.89 | |||
| 13 | AUX LEVER WA 332/V2918 | 1 | $415.36 | |||
| 14 | M10 X 45 CSK HD SOCKET SCREW 332/S8248 | 1 | $7.25 | |||
| 16 | HOSE 3/8 BSP 3180mm Long 332/S9449 | 1 | $143.36 | |||
| 17 | HOSE -06 HP BSP 1000mm B 332/S9599 | 1 | $59.00 | |||
| 18 | HOSE 612/35400 | 1 | $86.34 | |||
| 18 | HOSE 3/8 BSP 1200mm LONG 332/U3935 | 1 | $67.74 | |||
| 19 | ADAPTOR 816/90070 | 1 | $94.06 | |||
| 20 | BLANKING CAP - 3/4-16 UNF 816/90611 | 1 | $13.39 | |||
| 21 | COVER PLATE and bolt 821/00169 821/00169A | 1 | $1.92 | |||
| 22 | TWIN CLAMP MOULDING 821/00347 | 1 | $31.20 | |||
| 25 | TUBE-2.4 METRES 647/02721 647/02703 | 1 | $195.62 | |||
| 31 | COUPLING QR FEMALE HQ10 - 8SAE 45/920049 | 1 | $160.53 | |||
| 32 | COUPLING QR MALE 10 -8SAE 45/920050 | 1 | $103.37 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-
DIAG-E190-3-1-404342 E190-3-1 HOSE AND PIPEWORK DRIVE MOTOR
View Diagram -
DIAG-E190-5-2-404342 E190-5-2 HOSE AND PIPEWORK AUTOMOTIVE CONTROL CIRCUIT
View Diagram -
DIAG-E190-2-1-404342 E190-2-1 HOSE AND PIPEWORK LOADER END
View Diagram
