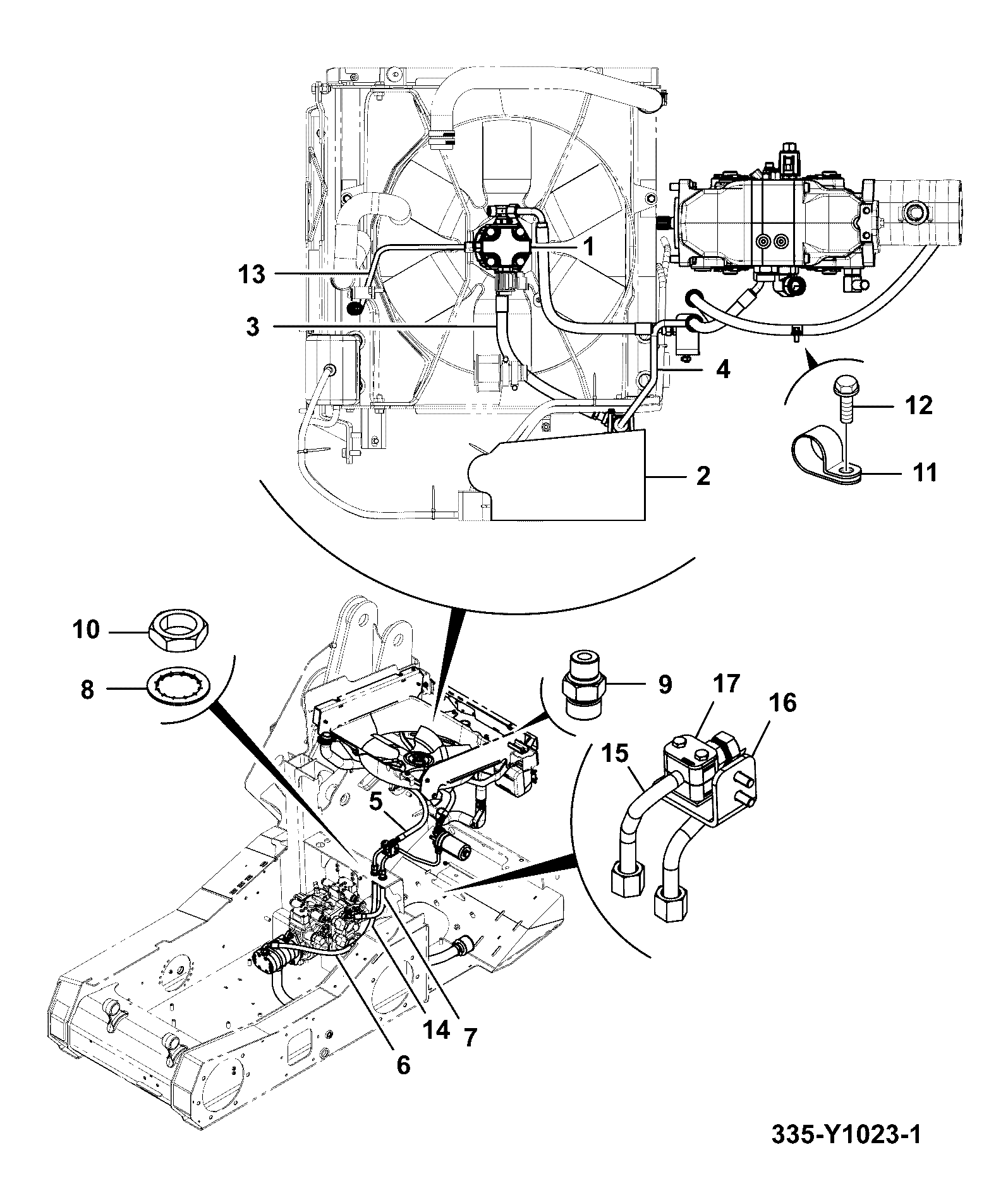

E190-35-1 OTHER HYDRAULIC CIRCUITS HOSE TANK CONNECTION

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	HOSE -06 ORFS LP 1700mm A 335/Y2466	1	AVAILABLE TO ORDER	$170.33	Quantity
2	TANK CONNECTOR - 90-37P-9.5D 333/X2587	1	AVAILABLE TO ORDER	$22.76	Quantity
3	CLIP - WORMDRIVE 12/22mm(KANBAN) 2201/0004	1	AVAILABLE TO ORDER	$4.72	Quantity

Showing 1 to 3 of 3 parts
