E190-35-1 OTHER HYDRAULIC CIRCUITS FRONT FREE FLOW RETURN UTILITY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

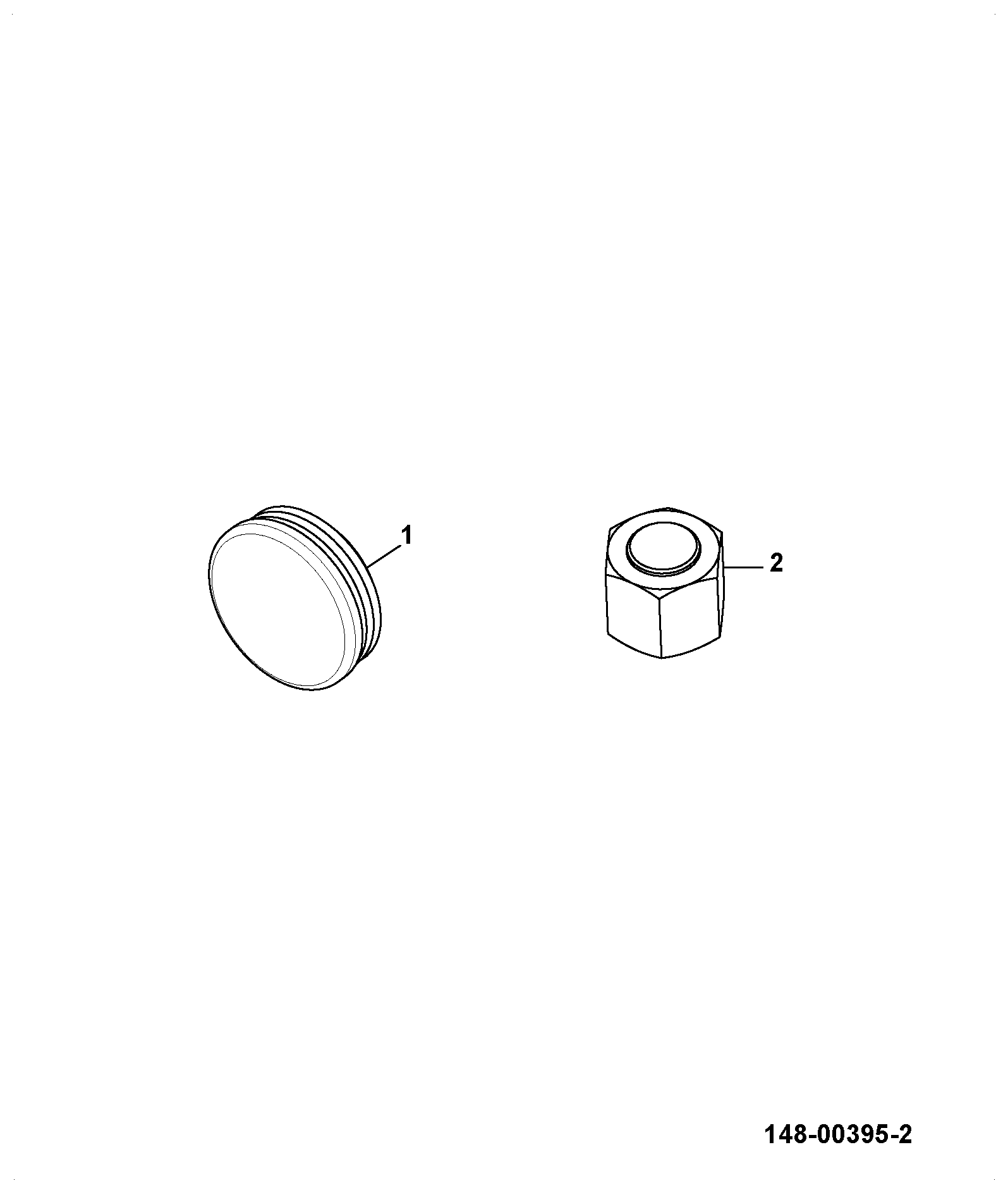

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	QRC CAP SINGLE 331/66848	1	AVAILABLE TO ORDER	$94.28	Quantity
2	QRC 5/8"BSP FEMALE 45/912000 335/D2869	1	AVAILABLE TO ORDER	$163.10	Quantity
3	Hose 614/46300	1	AVAILABLE TO ORDER	$71.70	Quantity
4	I.D. DISC: BLACK - 336/C9726	1	AVAILABLE TO ORDER	$2.32	Quantity

Showing 1 to 4 of 4 parts
