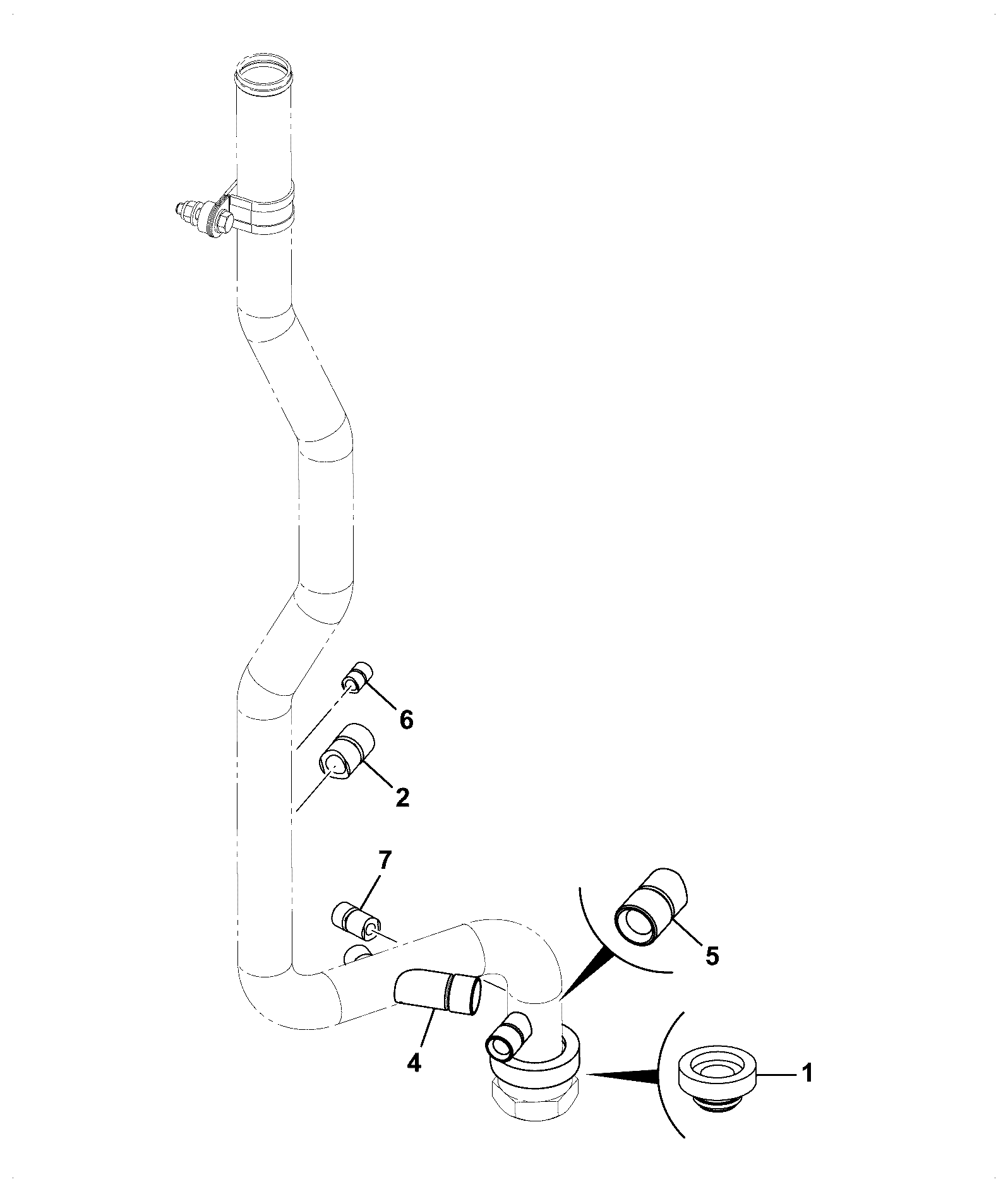

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | QRC CAP (DOUBLE) 331/47570 | 1 | $121.77 | |||
| 4 | HOSE: QRC DRAIN 335/F2453 | 1 | $55.11 | |||
| 5 | HOSE : QRC DRAIN 335/F2454 | 1 | $6.76 | |||
| 6 | CLAMP FUEL LINE 821/00385 | 1 | $29.44 | |||
| 7 | QRC DRAIN BOTTLE AND BRKT ASSY 332/R9242 | 1 | $57.24 | |||
| 9 | CAP SCREW M6x20 SPECIAL 826/00902 | 1 | $1.25 | |||
| 13 | STRAIGHT CONNECTOR DRAIN BOTTLE 334/S2680 | 1 | $13.93 | |||
Showing 1 to 7 of 7 parts
Related Assemblies
-
DIAG-E190-295-1-393665 E190-295-1 OTHER HYDRAULIC CIRCUITS PIPEWORK MAIN REAR RETURN
View Diagram -
DIAG-E190-315-1-393665 E190-315-1 OTHER HYDRAULIC CIRCUITS BOTTLE DRAIN 5 SPOOLS ASSEMBLY
View Diagram -
DIAG-E190-290-1-393665 E190-290-1 OTHER HYDRAULIC CIRCUITS HYDRAULIC ASSEMBLY AUX VALVE COMMON
View Diagram
