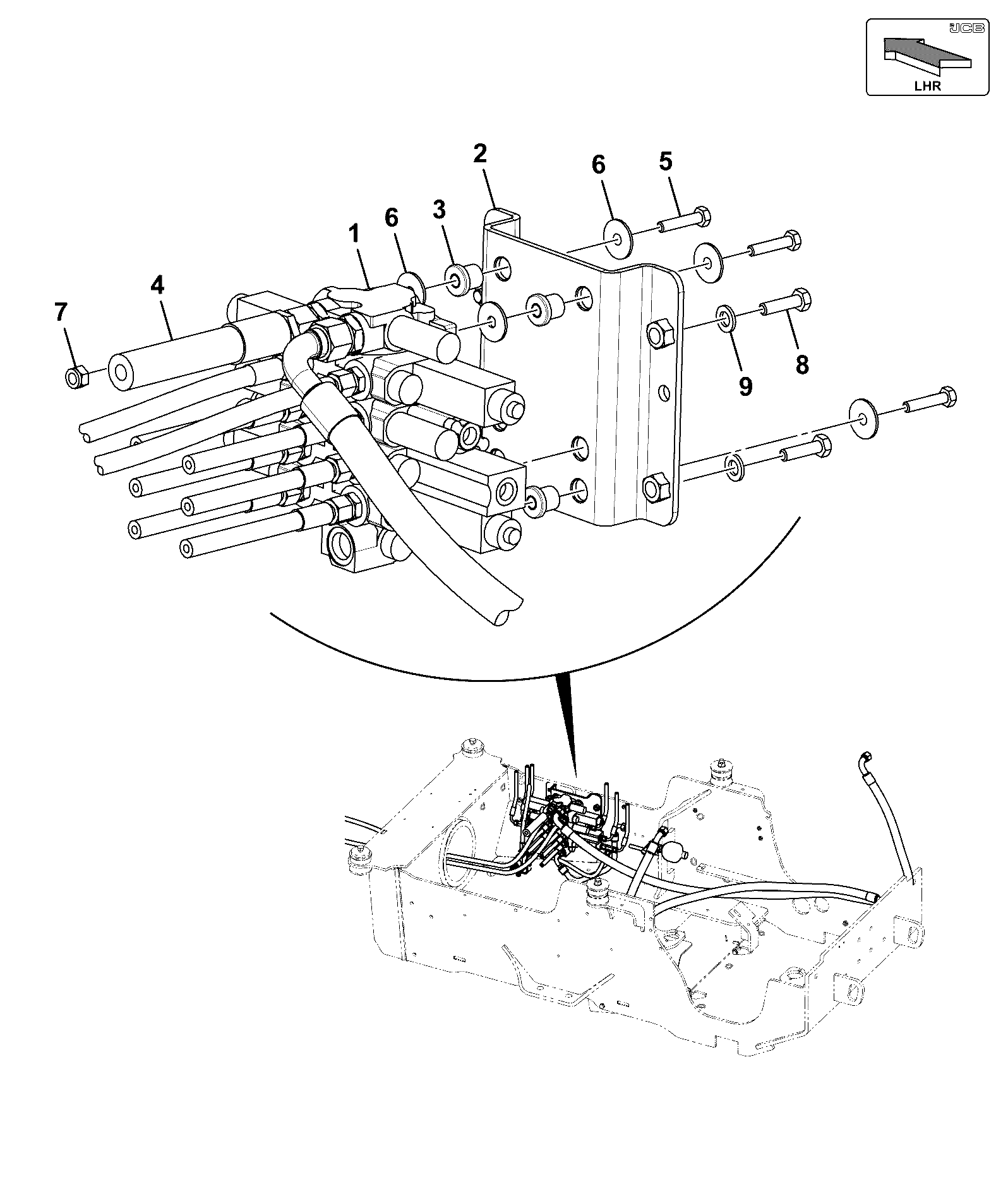

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | HOSE -04 BSP HP 1000mm C 31AM/FA100 | 1 | $68.46 | |||
| 2 | HOSE 612/02900 | 1 | $57.24 | |||
| 3 | QRC SAE FEMALE 1 1/16 UNF 332/X3840 | 1 | $113.29 | |||
| 4 | QRC SAE MALE 1 1/16 UNF 332/X3841 | 1 | $68.58 | |||
| 5 | M16 LOCK NUT 1370/0603D | 1 | $21.78 | |||
| 6 | ADAPTER TEE M/F/M (R) 816/90079 | 1 | $92.85 | |||
| 7 | Adapter bulkhead 1 816/90905 | 1 | $40.46 | |||
| 8 | TWIN AUX ADAPTOR PLATE 400/T3781 | 1 | $50.35 | |||
| 9 | BOLT M16 L-_40mm GRADE 8.8 1315/3710D | 1 | $23.96 | |||
| 10 | WASHER M16 PLAIN 1420/0011D | 1 | $1.43 | |||
| 12 | SPIRALGUARD - 13mm ID X 900mm 333/T3310 | 1 | $25.23 | |||
Showing 1 to 11 of 11 parts
Related Assemblies
-
DIAG-E190-20-5-404388 E190-20-5 OTHER HYDRAULIC CIRCUITS HBCV (HOST BURST CHECK VALVE), SERVO CONTROLS ASSEMBLY
View Diagram -
DIAG-E130-40-1-404388 E130-40-1 HYDRAULIC CIRCUITS CHASSIS ASSEMBLY 4 SPOOL VALVE BLOCK FITTINGS
View Diagram -
DIAG-E130-35-5-404388 E130-35-5 HYDRAULIC CIRCUITS CHASSIS ASSEMBLY 4 SPOOL SERVO VALVE BLOCK
View Diagram
