E190-25-1 OTHER HYDRAULIC CIRCUITS KIT COUPLER, LOXAM Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	LOXAM COUPLER -8 (1/2) SA 335/E4780	1	AVAILABLE TO ORDER	$183.39	Quantity
2	LOXAM COUPLER -12 (3/4) S 335/E4785	1	AVAILABLE TO ORDER	$117.67	Quantity

Showing 1 to 2 of 2 parts

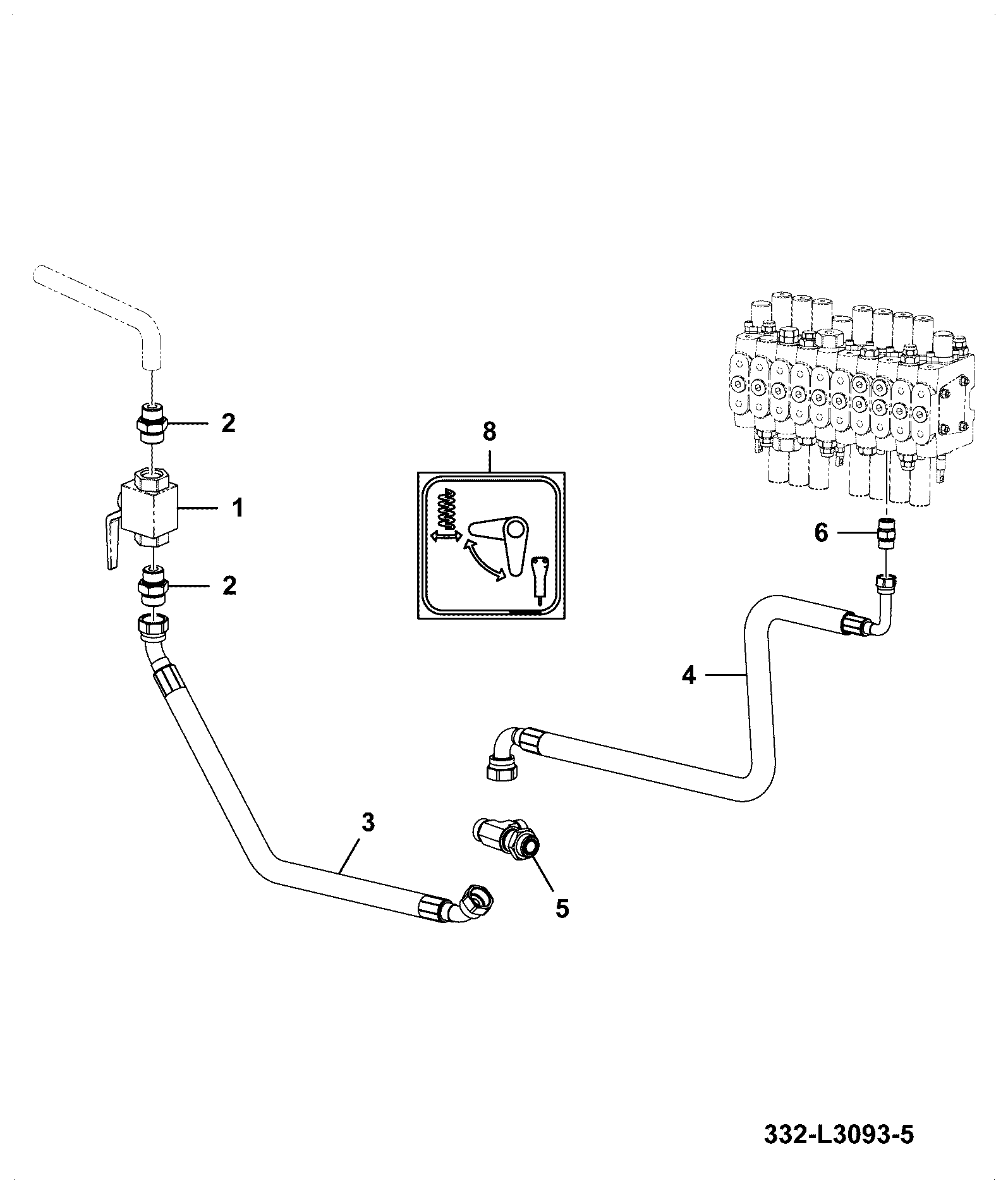

DIAG-E190-8-10-398079 E190-8-10 OTHER HYDRAULIC CIRCUITS DOUBLE ACTING,ASSEMBLY
View Diagram
D120-50-3 EXCAVATOR CONTROLS JOYSTICK-RIGHT HAND SIDE,ASSEMBLY
View Diagram

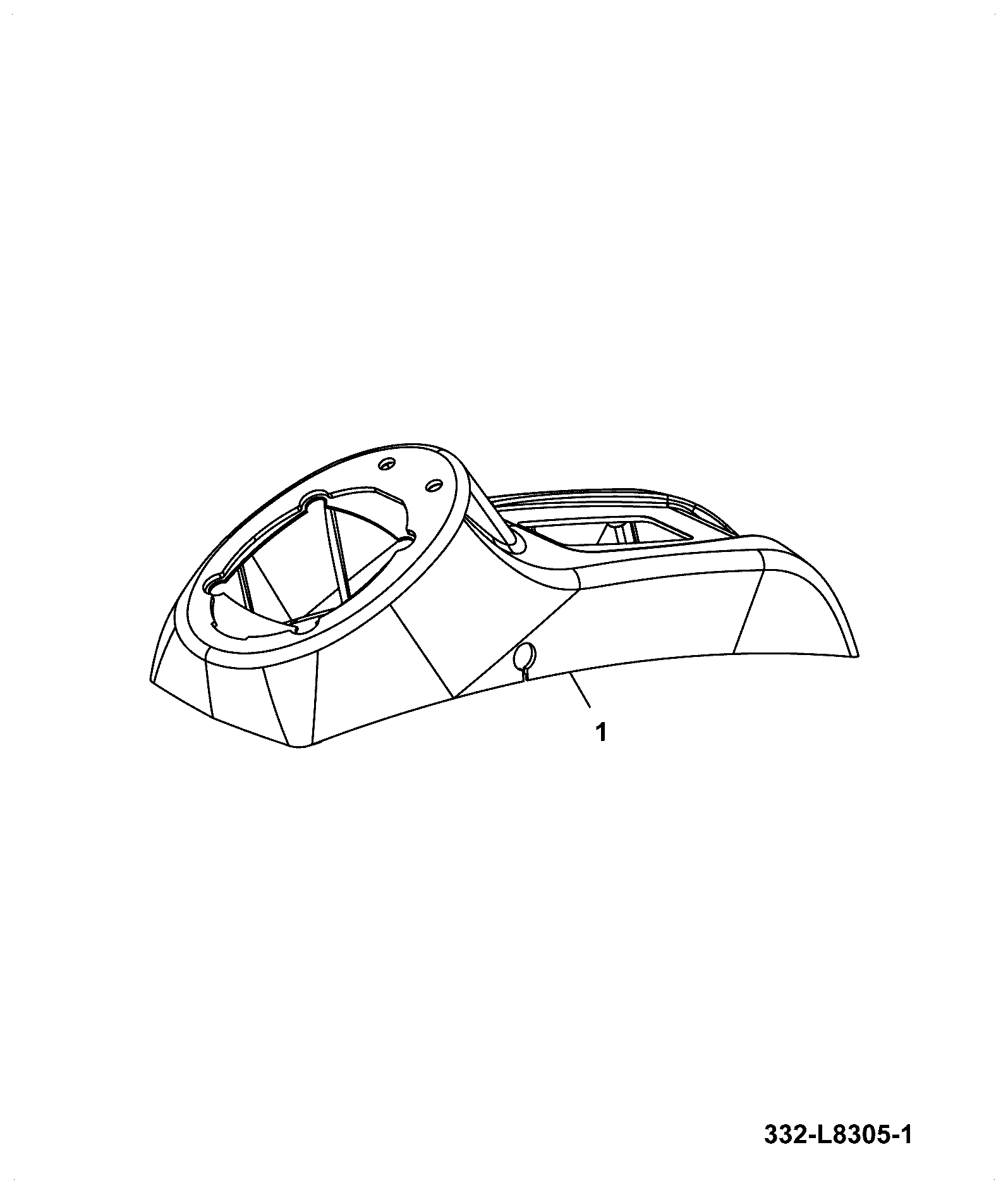

DIAG-D120-45-1-398079 D120-45-1 EXCAVATOR CONTROLS TOP COVER POD,RIGHTSIDE
