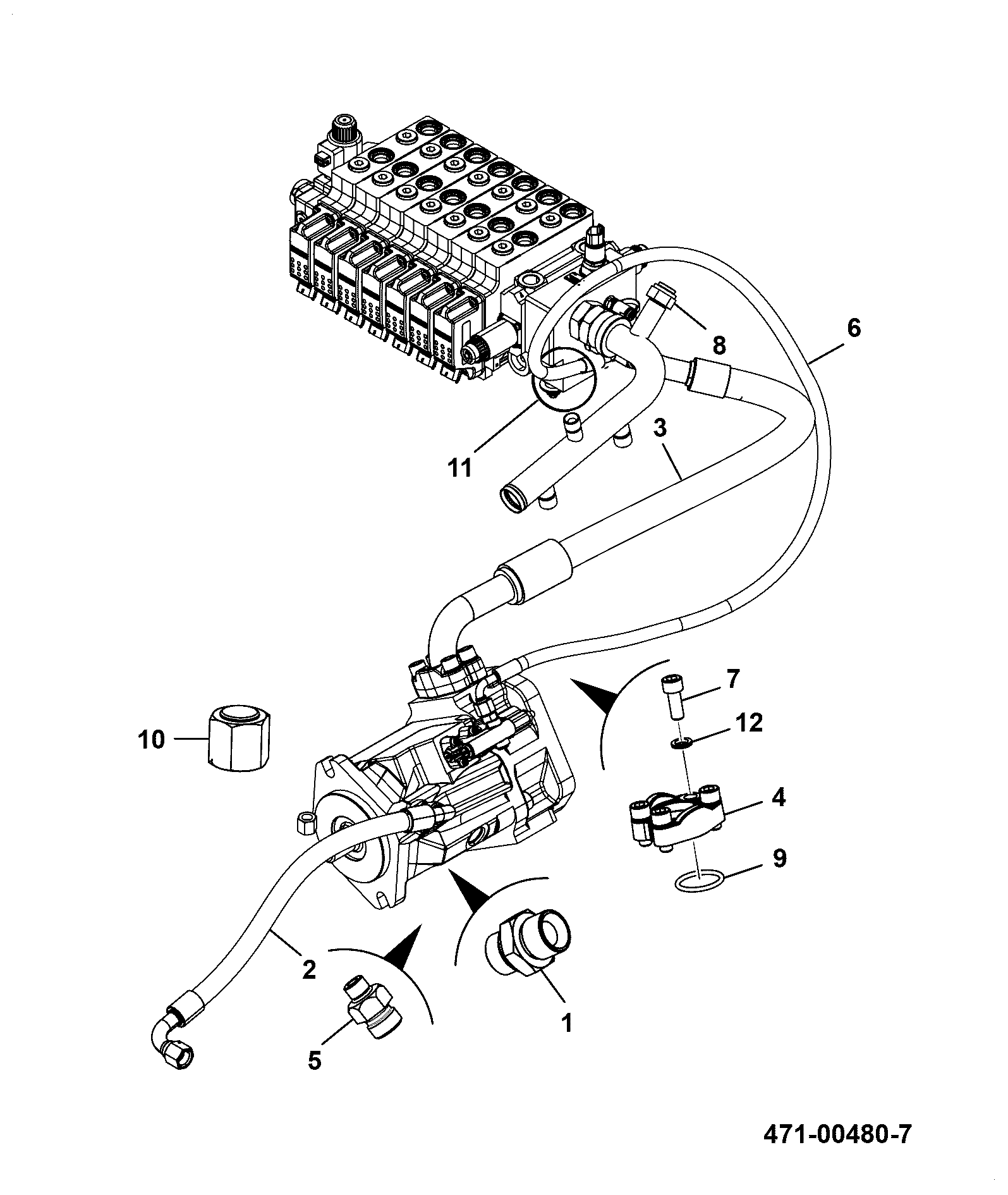

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ADAPTOR G5/8A-1-1/16UNF(M) 1620/0008 1620/2057 | 1 | $25.23 | |||
| 2 | HOSE -10 BSP LP 620mm C 24AM/CQ062 | 1 | $75.74 | |||
| 3 | HOSE -16 BSP HP 980mm 336/C7322 | 1 | $350.66 | |||
| 4 | FLANGE CLAMP HALF 265/00787 | 1 | $21.46 | |||
| 5 | BOLT M14 X 90 1391/3619D | 1 | $9.99 | |||
| 6 | BLOCK ADAPTOR(BXP22780-02) 816/13419 | 1 | $286.26 | |||
| 7 | ADAPTOR G3/4A M/M 1604/0006 | 1 | $12.35 | |||
| 8 | HOSE -12 BSPHP 1400 B 35AM/DA140 | 1 | $162.21 | |||
| 9 | O-RING 2400/0213 | 1 | $2.40 | |||
| 10 | SHUTTLE VALVE BODY 332/R1450 | 1 | $207.58 | |||
| 11 | BOLT M8x60 (P564) 1315/3314D | 1 | $33.85 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 13 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 14 | ADAPTOR M12 x G3/8A 816/90901 | 1 | $35.01 | |||
| 15 | HOSE -06 BSP LP 1300 22AM/BA130 | 1 | $52.57 | |||
| 16 | HOSE -06 BSP HP 840mm C 32AM/CB084 | 1 | $54.83 | |||
| 17 | HOSE -06 BSP HP 750mm B 32AM/BA075 | 1 | $50.54 | |||
| 18 | ADAPTER 816/10159 | 1 | $25.45 | |||
| 19 | QRC 3/8"BSP FEMALE 45/920060 335/D2868 | 1 | $161.07 | |||
| 20 | MALE COUPLING QRC 3/4"H-SPE 45/920103 | 1 | $42.95 | |||
| 21 | CAP: 3/4 Q.R.C. - BLACK 331/52214 | 1 | $8.86 | |||
| 22 | *FEMALE COUPLING, QRC 3/4" H-SPE 45/920104 | 1 | $447.37 | |||
| 23 | PLUG: 3/4 Q.R.C. - BLACK 331/52215 | 1 | $6.80 | |||
| 24 | QRC CAP:BLACK 477/01407 | 1 | $17.79 | |||
| 25 | HOSE -12 BSP LP 870mm A 25AM/AA087 | 1 | $89.06 | |||
| 26 | ADAPTOR 1661/0506 | 1 | $8.98 | |||
| 27 | ADAPTOR 7/16SAE x G3/8A 334/P1367 | 1 | $13.84 | |||
| 28 | HOSE -06 BSP HP 2000mm C 32AM/CS200 | 1 | $77.21 | |||
| 29 | WASHER BONDED 1" BSP 1406/0021 | 1 | $6.00 | |||
| 30 | SHUTTLE VALVE M12X 1.5 25/223007 | 1 | $84.12 | |||
| 31 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.95 | |||
| 32 | M14 NORDLOCK WASHER 333/R3377 | 1 | $8.80 | |||
Showing 1 to 32 of 32 parts
Related Assemblies
-
DIAG-E190-20-1-393731 E190-20-1 OTHER HYDRAULIC CIRCUITS HOSE INSTALLATION NO POWER BEYOND
View Diagram -
DIAG-E190-30-1-393731 E190-30-1 OTHER HYDRAULIC CIRCUITS HYDRAULIC RETURNS
View Diagram -
DIAG-E190-10-1-393731 E190-10-1 OTHER HYDRAULIC CIRCUITS HOSE INSTALLATION POWER BEYOND AG
View Diagram
