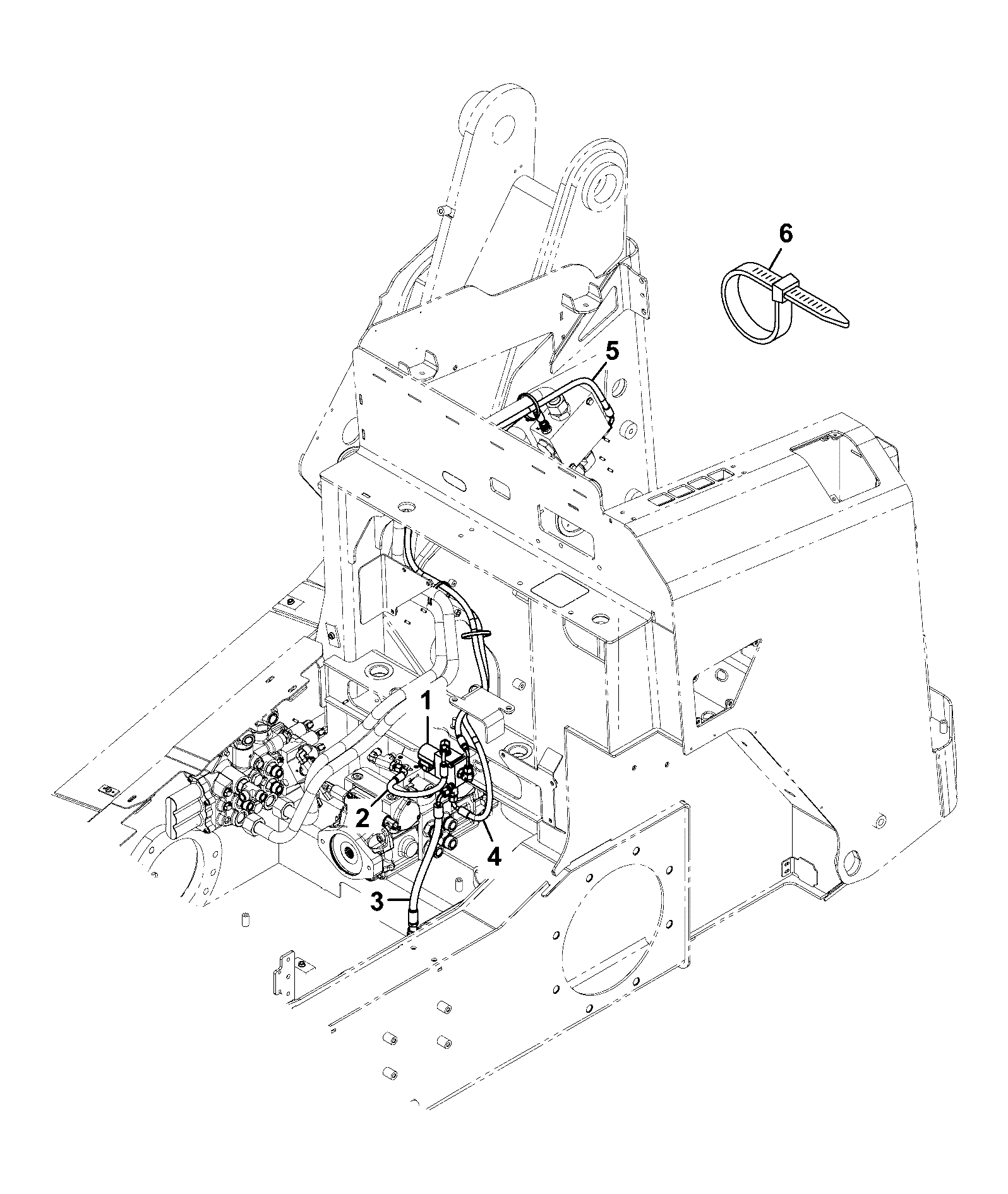

E190-215-1 OTHER HYDRAULIC CIRCUITS PILOT CONTROL LINE TRACKED, TWIN SPEED Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	TUBE HARNESS-TWIN SP TRKD LPTB 401/P9781	1	AVAILABLE TO ORDER	$373.73	Quantity
2	TUBE HARNESS-TWIN SPEED SHIFT TR 332/X8018	1	AVAILABLE TO ORDER	$174.95	Quantity
4	CABLE TIE 190mm 826/01347	1	AVAILABLE TO ORDER	$3.37	Quantity

Showing 1 to 3 of 3 parts
