Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

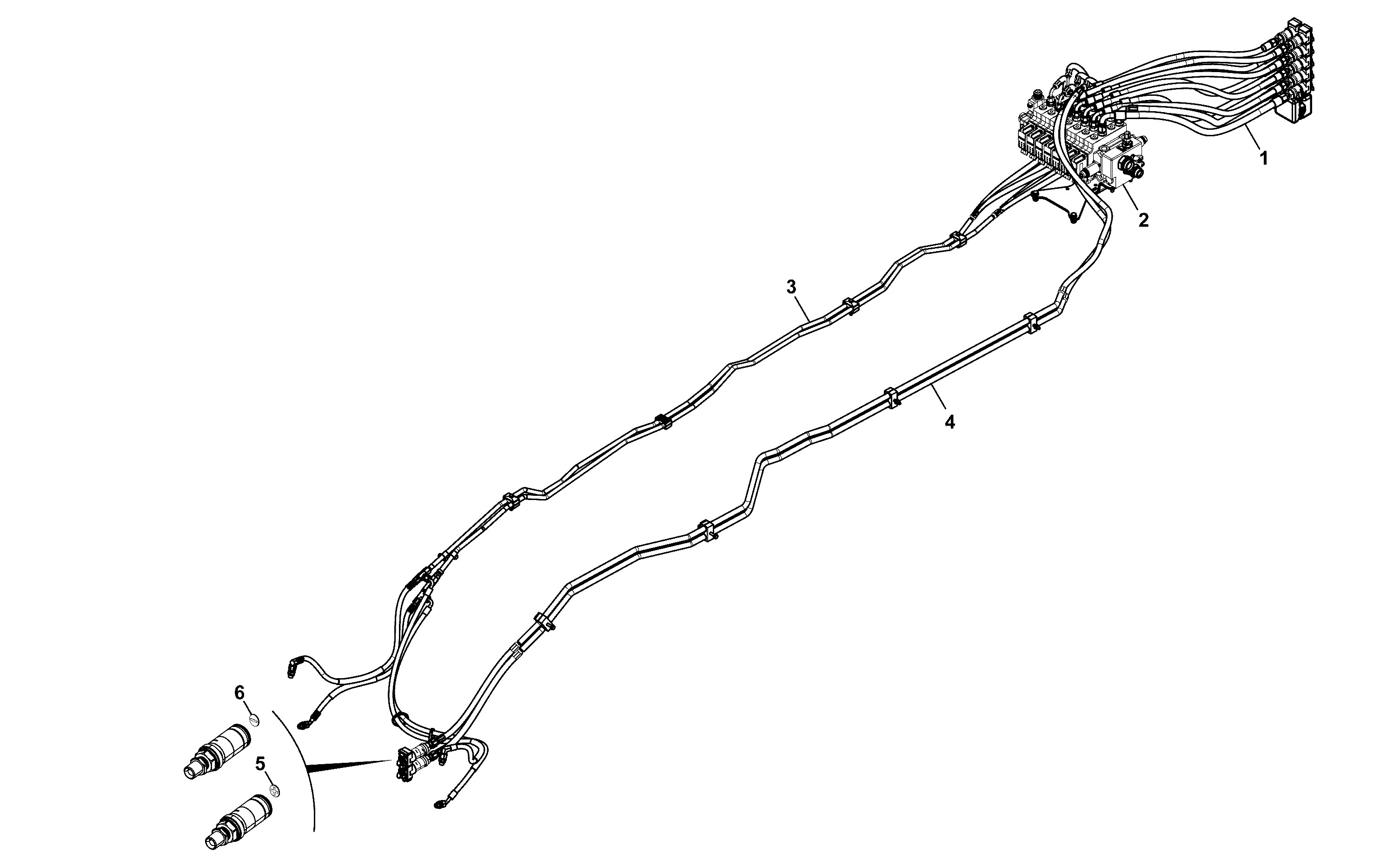

| 1 | 1ST FRONT BOTTOM HOSE PIP 400/D2586 | 1 | $422.43 | |||

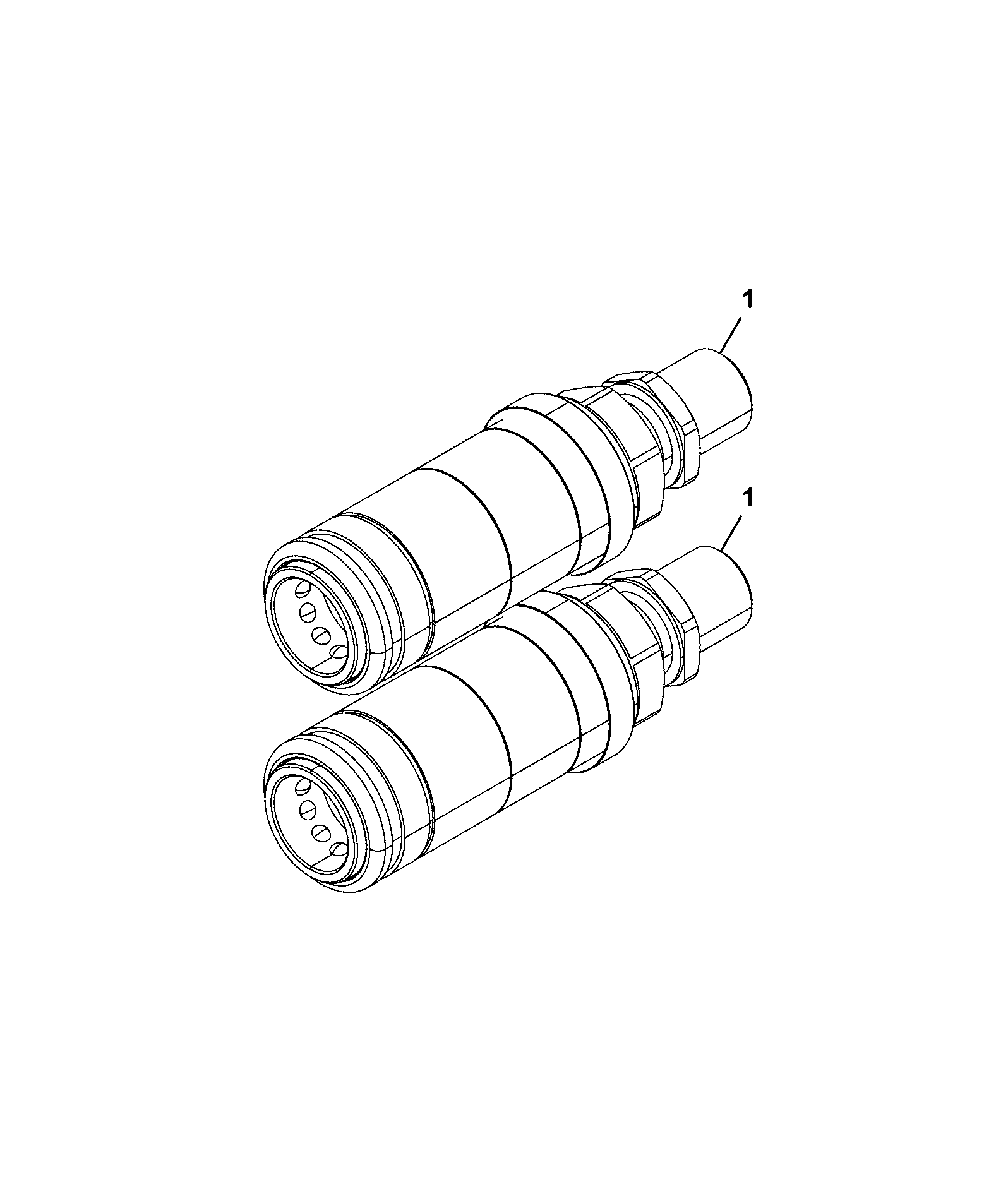

| 2 | QRC CAP (DOUBLE) 331/47570 | 1 | $121.77 | |||
| 3 | CLAMP - pairs 821/00251 | 1 | $10.30 | |||
| 4 | ADAPTOR 478/00405 | 1 | $8.88 | |||
| 5 | .0MM TEE PIECE 816/13395 | 1 | $10.54 | |||
| 6 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 7 | BOLT M8 x 1.25p x 70Lg 1315/3316D | 1 | $5.17 | |||
| 8 | BOLT SPECIAL M8X90 1315/3319D | 1 | $6.83 | |||
| 9 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 10 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
Showing 1 to 10 of 10 parts
Related Assemblies
-
DIAG-E190-190-1-393736 E190-190-1 OTHER HYDRAULIC CIRCUITS 1 SPOOL, QRC FRONT
View Diagram -

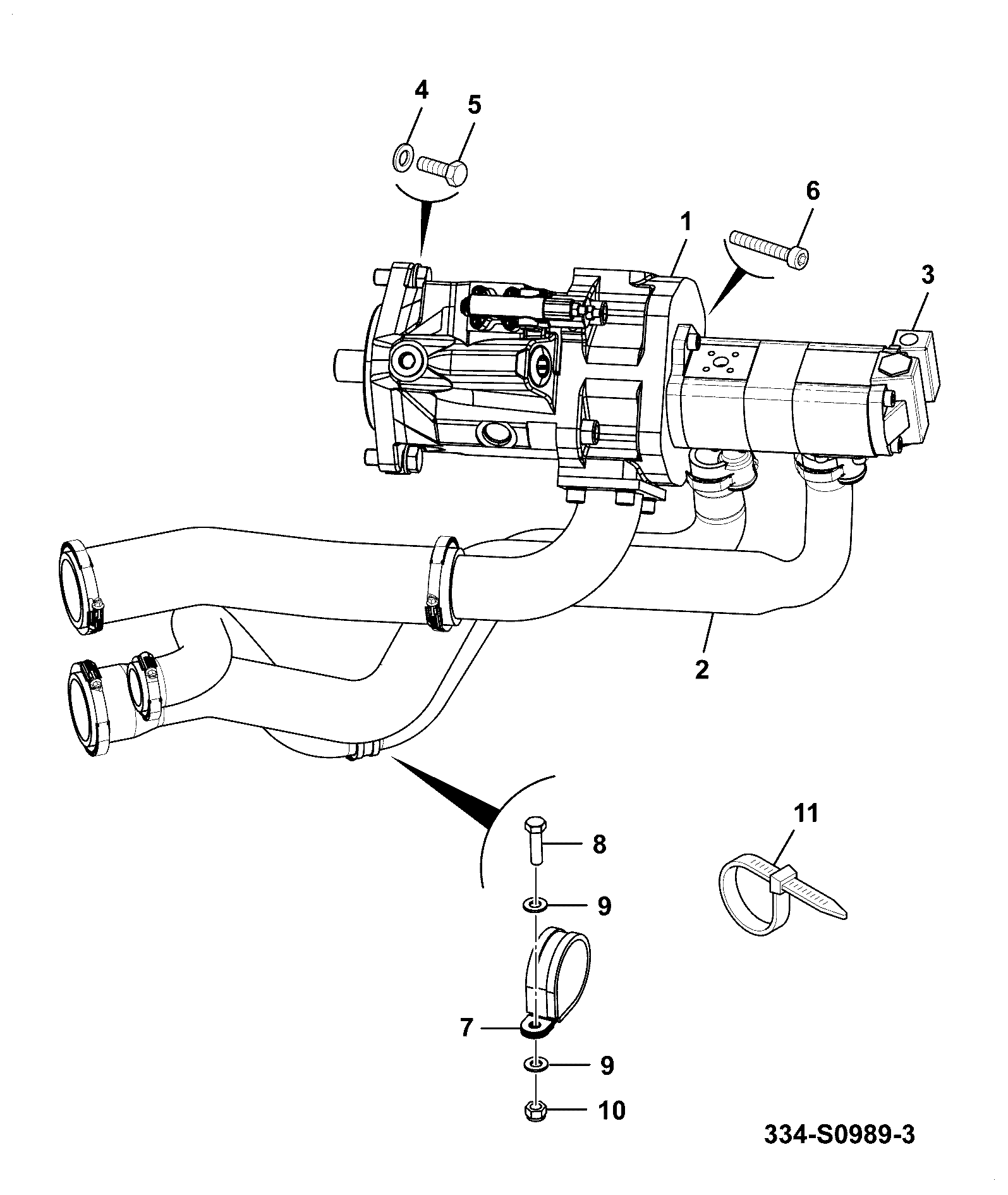

DIAG-E200-15-1-393736 E200-15-1 PUMP/MOTOR INSTALLATION ASSEMBLIES ASSEMBLY 85CC VARIABLE DISPALCEMENT PUMP
View Diagram -
DIAG-E190-183-1-393736 E190-183-1 OTHER HYDRAULIC CIRCUITS 5 RR QRC + 1 FRT + F-HITCH
View Diagram
