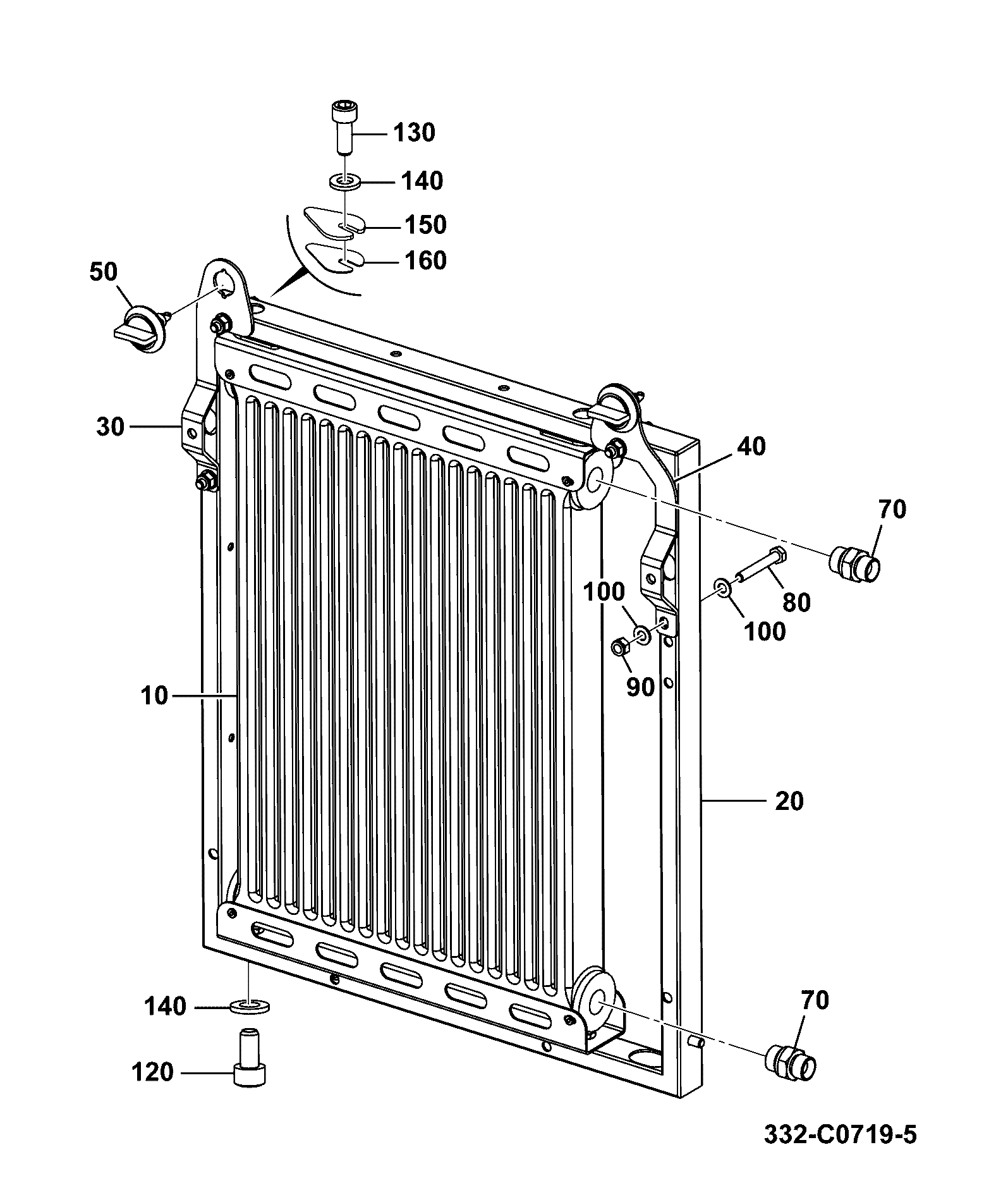

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 20 | HYD COOLER LH 1/4 TURN PLT 332/C0931 | 1 | $22.79 | |||
| 30 | HYD COOLER RH 1/4 TURN PLT 332/D3755 | 1 | $21.74 | |||
| 40 | RETAINER 478/00288 | 1 | $26.12 | |||
| 60 | WA - RH BOTTOM MTG BRKT 332/D3336 | 1 | $100.19 | |||
| 70 | NYLON WASHER M8 123/04791 | 1 | $2.82 | |||
| 90 | SET-SCREW M_6 L-30mm 1315/0208Z | 1 | $0.33 | |||
| 100 | (W) (P) SET SCREW M6x40 1315/0210Z | 1 | $6.06 | |||
| 110 | SET SCREW M8x16 1315/0303Z | 1 | $2.03 | |||
| 130 | BOLT M8x45 1315/3311Z | 1 | $2.08 | |||
| 140 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 150 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 160 | WASHER 3/8in MEDIUM 1411/0003D | 1 | $0.48 | |||
| 170 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 180 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 190 | COOLER SWING ARM 332/D1048 | 1 | $16.87 | |||
| 200 | PIVOT SPACER 332/C3140 | 1 | $4.37 | |||
| 210 | COOLER FRAME SPACER 332/C3413 | 1 | $30.96 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-
DIAG-E190-25-1-401902 E190-25-1 OTHER HYDRAULIC CIRCUITS HYDRAULIC OIL COOLER REVERSER FAN & LSV, T3
View Diagram -
DIAG-E200-105-1-401902 E200-105-1 PUMP/MOTOR INSTALLATION ASSEMBLIES RECOVERY PUMP
View Diagram -
DIAG-E130-40-1-401902 E130-40-1 HYDRAULIC CIRCUITS CHASSIS MAIN HYDRAULICS WITH SWAY
View Diagram
