Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | WA STEER PIPES 333/D9525 | 1 | $394.27 | |||
| 20 | TWIN CLAMP MOULDING 821/00347 | 1 | $31.20 | |||
| 30 | CLAMP COVER PLATE 821/00335 | 1 | $8.08 | |||
| 40 | TRIPLE PIPE CLAMP (PAIRS) 821/00487 | 1 | $19.12 | |||
| 50 | PIPE CLAMP COVER 821/00488 | 1 | $20.30 | |||
| 60 | BOLT M6X90 1315/3219Z | 1 | $6.05 | |||
| 70 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 80 | BOLT M8x45 1315/3311Z | 1 | $2.08 | |||
| 90 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 100 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 110 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 120 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 130 | HOSE 3/8BSP 910mm 612/27100 | 1 | $119.25 | |||
| 140 | HOSE 3/8BSP 725mm 612/00300 | 1 | $79.47 | |||
| 150 | HOSE 3/8BSP 735mm 612/30000 | 1 | $96.44 | |||
| 160 | HOSE 1/4BSP 790mm 611/21800 | 1 | $88.45 | |||
| 170 | HOSE -04 BSP HP 650mm C 333/G9783 | 1 | $72.47 | |||
| 170 | HOSE 1/4BSP 620mm 611/80051 | 1 | $51.71 | |||
| 180 | BOLT M8x35 1315/3309Z | 1 | $1.97 | |||
| 190 | Hose 612/80096 | 1 | $57.89 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-

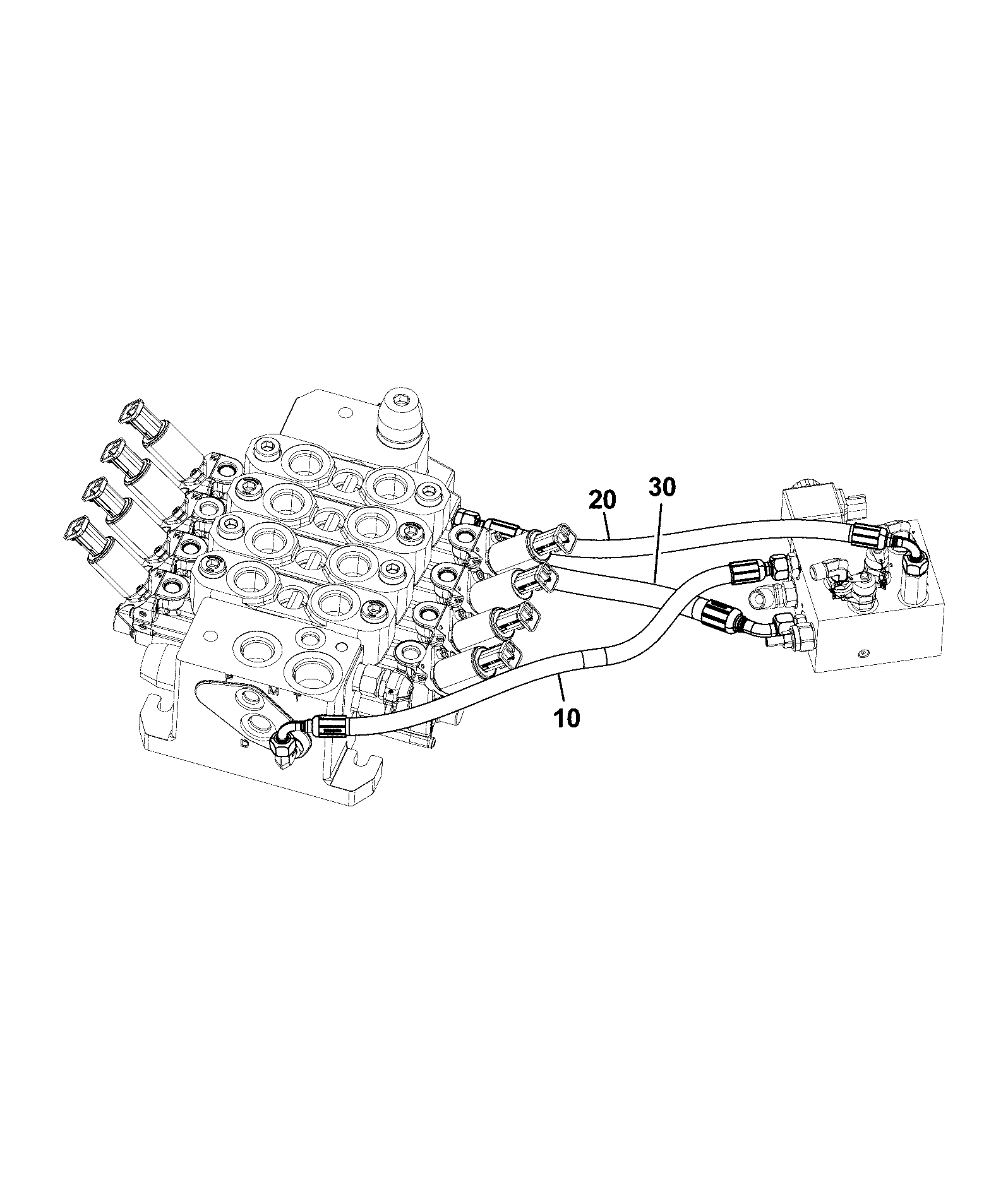

DIAG-E190-10-1-401793 E190-10-1 OTHER HYDRAULIC CIRCUITS HOSE INSTALLATION PILOT VALVE
View Diagram -

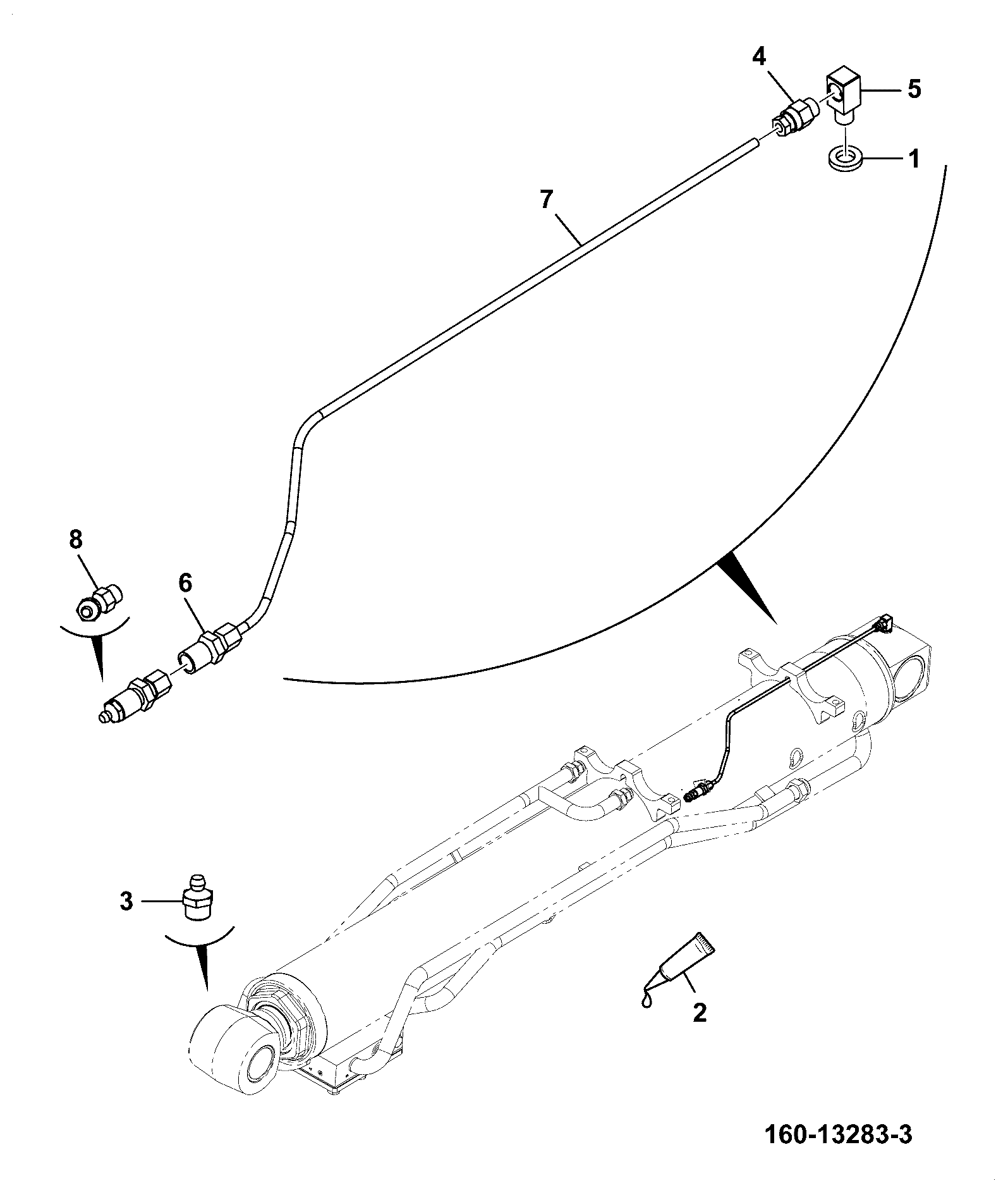

DIAG-E190-5-1-401793 E190-5-1 OTHER HYDRAULIC CIRCUITS RAM GREASER
View Diagram -

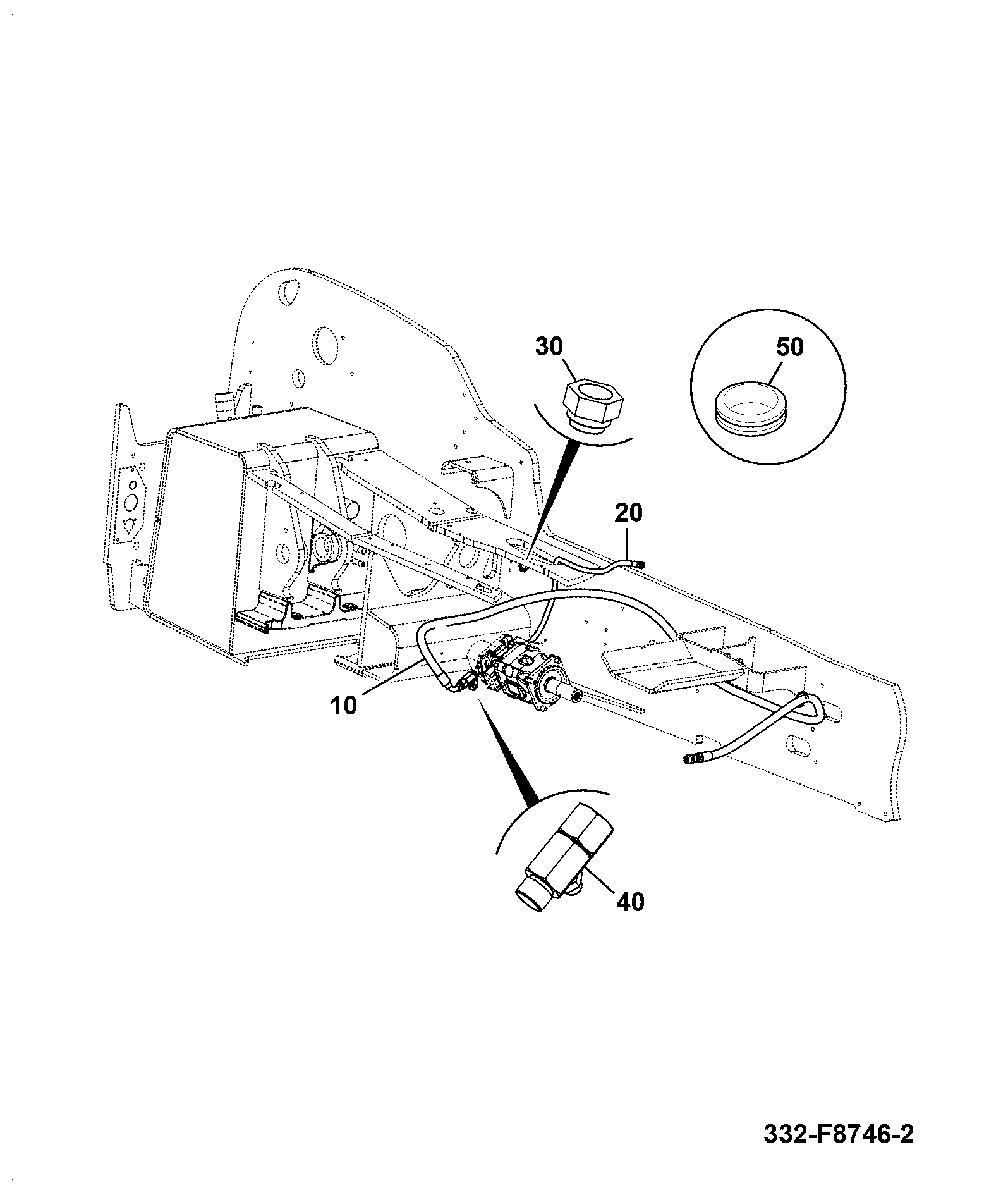

DIAG-E190-45-1-401793 E190-45-1 OTHER HYDRAULIC CIRCUITS STANDARD CIRCUIT
View Diagram
