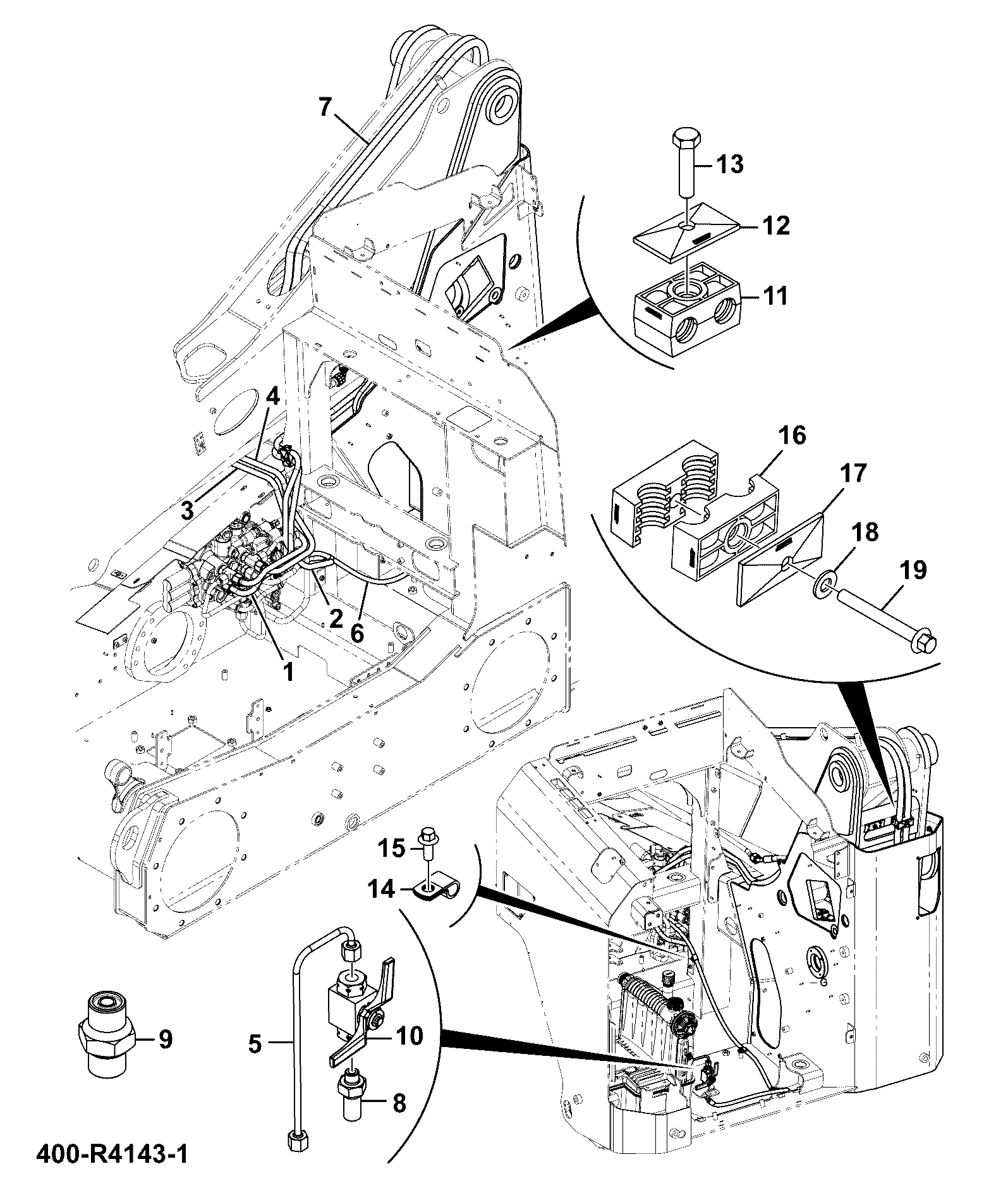

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | TUBE ASSY - 2A LP RL HV/T 400/X1643 | 1 | $267.27 | |||
| 2 | TUBE ASSY - 2B LP RL HV/T 400/S2767 400/X1620 | 1 | $343.21 | |||
| 3 | TUBE ASSY - 1A LP RL HV/T 400/R4556 | 1 | $90.32 | |||
| 4 | TUBE ASSY - 1B LP RL HV/T 400/R4555 | 1 | $550.31 | |||
| 5 | TUBE ASSY - DEL LP NXG 401/M7501 | 1 | $346.94 | |||
| 6 | HOSE -4 ORFS HP 1650mm C 400/T3204 | 1 | $112.66 | |||
| 7 | HOSE -10 ORFS HP 3925mm A 400/R4107 | 1 | $317.05 | |||
| 8 | ADA ORFS M-06/M-06 EXT .BULKHEAD 1706/0606 | 1 | $25.44 | |||
| 9 | ADAPTOR ORFS M -04/SAE ORB -06 1751/0604 | 1 | $3.79 | |||
| 10 | BALL VALVE 332/X7161 | 1 | $50.04 | |||
| 11 | PIPE CLAMP TWIN-10 332/X1892 | 1 | $4.83 | |||
| 12 | CLAMP - TWIN COVER PLATE 332/X2337 | 1 | $2.38 | |||
| 13 | BOLT M8x35 1315/3309Z | 1 | $1.97 | |||
| 14 | P-CLIP 18mm 332/X8091 | 1 | $2.78 | |||
| 15 | FLANGED BOLT M8x20(KANBAN) (BR3) 1317/3305Z | 1 | $0.98 | |||
| 16 | PIPE CLAMP TWIN -12 332/X1893 | 1 | $1.64 | |||
| 17 | CLAMP-TWIN COVER PLATE 332/X1906 | 1 | $1.08 | |||
| 18 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 19 | (W) (P) BOLT M8x50 1315/3312Z | 1 | $3.83 | |||
| 20 | HOSE -10 ORFS HP 3925mm A 400/X8905 | 1 | $315.11 | |||
Showing 1 to 20 of 20 parts
