E190-115-5 OTHER HYDRAULIC CIRCUITS DRAIN AND PILOT HOSES, TIER 4 FINAL

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
5	HOSE 1/4BSP 275mm 611/28000	1	AVAILABLE TO ORDER	$50.80	Quantity
6	1/4" BSP HOSE 1940MM 649/51925	1	AVAILABLE TO ORDER	$56.22	Quantity
7	CABLE TIE-225MM 826/01092	1	AVAILABLE TO ORDER	$4.11	Quantity
12	HOSE-04 BSP HP 850mm B 334/G2027	1	AVAILABLE TO ORDER	$87.49	Quantity

Showing 1 to 4 of 4 parts

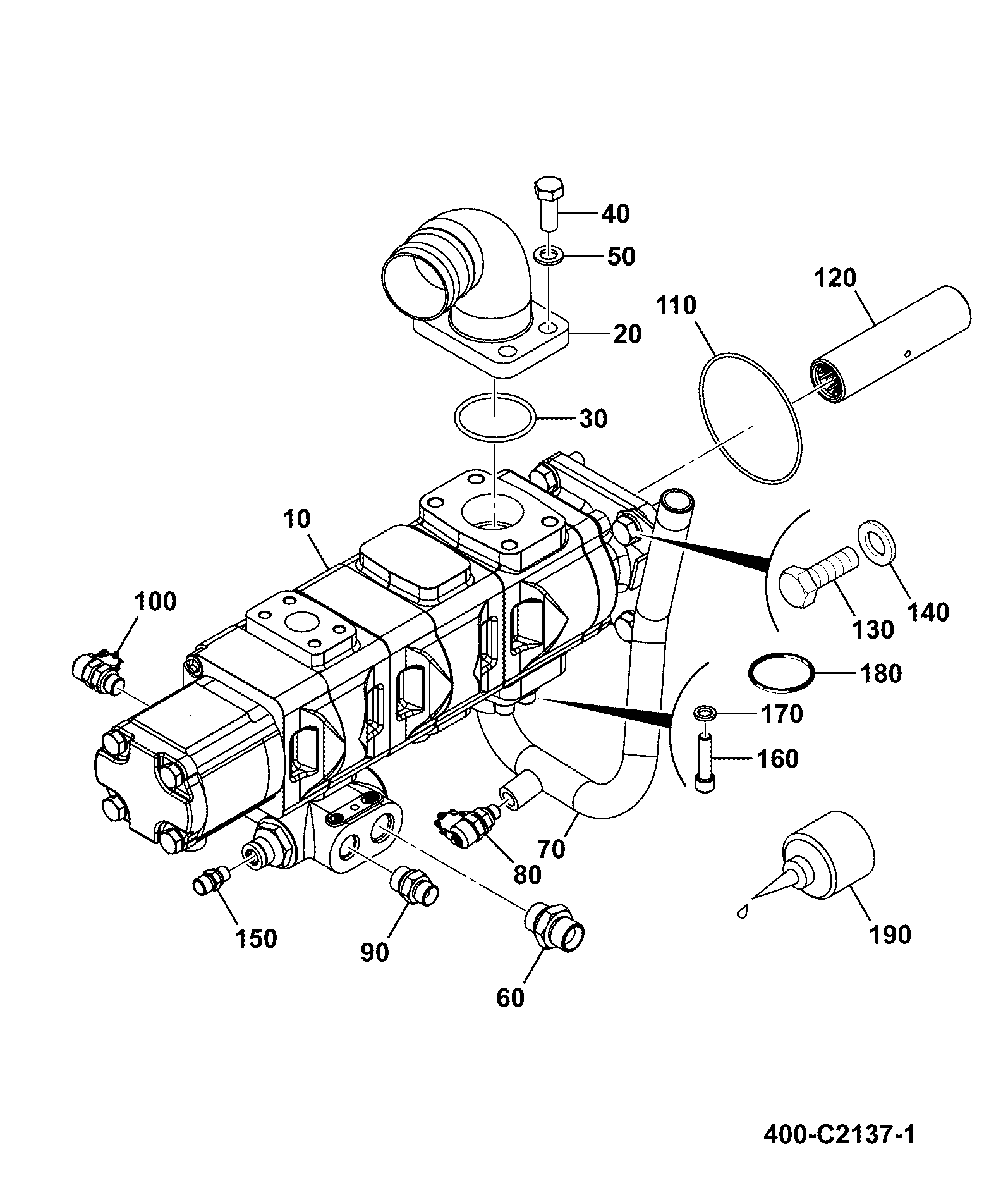

DIAG-E200-40-1-400393 E200-40-1 PUMP/MOTOR INSTALLATION ASSEMBLIES 4 STAGE PUMP
View Diagram

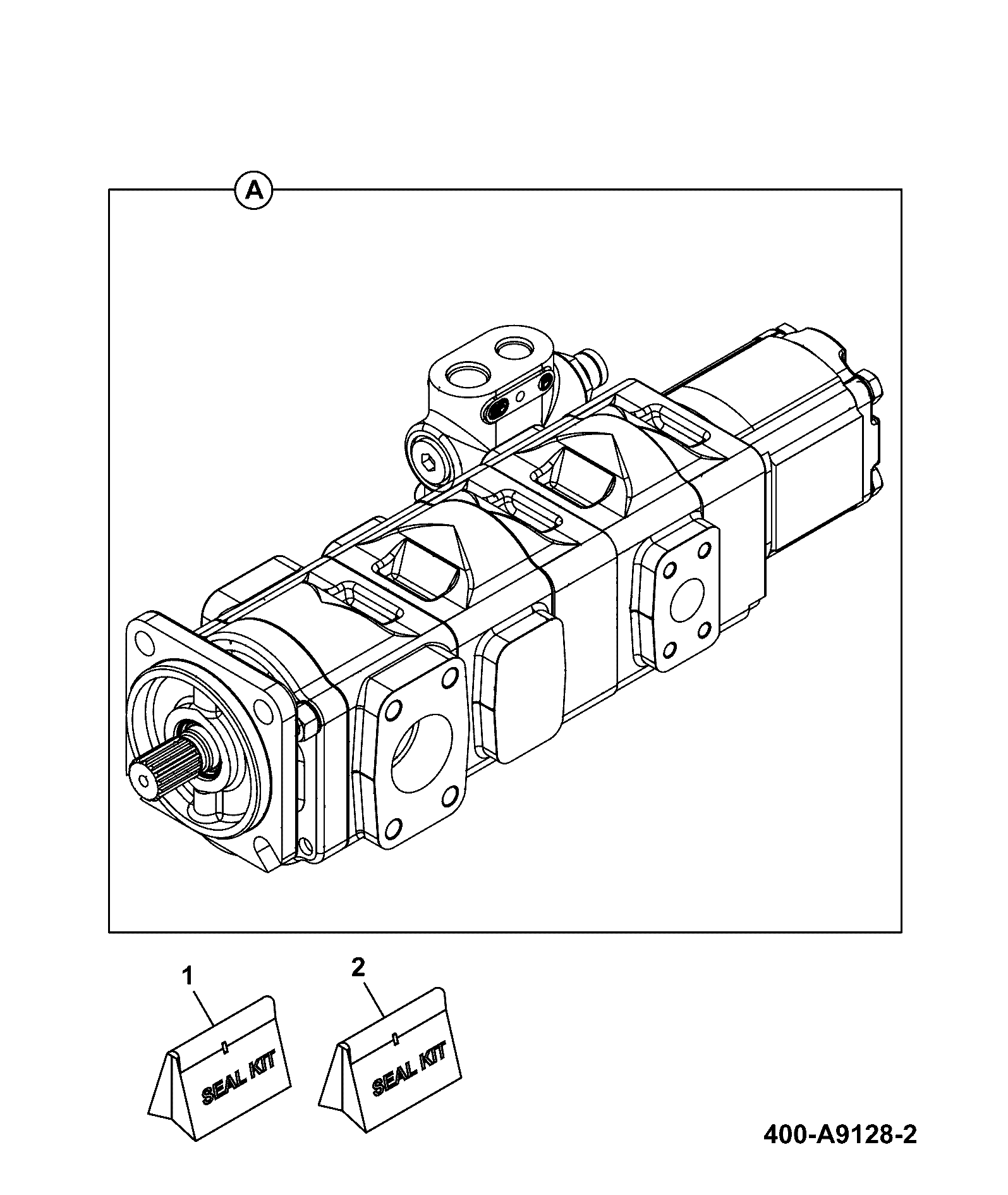

DIAG-E260-5-1-400393 E260-5-1 OTHER HYDRAULIC PUMPS 4-STAGE PUMP
View Diagram

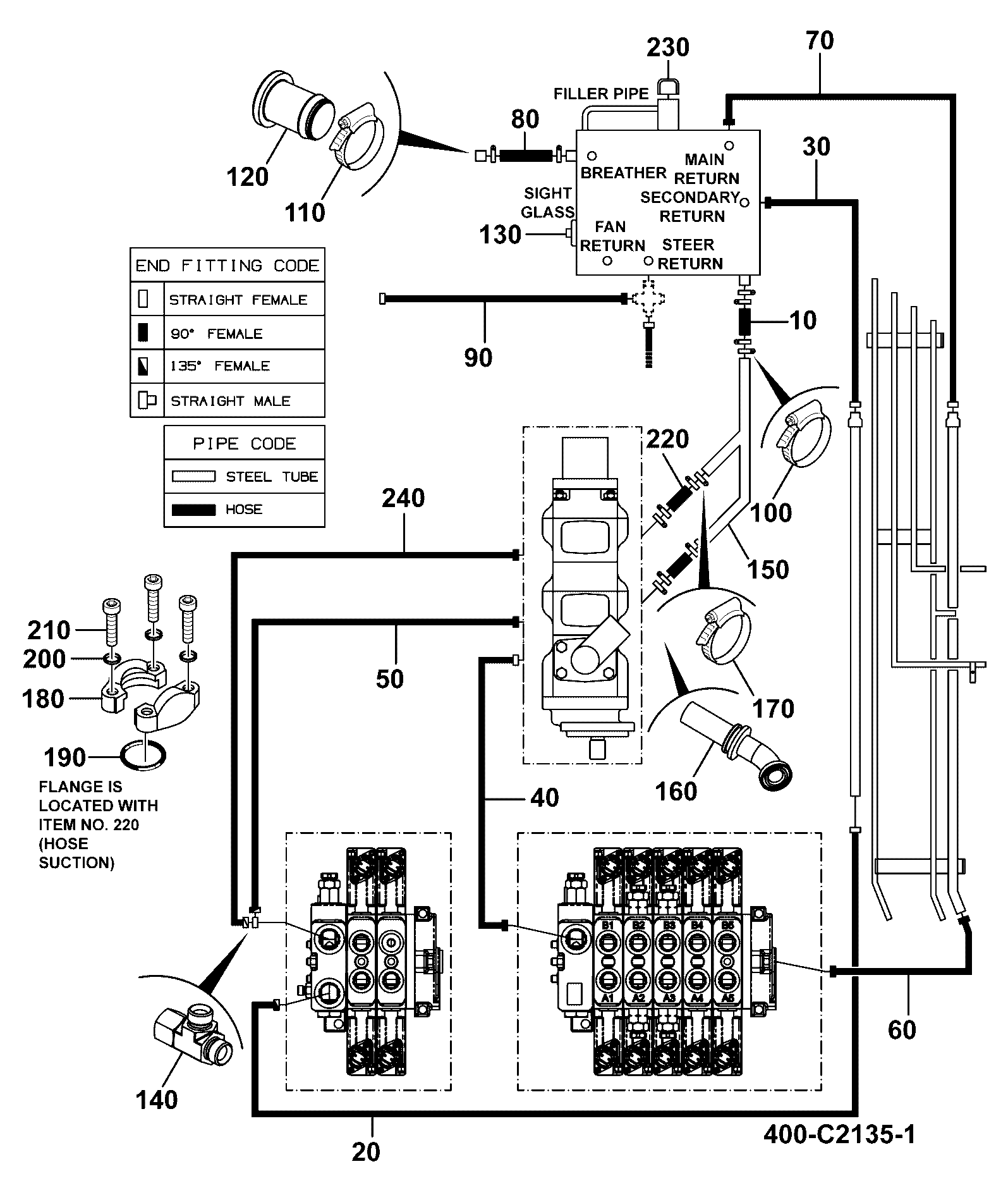

DIAG-E100-155-1-400393 E100-155-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES 55KW
View Diagram
