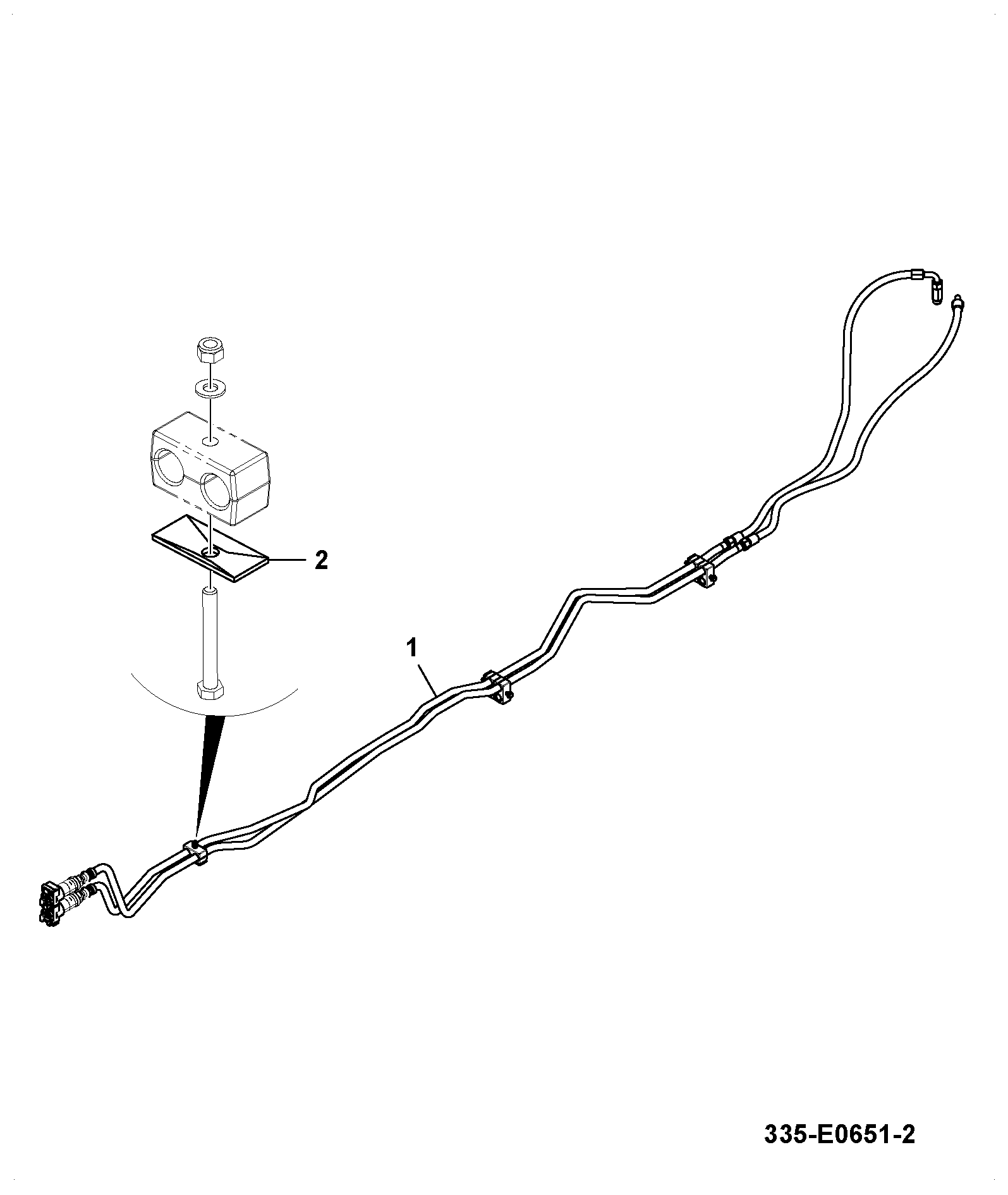

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | QRC CAP (DOUBLE) 331/47570 | 1 | $121.77 | |||
| 2 | QRC 3/8"BSP FEMALE 45/920060 335/D2868 | 1 | $161.07 | |||
| 3 | HOSE 477/00471 | 1 | $50.87 | |||
| 5 | PIPE FRONT UTILITY AUX 3+ 334/W2888 | 1 | $335.74 | |||
| 6 | PIPE FRONT UTILITY AUX 3- 334/W2891 | 1 | $340.14 | |||
| 7 | HOSE CLAMP 16mm 821/10503 | 1 | $2.86 | |||
| 8 | CLAMP COVER PLATE 821/00335 | 1 | $8.08 | |||
| 9 | (W) Screw 1315/0314D | 1 | $6.18 | |||
| 10 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 11 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 12 | ADAPTOR 478/00663 | 1 | $14.52 | |||
| 13 | 3/8BSP HP HOSE 820MM 612/80325 | 1 | $96.44 | |||
| 14 | HOSE 3/8BSP 910mm 612/27100 | 1 | $119.25 | |||
| 15 | BOLT SPECIAL M8X90 1315/3319D | 1 | $6.83 | |||
| 16 | HOSE 3/8BSP 560mm 612/80169 | 1 | $71.20 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-
DIAG-E190-95-1-393665 E190-95-1 OTHER HYDRAULIC CIRCUITS 1 FRONT AUX SPOOL ONLY AG
View Diagram -
DIAG-E190-120-1-393665 E190-120-1 OTHER HYDRAULIC CIRCUITS FRONT UTILITY AUX2
View Diagram -
DIAG-E190-80-1-393665 E190-80-1 OTHER HYDRAULIC CIRCUITS HYDRAULIC CIRCUIT AUX1 FRONT
View Diagram
