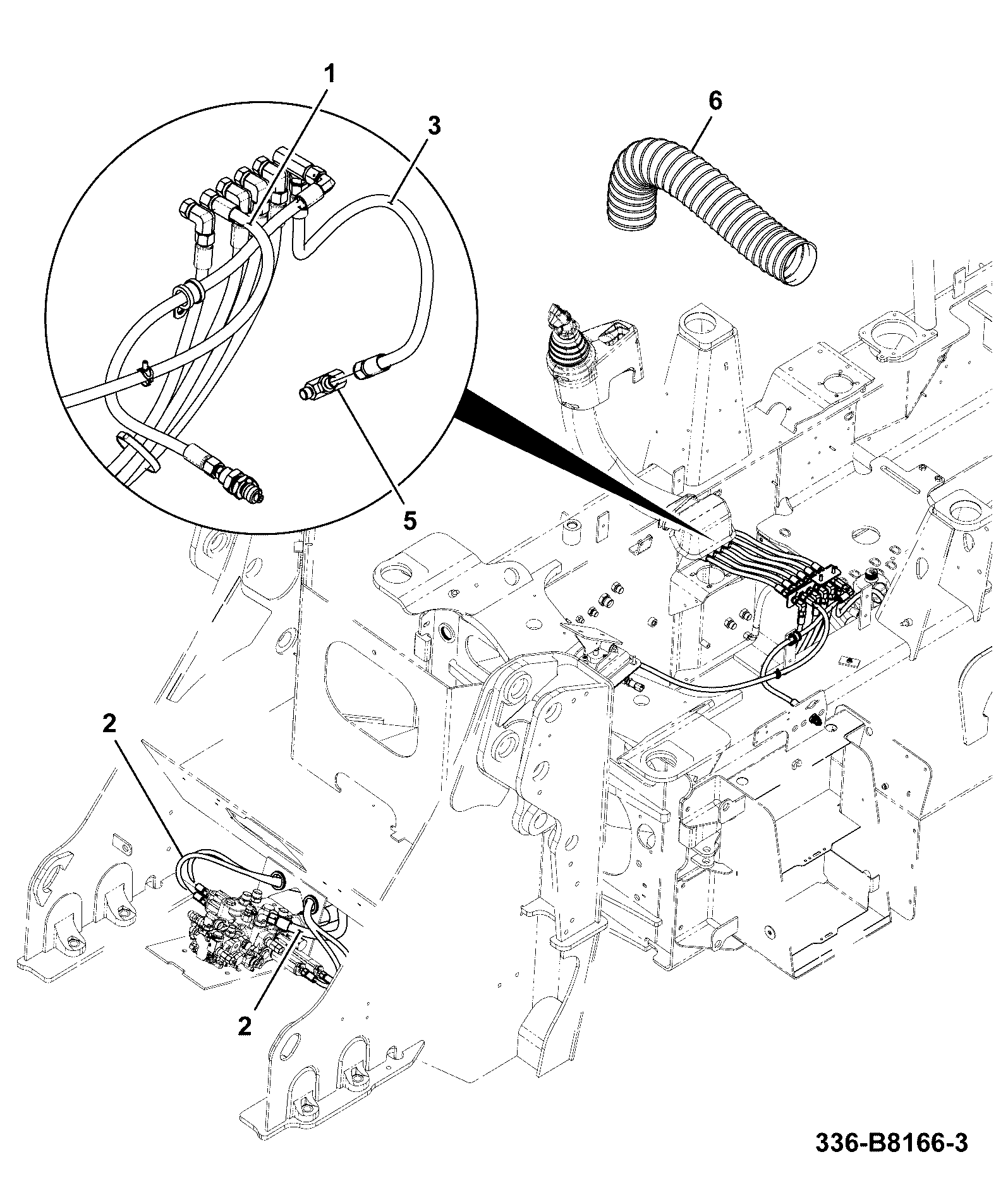

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | HOSE CLUSTER PLATE 334/V1283 | 1 | $61.84 | |||
| 2 | HOSE 1/4BSP 350mm 611/25600 | 1 | $56.31 | |||
| 3 | ADAPTOR-BULKHEAD G1/4A TO 400/A4563 | 1 | $10.37 | |||
| 4 | SCREW M8x25 BUTTON SOCKET (P564) 826/01554 | 1 | $3.46 | |||
| 6 | WASHER 1/2 1417/0014Z 1417/0014D | 1 | $1.16 | |||
| 7 | SPACER 17x25x6 823/10887 | 1 | $10.20 | |||
| 8 | HOSE -4 BSP 400mm 611/20800 336/F4266 | 1 | $22.31 | |||
Showing 1 to 7 of 7 parts
Related Assemblies
-
DIAG-E190-100-5-404504 E190-100-5 OTHER HYDRAULIC CIRCUITS CIRCUIT STEER HOSES COMMON
View Diagram -
DIAG-E190-115-1-404504 E190-115-1 OTHER HYDRAULIC CIRCUITS CIRCUIT FF JOYSTICK CONTROL HOSING
View Diagram -
DIAG-E190-100-1-404504 E190-100-1 OTHER HYDRAULIC CIRCUITS CIRCUIT STEER HOSES COMMON
View Diagram
