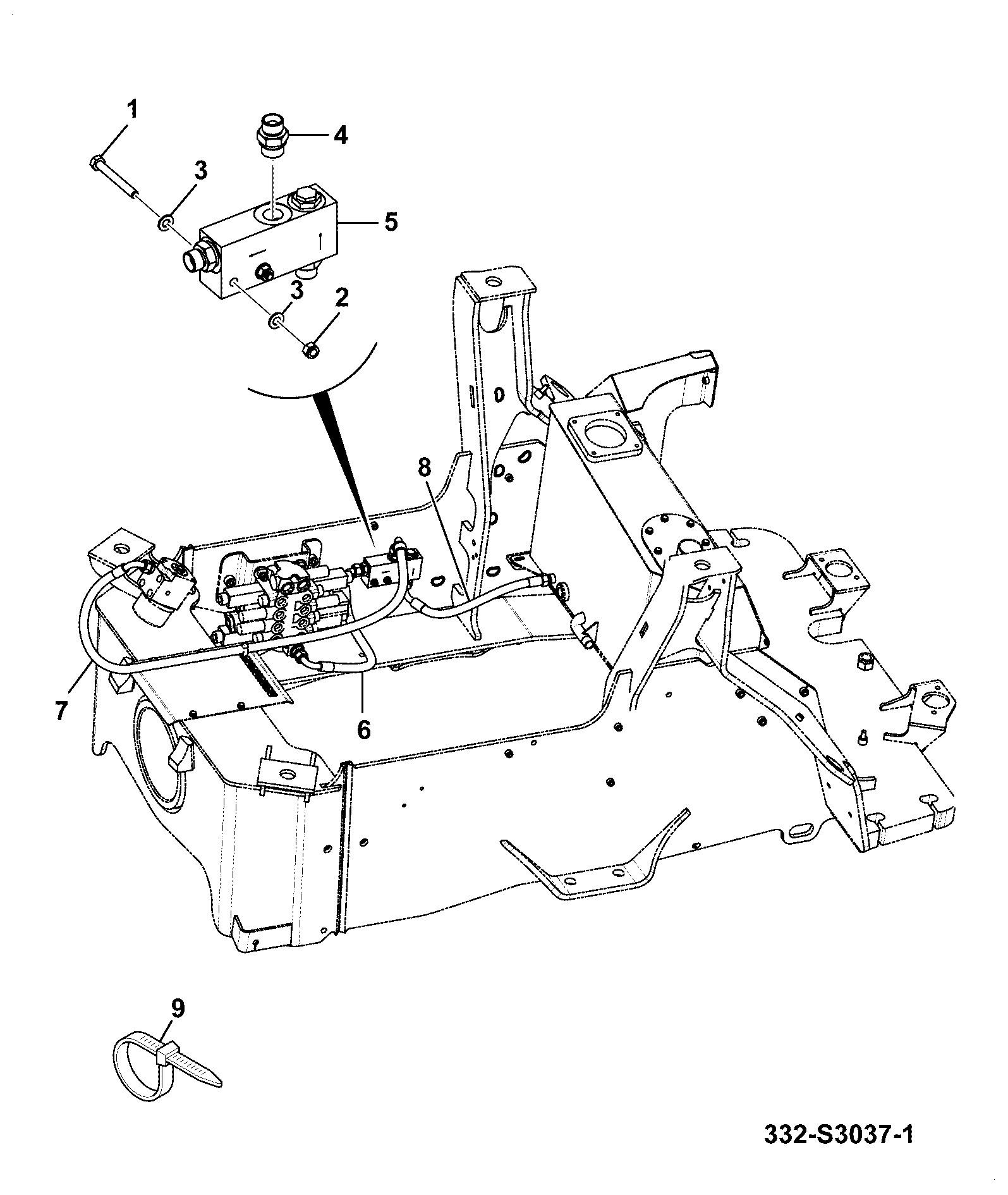

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ADAPTOR G3/4A X 7/8 SAE 1620/2058 | 1 | $5.52 | |||
| 2 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 3 | HOSE 3/4BSP 740mm 615/80067 | 1 | $112.44 | |||
| 4 | HOSE 635/50300 | 1 | $171.03 | |||
| 5 | HOSE 3/8" BSP 612/03700 | 1 | $57.89 | |||
| 6 | HOSE - 3/8 1125MM 332/T4154 | 1 | $60.20 | |||
| 7 | TWIN CLAMP MOULDING 821/00347 | 1 | $31.20 | |||
| 8 | CLAMP COVER PLATE 821/00335 | 1 | $8.08 | |||
| 9 | SETSCREW M8x35 1315/0309D | 1 | $2.40 | |||
| 10 | BOLT SPECIAL M8X90 1315/3319D | 1 | $6.83 | |||
| 11 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 14 | T-ADAPTOR - 3/8-3/8-3/8BS 402/X3660 | 1 | $25.80 | |||
| 18 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 19 | SET SCREW M6x35 1315/0209D | 1 | $0.58 | |||
| 20 | HOSE CLAMP ; 17.2mm 821/00286 | 1 | $29.33 | |||
| 22 | HOSE GUIDE - LIFT RAM 332/T5986 | 1 | $2.15 | |||
| 23 | COVER PLATE 821/00155 | 1 | $0.89 | |||
| 26 | HOSE 12 BSP LP 2040MM C 25AM/EH204 | 1 | $169.98 | |||
| 27 | WORM DRIVE SPRING CLIP 10 2206/1012 | 1 | $17.09 | |||
| 28 | HOSE - 3/8 3650MM 332/T4158 | 1 | $337.06 | |||
| 29 | HOSE - 3/8 3340 MM 332/T4139 | 1 | $157.36 | |||
| 30 | SET SCREW M8x50 1315/0312D | 1 | $3.37 | |||
| 32 | SPIRAL GUARD 3/4 550mm 332/D3552 | 1 | $24.09 | |||
Showing 1 to 24 of 24 parts
