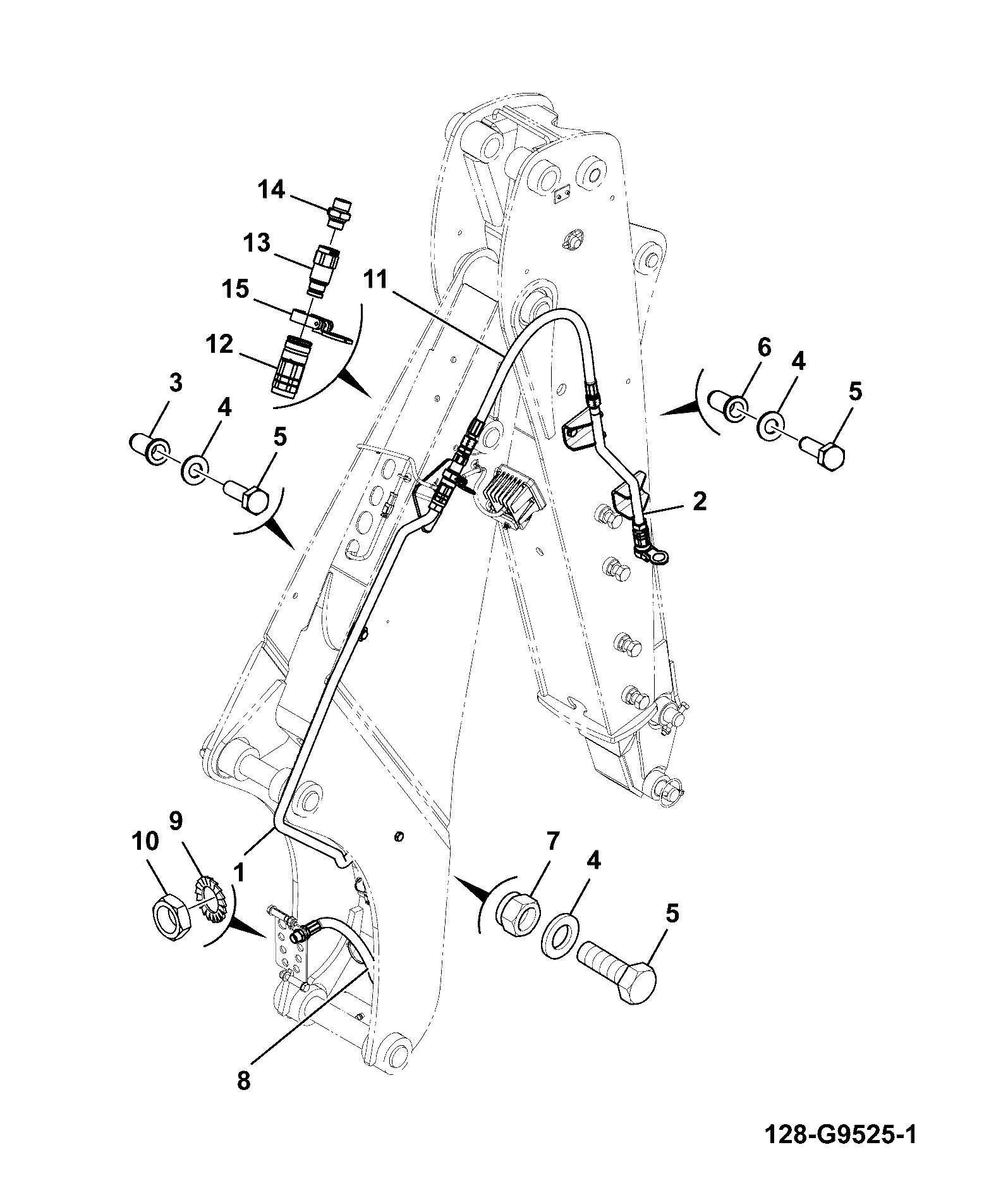

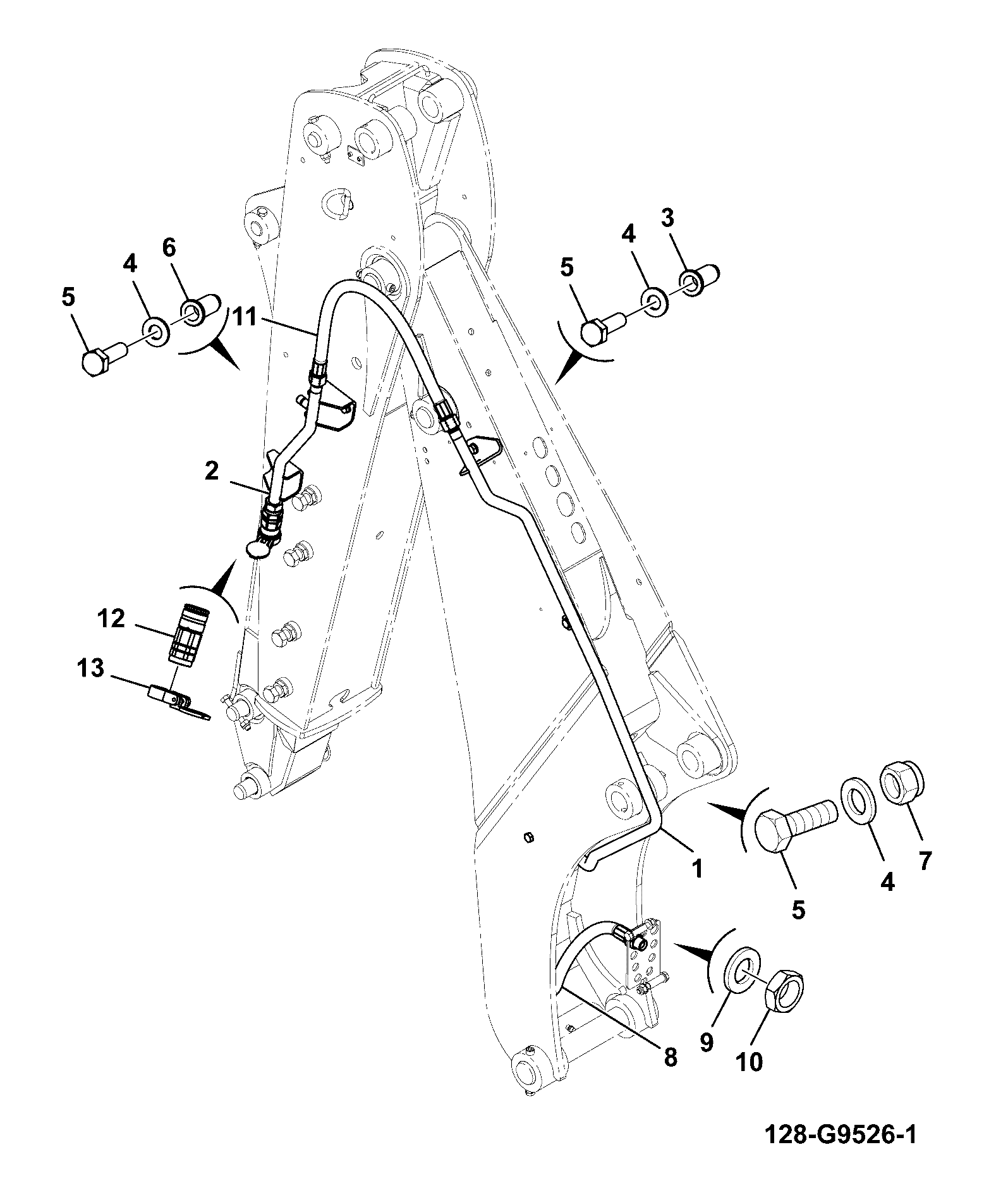

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | HOSE 3/8 BSP HP 1000A TC+ 334/G0314 | 1 | $68.09 | |||
| 2 | COUPLING QR MALE 10 -8SAE 45/920050 | 1 | $103.37 | |||
| 3 | WA HOSE GUIDE 335/05717 | 1 | $40.61 | |||
| 4 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 5 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 6 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 7 | HOSE 3/8 BSP HP 1120B TC+ 400/M7354 | 1 | $93.08 | |||
| 8 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 9 | HOSE CLAMP ; 17.2mm 821/00286 | 1 | $29.33 | |||
| 10 | (W) (P) BOLT M6x70 1315/3216Z | 1 | $7.13 | |||
| 11 | BOLT M6x35 1315/3209Z | 1 | $0.81 | |||
| 12 | WA SOCKET extdip lockpin 335/04539 335/09631 | 1 | $158.85 | |||
| 13 | COVER PLATE 821/00155 | 1 | $0.89 | |||
Showing 1 to 13 of 13 parts
