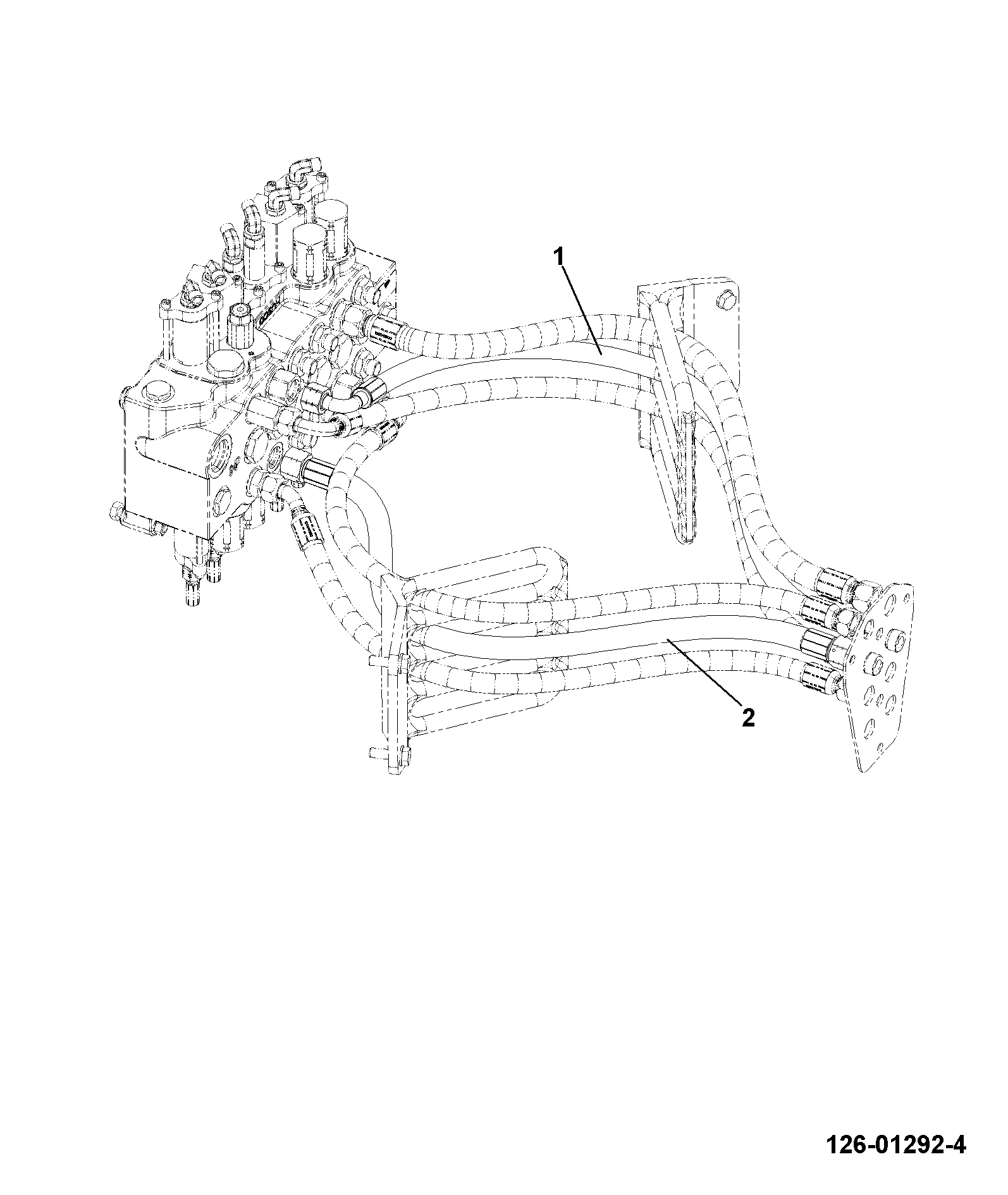

E140-4-1 HYDRAULIC CIRCUITS EXCAVATOR END RETURN PIPE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Part Number	Qty.	Avl.	Price (USD)	Action
DRAIN PLUG - NON-MAGNETIC 816/80037	1	AVAILABLE TO ORDER	$25.01	Quantity
WA RETURN FEED PIPE 333/Y2388	1	AVAILABLE TO ORDER	$71.27	Quantity
WASHER BONDED 1" BSP 1406/0021	1	9 IN STOCK	$6.00	Quantity

Showing 1 to 3 of 3 parts
