Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA.PIPE BOOM RAM 128/C8423 | 1 | $328.16 | |||
| 2 | CLIP - WORMDRIVE 120/140mm(KANBAN) 2201/0017 | 1 | $11.32 | |||
| 3 | PIPE SUPPORT 559/90035 821/10425 | 1 | $2.24 | |||
| 4 | HOSE 3/8 BSP HP 17 332/H4916 | 1 | $90.44 | |||
| 5 | HOSE 3/8 BSP HP 2200 333/E1796 | 1 | $124.25 | |||
| 6 | BACK NUT 3/8 BSP (3CX COMPACT) 1356/0203Z | 1 | $4.41 | |||
| 7 | GROMMET 2410/0214 | 1 | $15.09 | |||
Showing 1 to 7 of 7 parts
Related Assemblies
-

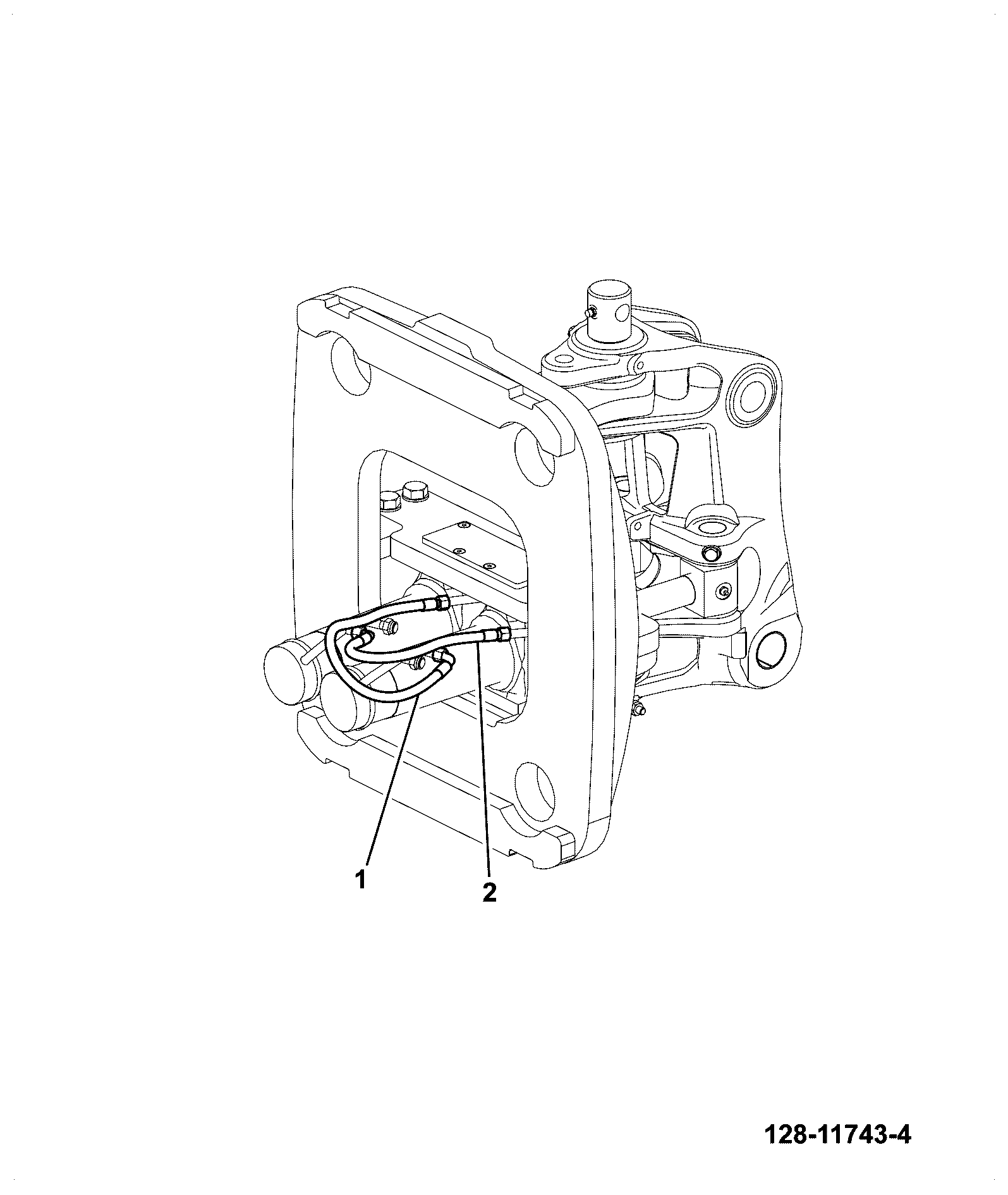

DIAG-E140-27-4-394725 E140-27-4 HYDRAULIC CIRCUITS EXCAVATOR END SLEW LINK HOSES
View Diagram -

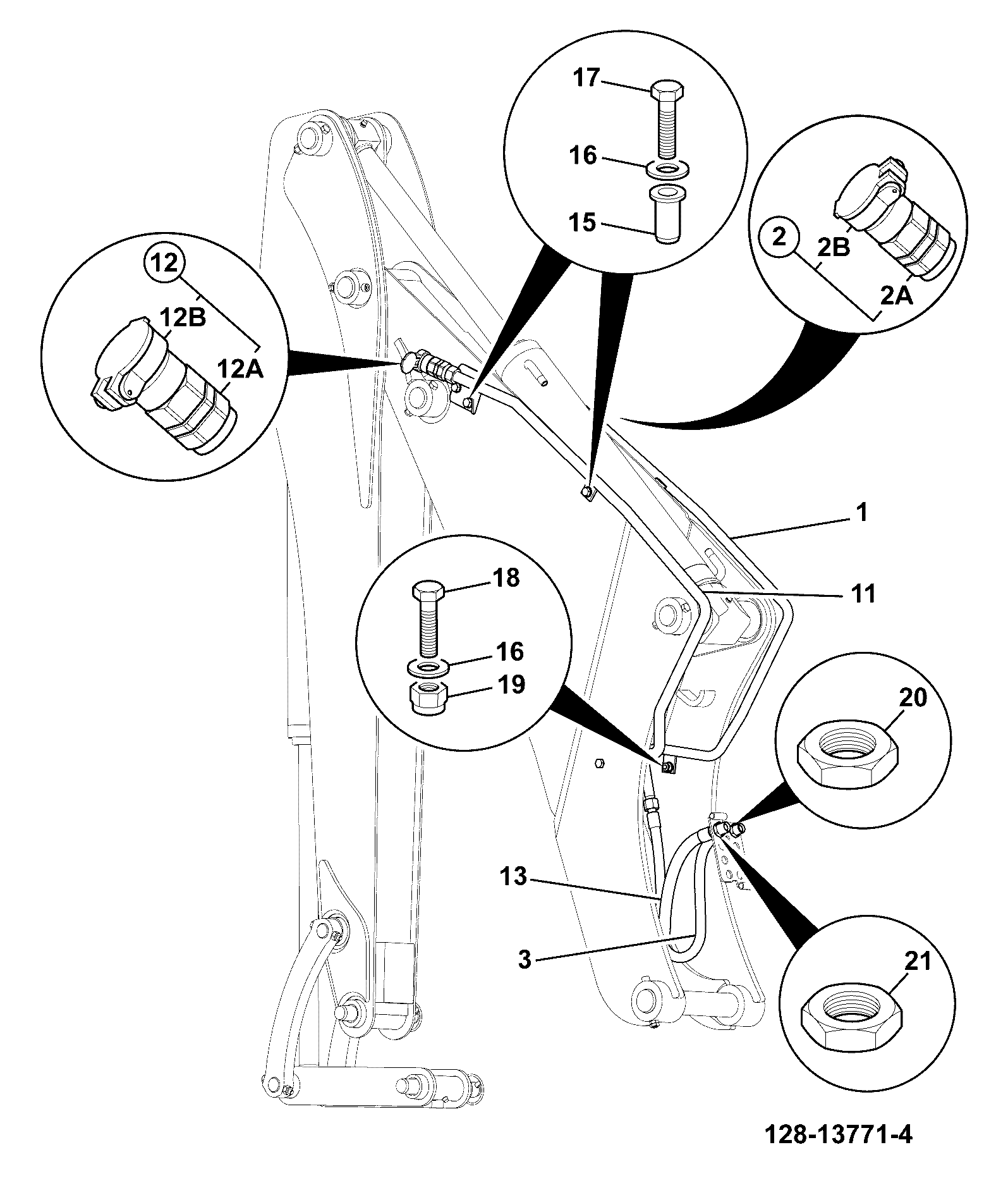

DIAG-E140-33-4-394725 E140-33-4 HYDRAULIC CIRCUITS EXCAVATOR END HAMMER FEED AND RETURN, 10'
View Diagram -

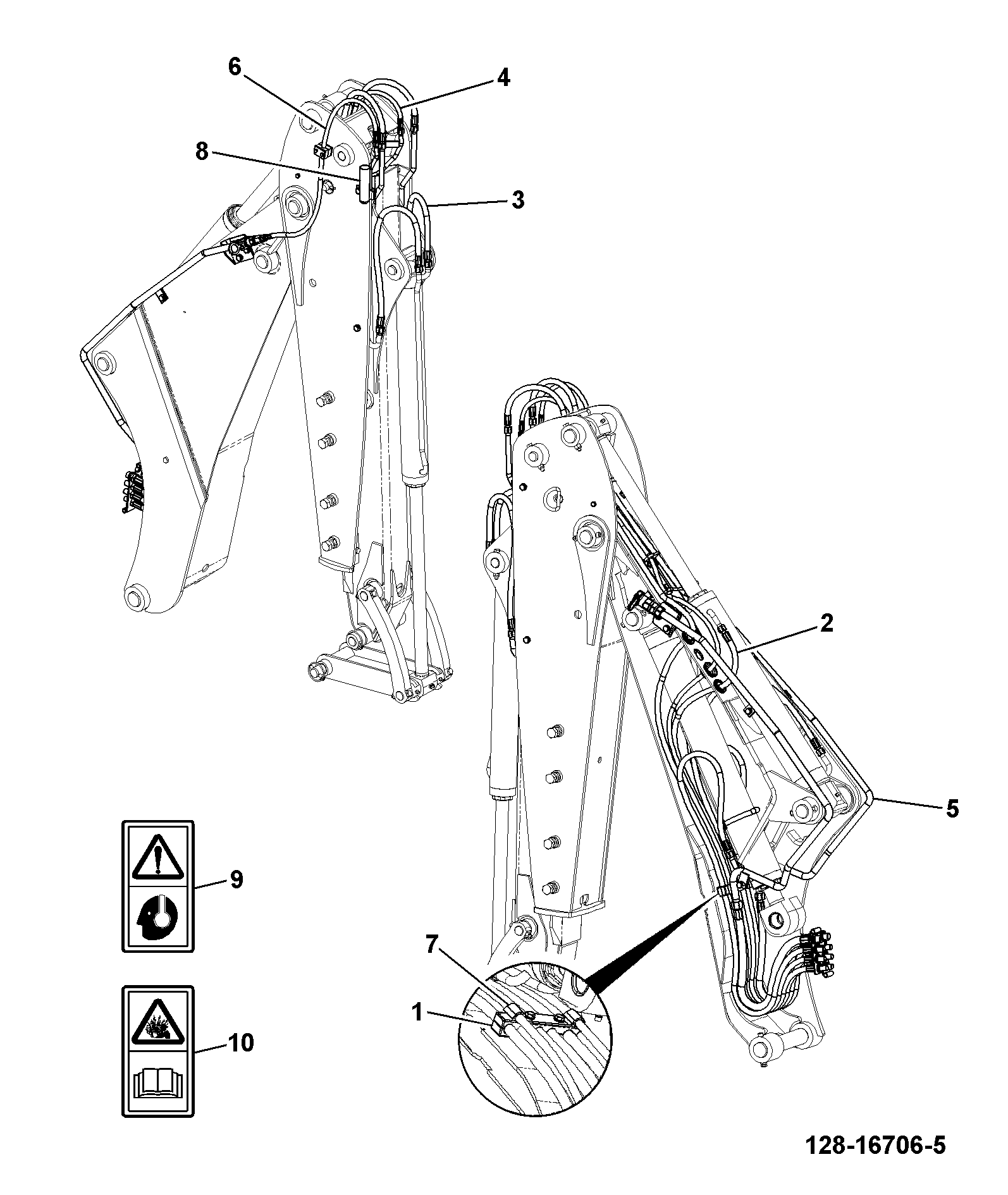

DIAG-E140-8-5-394725 E140-8-5 HYDRAULIC CIRCUITS EXCAVATOR END EXTENDING DIPPER KINGPOST TO RAMS 10'
View Diagram
