Scroll to zoom Click a part # to view details

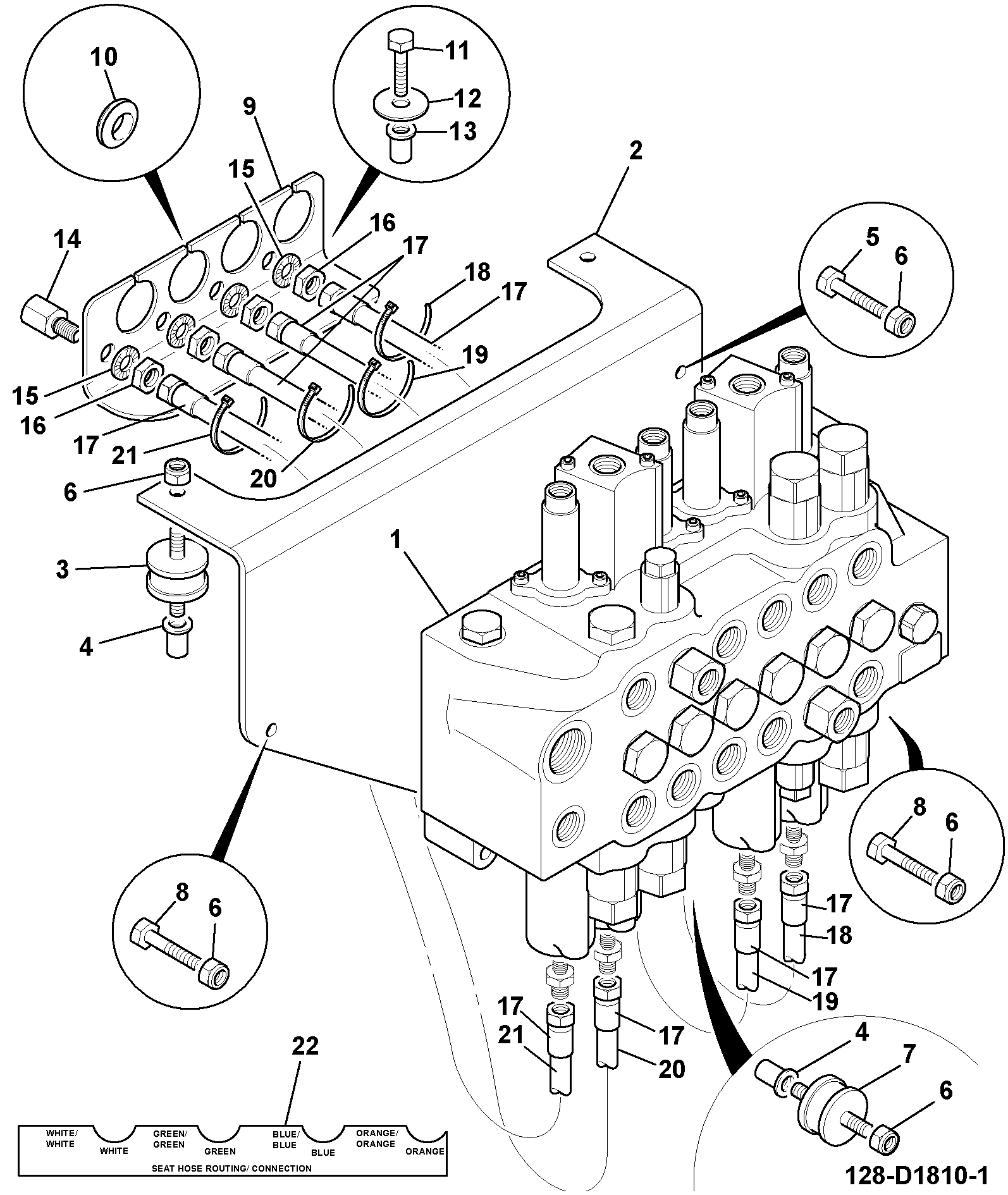

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | EXC VALVE S/S ecH 334/E8780 | 1 | $8,803.65 | |||
| 2 | MOUNT excavator valve PCH 331/62174 | 1 | $73.12 | |||
| 3 | RESILIENT MOUNT 332/F7840 331/57284 | 1 | $82.68 | |||
| 4 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 5 | BOLT M10x60 1315/3414Z | 1 | $1.95 | |||
| 6 | FLANGED LOCKNUT M10 826/01787 | 1 | $0.71 | |||
| 7 | BOBBIN MOUNT M10 332/F7841 | 1 | $12.92 | |||
| 8 | BOLT M10x55 1315/3413Z | 1 | $3.49 | |||
| 10 | GROMMET 2410/0114 | 1 | $16.86 | |||
| 11 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 12 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 13 | RIVET NUT M8 826/01254 826/01106 | 1 | $1.04 | |||
| 14 | COUPLING QR FEMALE 1/4BSP 45/920119 | 1 | $170.50 | |||
| 15 | WASHER 1/2 1417/0014Z 1417/0014D | 1 | $1.16 | |||
| 16 | BACK NUT 1/4 BSP 1356/0202Z | 1 | $13.54 | |||
| 17 | Hose 11AP/AA064 | 1 | $36.78 | |||
| 18 | CABLE TIE 100mm natural (R) 826/11294 | 1 | $0.34 | |||
| 19 | CABLE TIE 100mm green (R) 826/11297 | 1 | $0.50 | |||
| 20 | CABLE TIE 100mm blue (R) 826/11295 | 1 | $0.38 | |||
| 21 | CABLE TIE 100mm orange (R) 826/11298 | 1 | $0.58 | |||
| 22 | DECAL seat hoses iso 332/C7995 | 1 | $4.56 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
DIAG-E140-194-4-394862 E140-194-4 HYDRAULIC CIRCUITS EXCAVATOR END EXCAVATOR VALVE CENTREMOUNT, EASYCONTROL, OCVP, T4i
View Diagram -
DIAG-E130-189-2-394862 E130-189-2 HYDRAULIC CIRCUITS CHASSIS AUTO IDLE, OCVP, HAND TOOL CIRCUIT, EXTENDING DIPPER
View Diagram -
DIAG-E320-25-1-394862 E320-25-1 VALVES EXCAVATOR SIDESHIFT DIRECT CONTROL , JCB/SAE , OCVP
View Diagram
