Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 3 | SUPPORT PLATE 332/Y6981 | 1 | $3.91 | |||
| 8 | LABEL - ISO-15C TYPE A 817/70021 | 1 | $4.32 | |||
| 9 | LABEL - back-pressure 817/70147 | 1 | $19.06 | |||
| 10 | (W) (P) LABEL - ISO-06A TYPE A 332/F5855 | 1 | $1.89 | |||
| 13 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 14 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 15 | BOLT M10x40 1315/3410Z | 1 | $5.45 | |||
Showing 1 to 7 of 7 parts
Related Assemblies
-

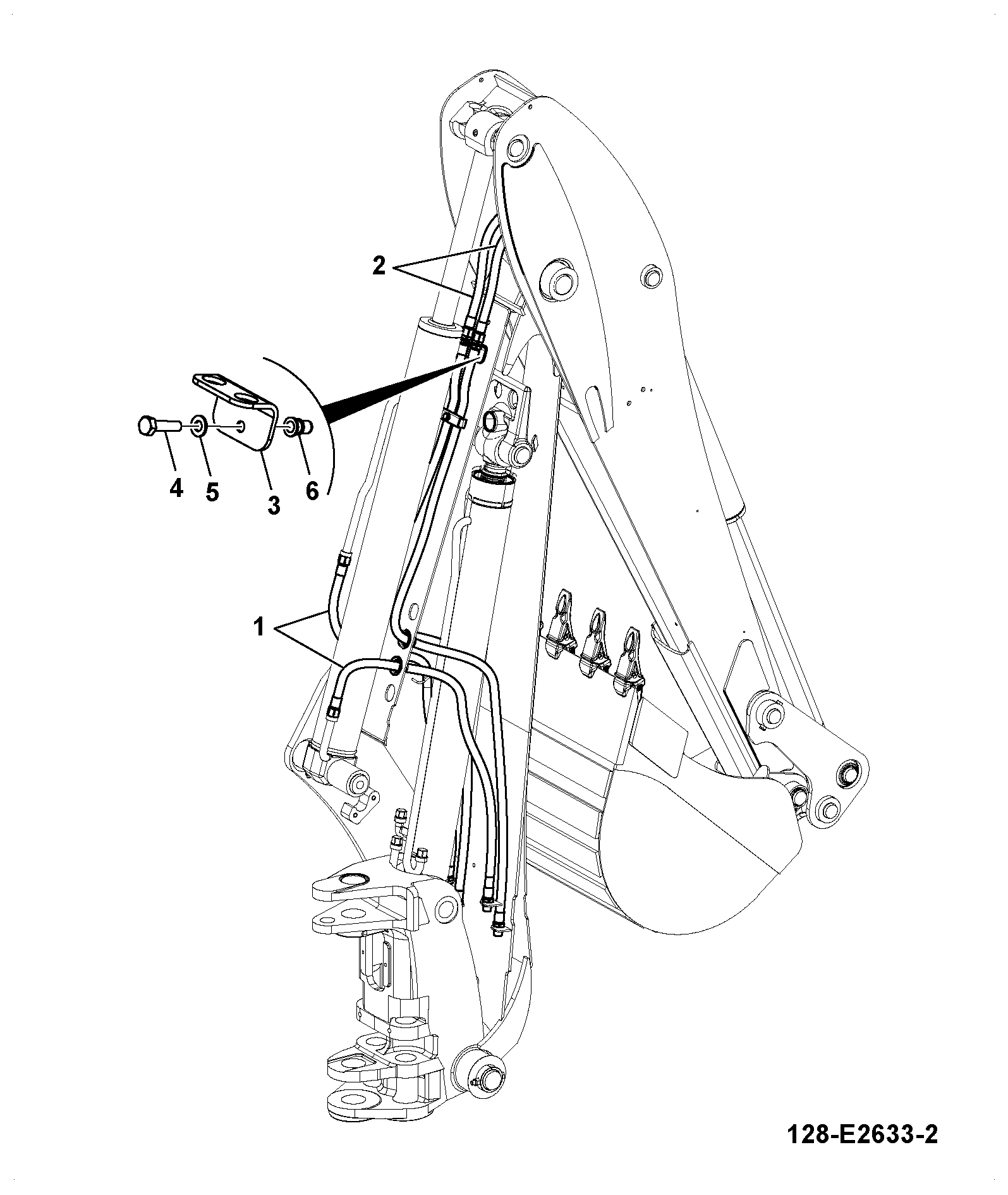

DIAG-E140-110-1-394758 E140-110-1 HYDRAULIC CIRCUITS EXCAVATOR END BOOM BASE TO BUCKET RAM
View Diagram -
DIAG-E140-115-1-394758 E140-115-1 HYDRAULIC CIRCUITS EXCAVATOR END BOOM BASE TO DIPPER RAM AND BUCKET RAM
View Diagram -

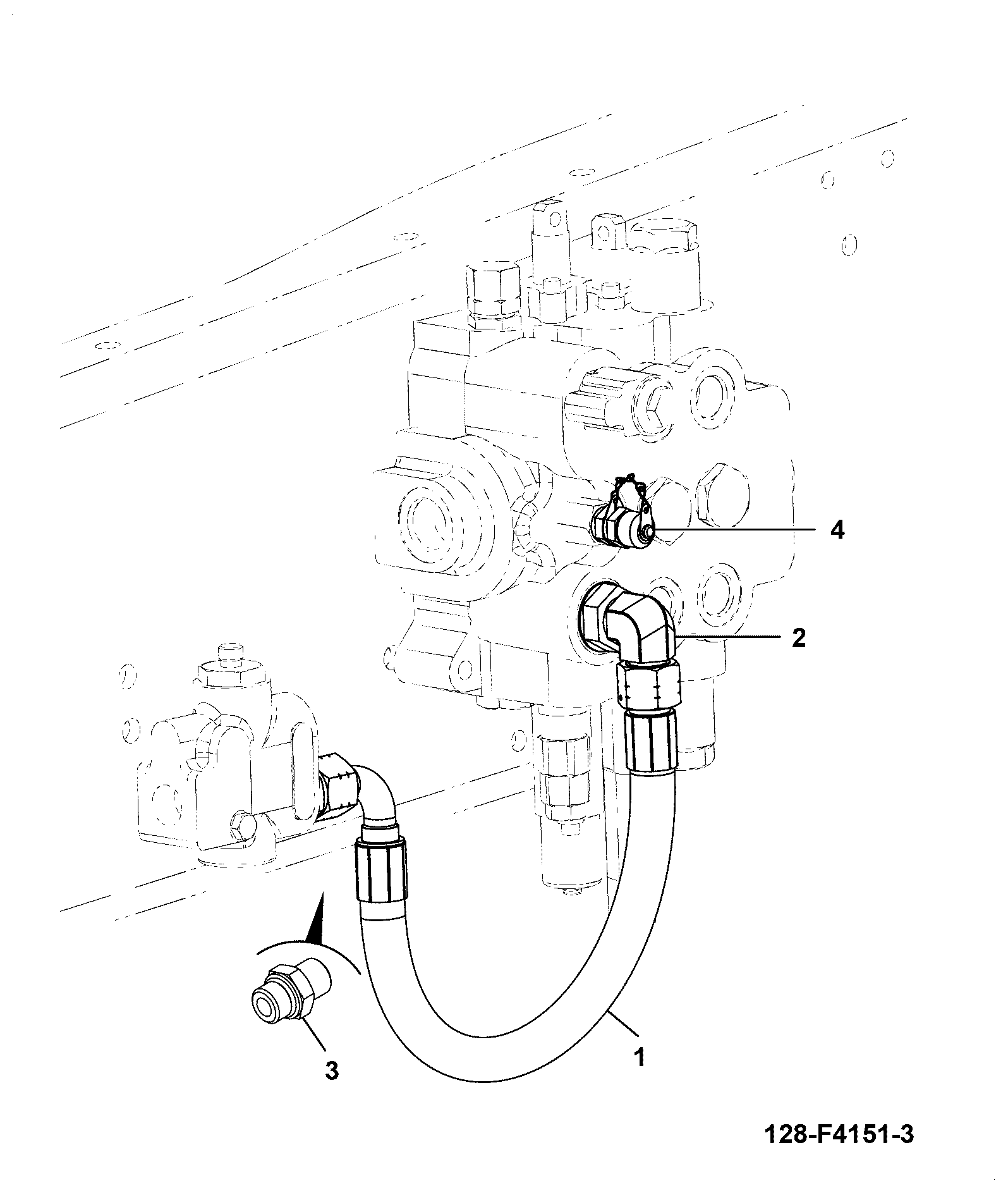

DIAG-E130-75-1-394758 E130-75-1 HYDRAULIC CIRCUITS CHASSIS PUMP
View Diagram
