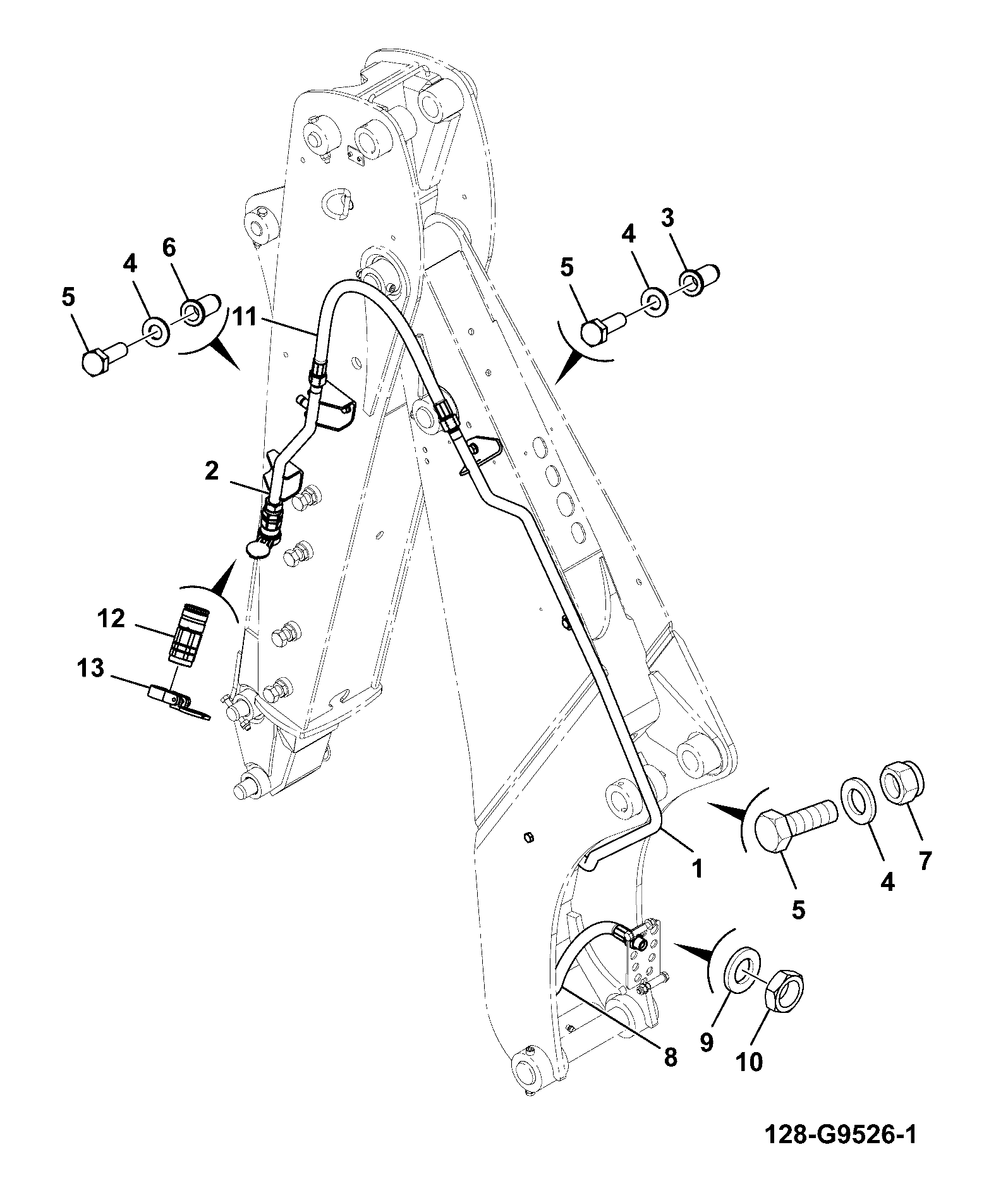

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA HMR BOOM PIPE RETURN 1 400/G6248 | 1 | $540.91 | |||
| 2 | WA DIPPER PIPE RETURN EXT 400/Z8408 | 1 | $356.76 | |||
| 3 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 4 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 5 | SET SCREW M10x35 1315/0409Z | 1 | $8.37 | |||
| 6 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 7 | RIVET NUT M10 826/01617 | 1 | $34.36 | |||
| 8 | ABI HOSE 5/8 BSP HP 980A SLEEVE 332/H4311 | 1 | $157.96 | |||
| 9 | WASHER 7/8" INT LOCK 1418/0018Z | 1 | $5.34 | |||
| 10 | (P) BACK NUT 5/8 BSP 1356/0205Z | 1 | $12.20 | |||
| 11 | ABI HOSE 5/8 BSP HP 660A 400/H2728 | 1 | $85.43 | |||
| 12 | QRC 12 FEMALE - 12 SAE 45/920047 | 1 | $194.17 | |||
| 13 | DUST CAP - QRC A13 RED 45/908401 | 1 | $3.85 | |||
Showing 1 to 13 of 13 parts
