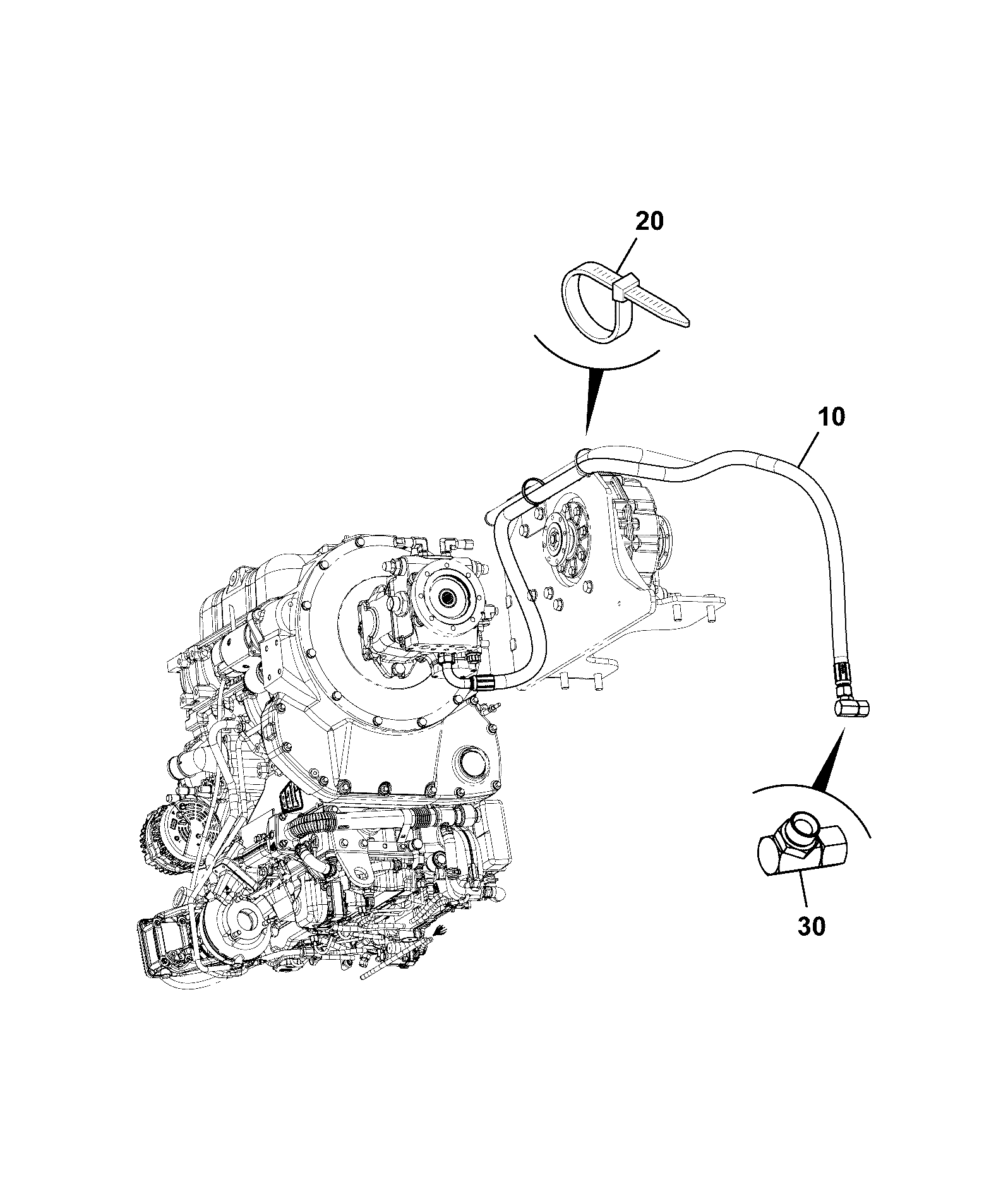

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | WA AUX TWIN PIPE BOOM NOS 402/V7766 | 1 | $177.07 | |||
| 20 | WA AUX SINGLE PIPE BOOM N 400/L9371 | 1 | $99.36 | |||
| 30 | ADAPTOR 1/16SAE x G1/2 816/90356 | 1 | $59.43 | |||
| 40 | QRC F + CAP2 12 400/F5201 | 1 | $88.07 | |||
| 50 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 60 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
Showing 1 to 6 of 6 parts
Related Assemblies
-
DIAG-E130-10-1-402856 E130-10-1 HYDRAULIC CIRCUITS CHASSIS INSTALLATION FRONT SIDE
View Diagram -
DIAG-E130-5-1-402856 E130-5-1 HYDRAULIC CIRCUITS CHASSIS LINES TRANS COOLER
View Diagram -
DIAG-E190-5-1-402856 E190-5-1 OTHER HYDRAULIC CIRCUITS PUMP,CASE DRAIN
View Diagram
