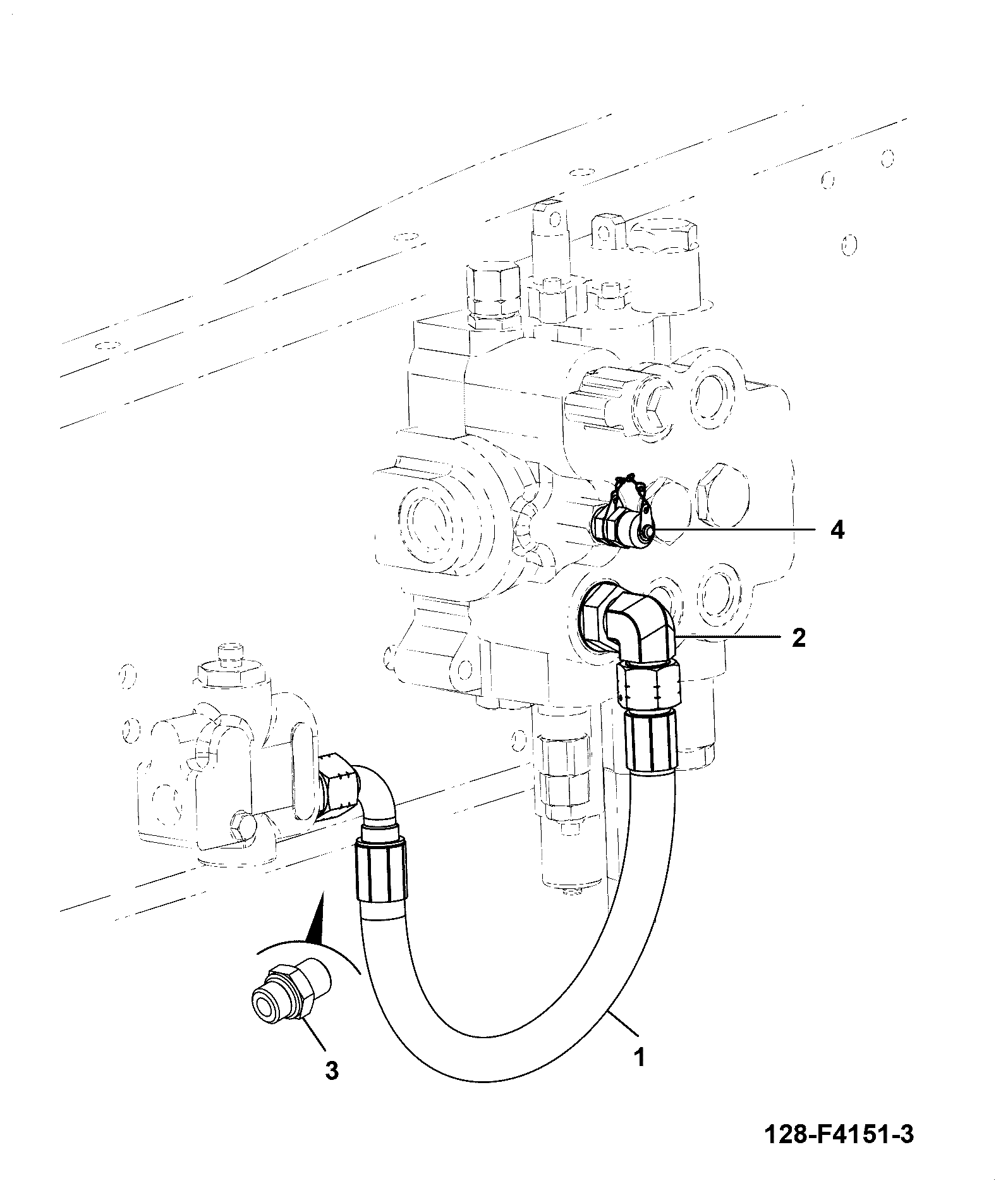

E130-70-1 HYDRAULIC CIRCUITS CHASSIS SECOND PUMP Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	0W) (P) ELBOW ADAPTOR M/M 816/90460	1	AVAILABLE TO ORDER	$67.93	Quantity
2	ADAPTOR G5/8A-7/8UNF(M) 335/F4434	1	AVAILABLE TO ORDER	$31.96	Quantity
3	HOSE -10 BSP HP 560mm B 335/F4086	1	AVAILABLE TO ORDER	$108.34	Quantity
4	TEST POINT 7/16in UNF 331/52444	1	AVAILABLE TO ORDER	$28.33	Quantity

Showing 1 to 4 of 4 parts

DIAG-E130-50-1-394764 E130-50-1 HYDRAULIC CIRCUITS CHASSIS PUMP
View Diagram
DIAG-E140-5-5-394764 E140-5-5 HYDRAULIC CIRCUITS EXCAVATOR END RAMS SLEW/SWING CIRCUIT
View Diagram
DIAG-E140-10-1-394764 E140-10-1 HYDRAULIC CIRCUITS EXCAVATOR END BOOM BASE TO DIPPER RAM AND BUCKET RAM
View Diagram
