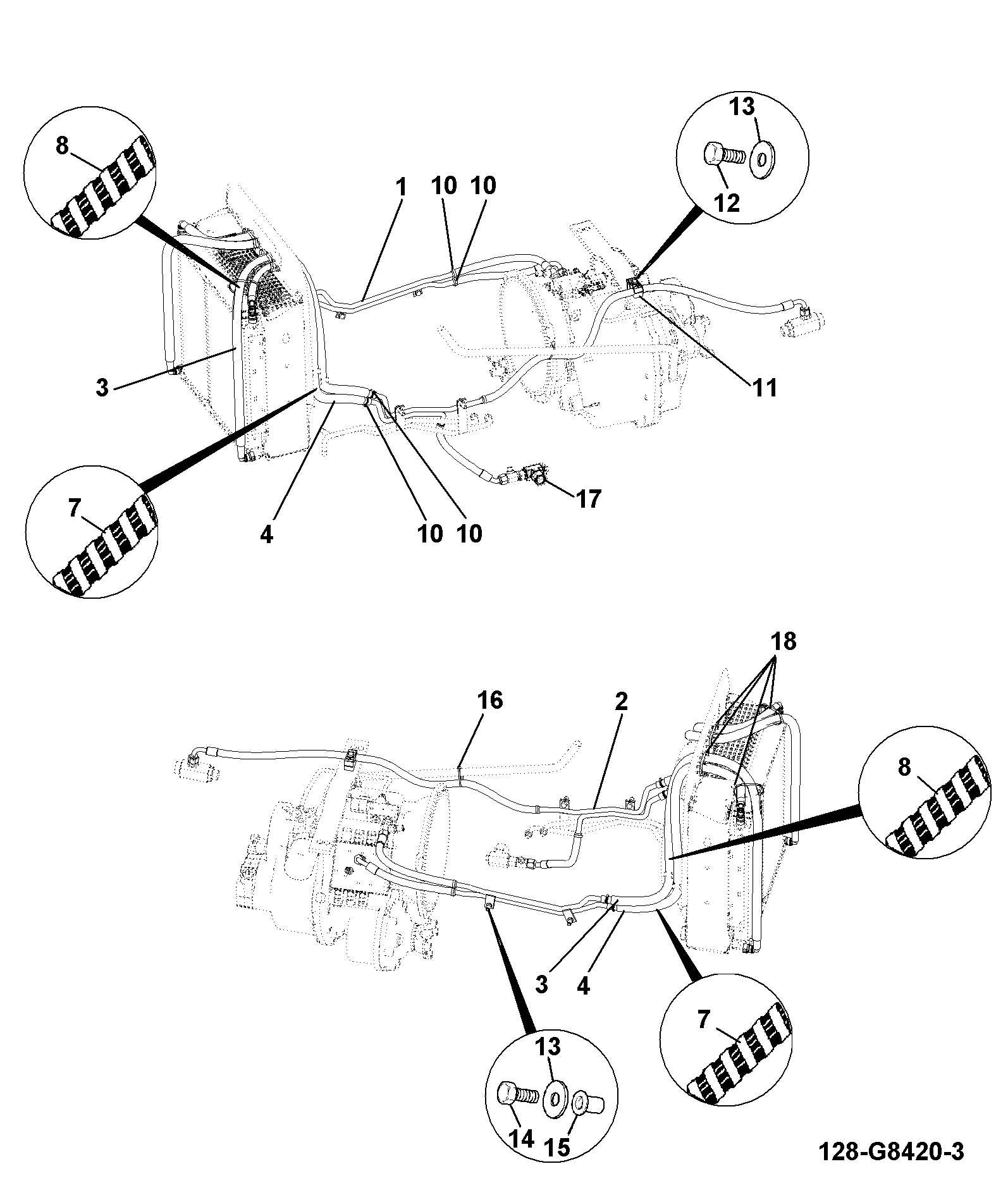

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| RIVET NUT-M8 (BR3) 826/01103 | 1 | $1.46 | ||||
| 1 | PILOT MANIFOLD 332/F8176 | 1 | $2,977.30 | |||
| 3 | ADAPTOR TEE POSITIONAL 332/C6843 | 1 | $15.23 | |||
| 4 | Adapter 1"BSP x 1/ 816/90753 | 1 | $27.29 | |||
| 5 | ADAPTOR G1/2A-3/4UNF(M) 1620/2054 | 1 | $37.26 | |||
| 6 | (W) (P) Q/R COUPLING 9/16 332/C0191 | 1 | $54.58 | |||
| 7 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 8 | 'Adapter Pressure Test Point 9/16-18UNF 45/908000 | 1 | $132.58 | |||
| 9 | PLUG - 9/16" UNF 816/81023 | 1 | $9.57 | |||
| 10 | #4 BSP HP 1010mm B 611/24300 | 1 | $59.19 | |||
| 11 | RIVET NUT M8 826/01254 826/01106 | 1 | $1.04 | |||
| 12 | ADAPTOR 1 1/6 UNFxG3/4Ax7/16UNF 332/G9164 | 1 | $43.30 | |||
| 13 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 14 | BOLT M8x80(KANBAN) 1315/3318Z | 1 | $2.44 | |||
| 15 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 16 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 17 | P-CLIP 20 I/D 332/C5679 | 1 | $5.61 | |||
| 18 | ADAPTOR G1/4A-7/16UNF(M) 1620/2050 | 1 | $2.60 | |||
| 19 | HOSE - 08 BSP LP 1350mm A 332/E7555 | 1 | $51.92 | |||
| 20 | 1/4 BSP HOSE 1370m 611/20200 332/G2537 | 1 | $92.40 | |||
| 21 | PLAIN WASHER M10 823/00326 | 1 | $1.78 | |||
| 22 | HPA MINI FILTER 32/925768 | 1 | $508.38 | |||
| 23 | SET SCREW M6 X 16 GRADE 8.8 1315/0203Z 1315/0203D | 1 | $0.54 | |||
| 24 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 25 | MOUNT pilot line filter 332/E6556 | 1 | $23.47 | |||
| 26 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 27 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
Showing 1 to 27 of 27 parts
