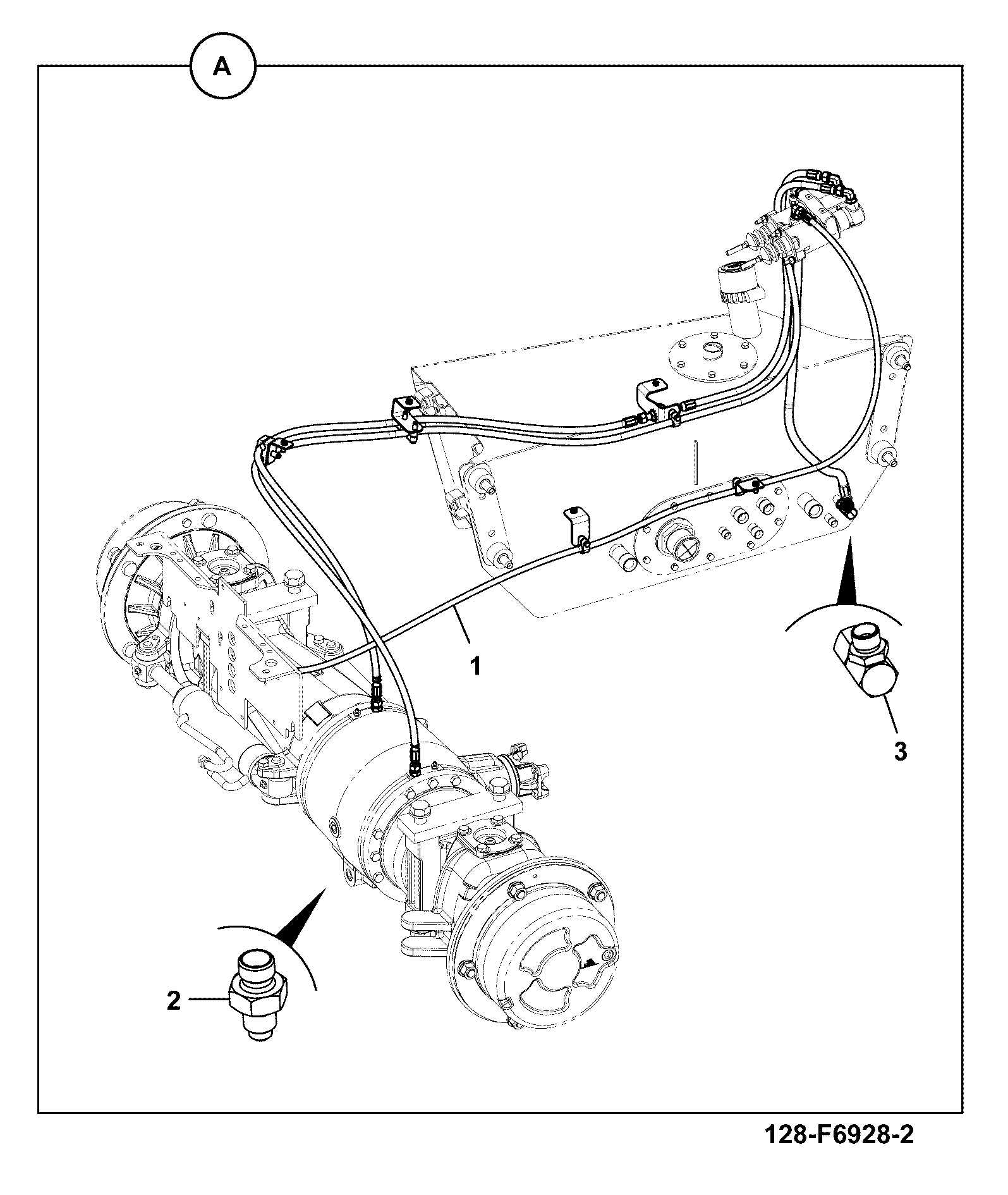

E130-40-1 HYDRAULIC CIRCUITS CHASSIS BRAKE LINES REAR AXLE, HIGH FLOW/CREEP SPEED, 3CX COMPACT

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	ADAPTOR M12 x G1_4A 816/90298	1	AVAILABLE TO ORDER	$7.42	Quantity
3	90 DEG ELBOW M/F 816/90076	1	AVAILABLE TO ORDER	$45.04	Quantity
4	T ADAPTOR 1/4" BSP 816/90062	1	AVAILABLE TO ORDER	$13.29	Quantity
5	PRESSURE TRANSDUCER 400/S1305	1	AVAILABLE TO ORDER	$165.85	Quantity
6	ELBOW ADAPTOR 1/4BSP (P493) 816/90004	1	AVAILABLE TO ORDER	$35.04	Quantity

Showing 1 to 5 of 5 parts
