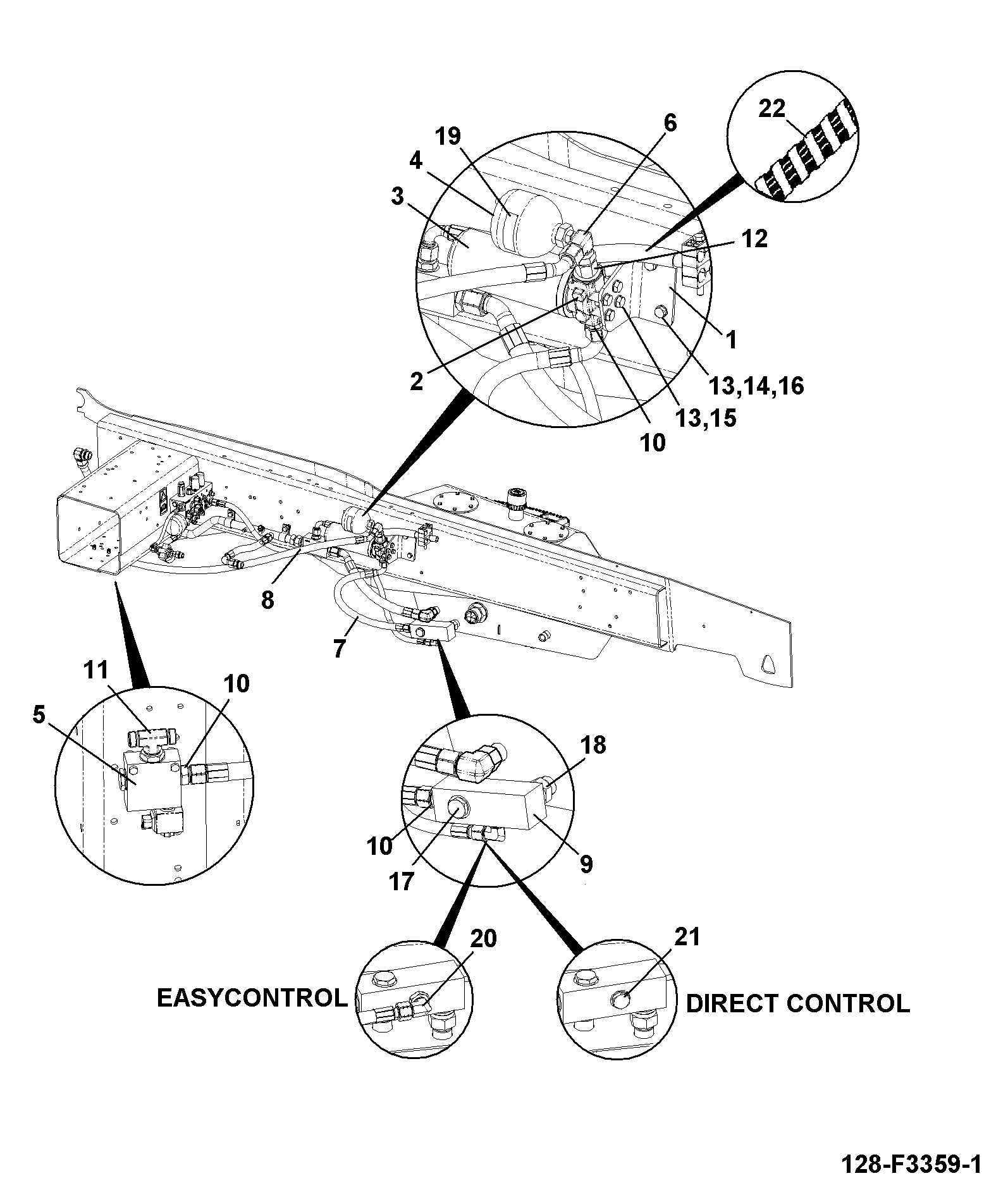

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 4 | HOSE 1/4BSP 660mm 31AP/BA066 | 1 | $46.61 | |||
| 5 | HOSE 5/8 BSP HP 640A 34AP/AA064 | 1 | $67.07 | |||
| 6 | HOSE 3/4 BSP HP 500B 35AP/BA058 | 1 | $100.07 | |||
| 8 | HOSE 5/8 BSP HP 1160B 34AP/BA116 | 1 | $95.35 | |||
| 9 | HOSE 5/8BSP 480mm 34AP/DA048 | 1 | $72.63 | |||
| 11 | ADAPTOR G3/4A-1-1/16UNF(M 1620/0010 1620/2059 | 1 | $14.30 | |||
| 12 | adaptor 1620/2060 | 1 | $59.43 | |||
| 13 | ADAPTOR G5/8A-1-1/16UNF(M) 1620/0008 1620/2057 | 1 | $25.23 | |||
| 14 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 15 | ADAPTOR G5/8Ax7/8SAE 1620/0007 1620/2056 | 1 | $12.58 | |||
| 16 | 9DAPTOR TEE 816/00344 816/90043 | 1 | $24.83 | |||
| 17 | ADAPTOR ELBOW 816/90594 | 1 | $169.51 | |||
| 18 | ADAPTOR 1-5/16SAExG5/8A 816/90217 | 1 | $30.44 | |||
| 19 | (W) (Pre-P) ADAPTOR -TEE 816/90277 | 1 | $126.10 | |||
| 20 | ELBOW ADJ 45Deg SAE ORB-12XG5/8 332/F7946 | 1 | $22.86 | |||
| 24 | ADAPTOR 1-1/6SAE x G3/4 816/90489 | 1 | $11.19 | |||
| 25 | P CLIP DIA 25MM H/STATIC 821/10220 | 1 | $9.96 | |||
| 27 | SET SCREW M8 x 75 GRADE 8.8 1315/0317Z | 1 | $2.41 | |||
| 28 | ADAPTOR 45 DEG 7/8" UNF X G5/8 334/L7435 | 1 | $99.72 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-

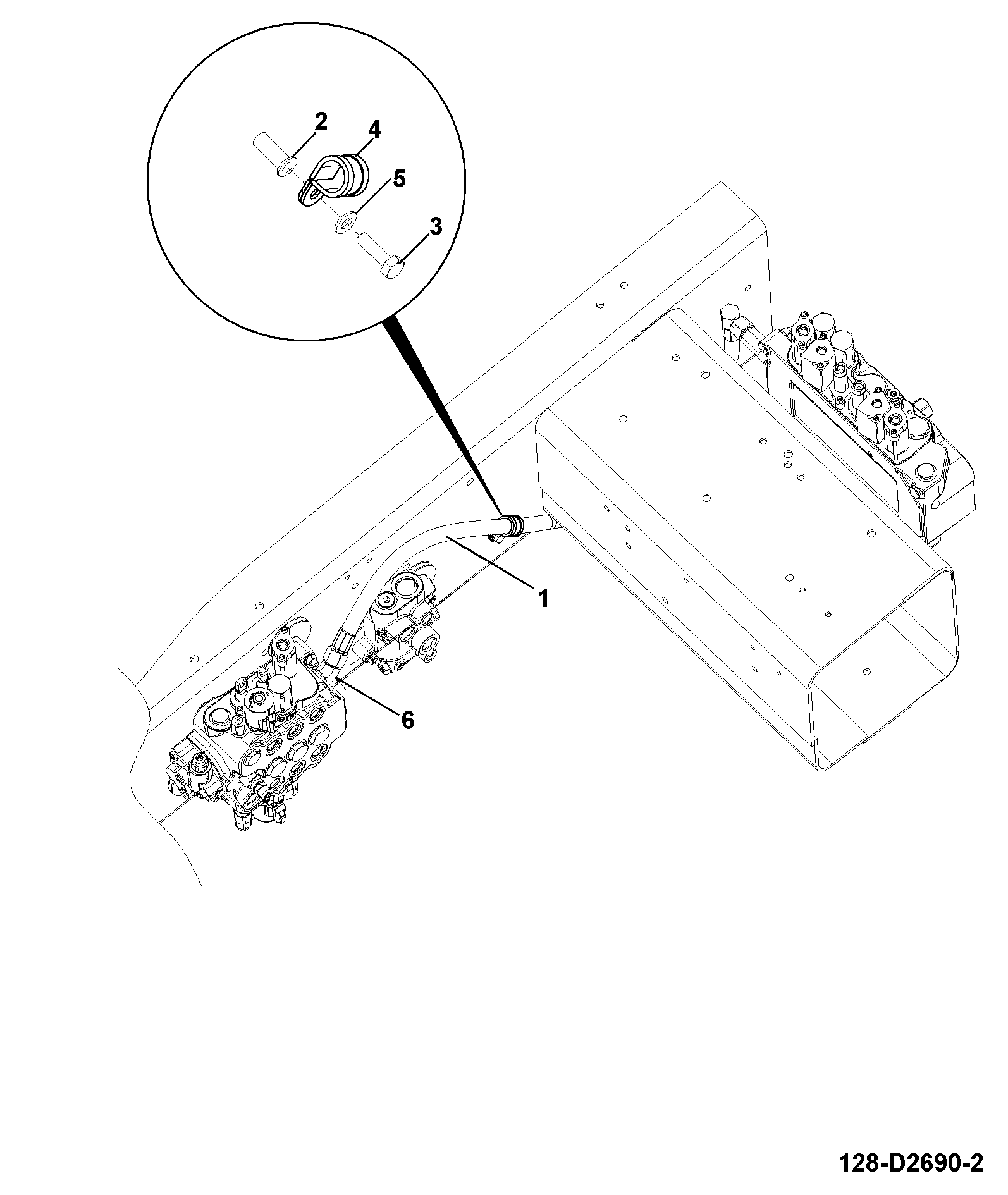

DIAG-E130-240-1-394807 E130-240-1 HYDRAULIC CIRCUITS CHASSIS VARIFLOW PUMP TO VALVES, EASYCONTROL, OCVP, T4i
View Diagram -

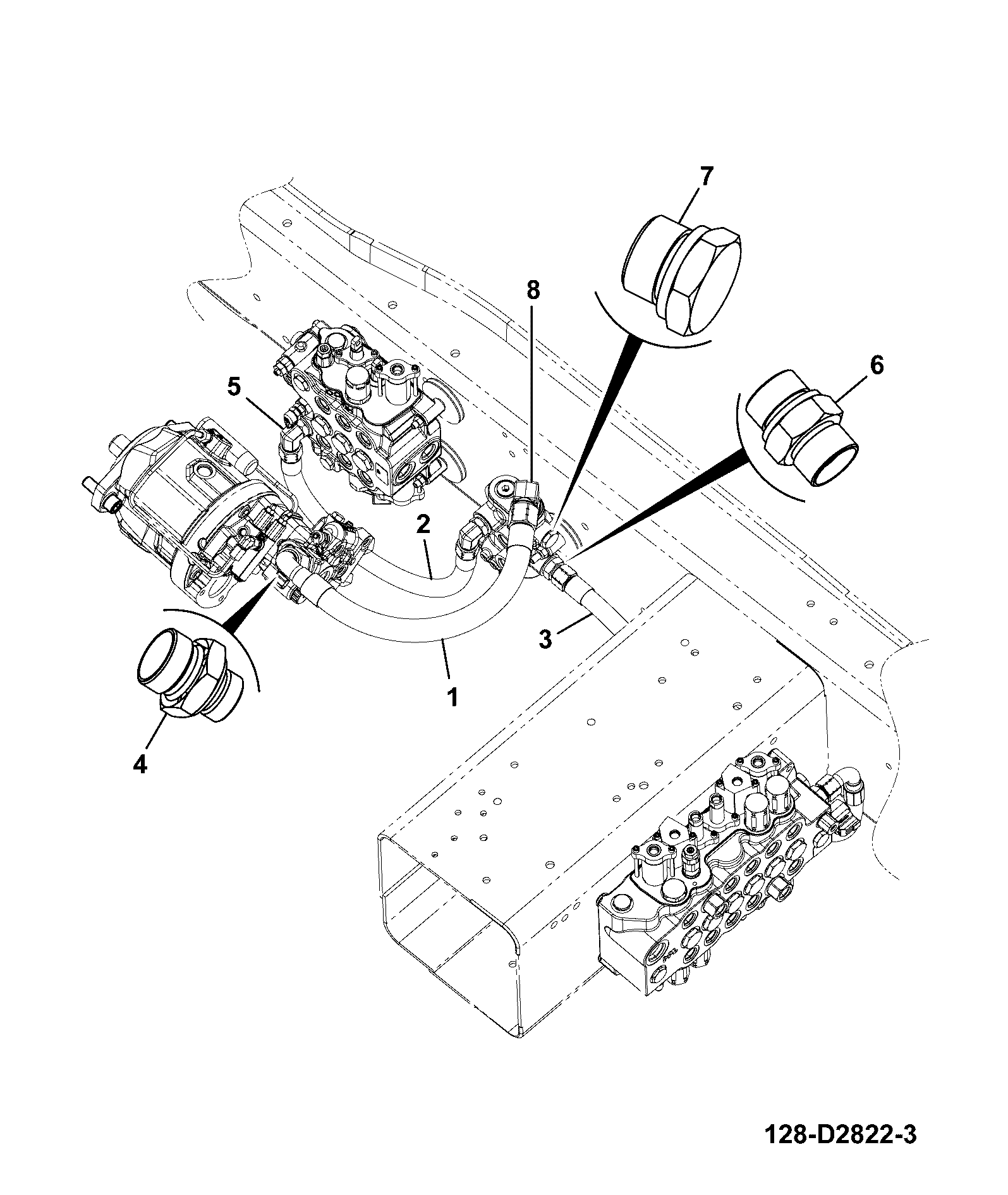

DIAG-E130-247-1-394807 E130-247-1 HYDRAULIC CIRCUITS CHASSIS BI-DIRECTIONAL FLOW RETURN, EASYCONTROL, OCVP
View Diagram -
DIAG-E130-235-1-394807 E130-235-1 HYDRAULIC CIRCUITS CHASSIS LOADER VALVE TO EXCAVATOR VALVE, INLET CENTRE BYPASS, EASYCONTROL, OCVP, T4i
View Diagram
