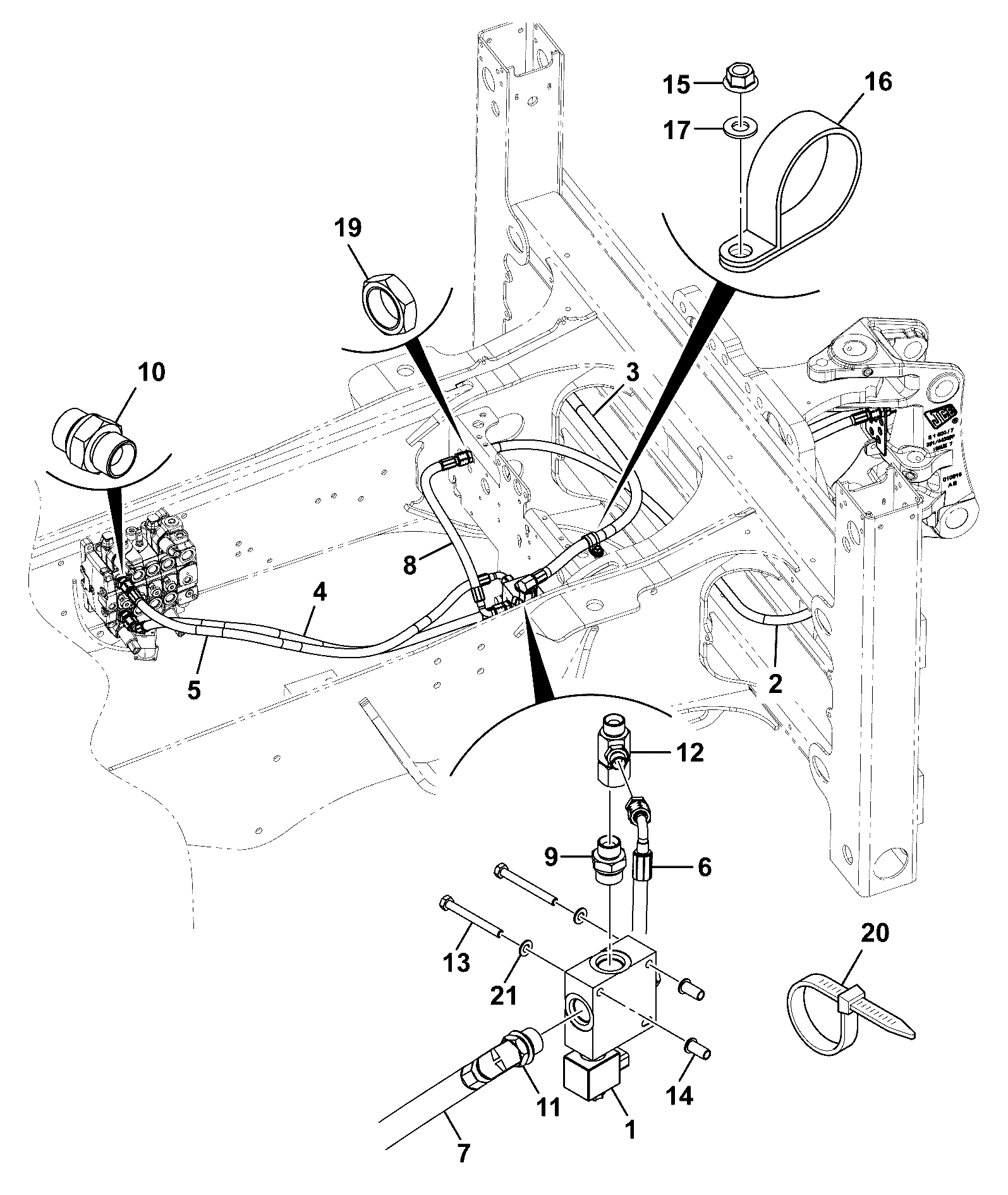

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | BULKHEAD PLATE exc contro 334/E5275 | 1 | $16.59 | |||
| 2 | COUPLING QR FEMALE 1/4BSP 45/920119 | 1 | $170.50 | |||
| 3 | WASHER 1/2 1417/0014Z 1417/0014D | 1 | $1.16 | |||
| 4 | BACK NUT 1/4 BSP 1356/0202Z | 1 | $13.54 | |||
| 5 | Hose 11AP/BA074 | 1 | $46.78 | |||
| 6 | HOSE 1/4 BSP LP 600B 11AP/BA060 | 1 | $43.54 | |||
| 7 | HOSE 1/4 BSP LP 340B 11AP/BA034 | 1 | $52.57 | |||
| 8 | Hose 11AP/BA042 | 1 | $39.35 | |||
| 9 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 10 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 12 | ISO/SAE CHANGE-OVER 332/C1358 | 1 | $731.97 | |||
| 13 | Q/R COUPLING 7/16 UNF 332/C8532 | 1 | $20.97 | |||
| 14 | ADAPTOR G1/4A-7/16UNF(M) 1620/2050 | 1 | $2.60 | |||
| 15 | HOSE CLAMP 12.7x2 way M8 fixing (P461) 333/E4412 | 1 | $4.38 | |||
| 16 | WASHER M_8 LARGE(KANBAN) 823/00322 | 1 | $4.06 | |||
| 17 | SET SCREW M8x50 1315/0312Z | 1 | $4.45 | |||
| 18 | BOLT M_8 L-_16mm FLANGED HEX(KANBAN) 1317/3303Z | 1 | $1.05 | |||
| 19 | CABLE TIE 100mm orange (R) 826/11298 | 1 | $0.58 | |||
| 20 | CABLE TIE 100mm green (R) 826/11297 | 1 | $0.50 | |||
| 21 | CABLE TIE 100mm yellow 826/11319 | 1 | $0.38 | |||
| 22 | CABLE TIE 100mm blue (R) 826/11295 | 1 | $0.38 | |||
| 23 | HOSE 1/4 BSP LP 480B 11AP/BA048 | 1 | $24.83 | |||
| 24 | RIVET NUT M8 826/01254 826/01106 | 1 | $1.04 | |||
| 25 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 26 | (W) (P) Q/R COUPLING 9/16 332/C0191 | 1 | $54.58 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-
DIAG-E130-220-1-394720 E130-220-1 HYDRAULIC CIRCUITS CHASSIS POWER SLIDE, EXTENDING DIPPER, HAMMER, 3CX COMPACT
View Diagram -

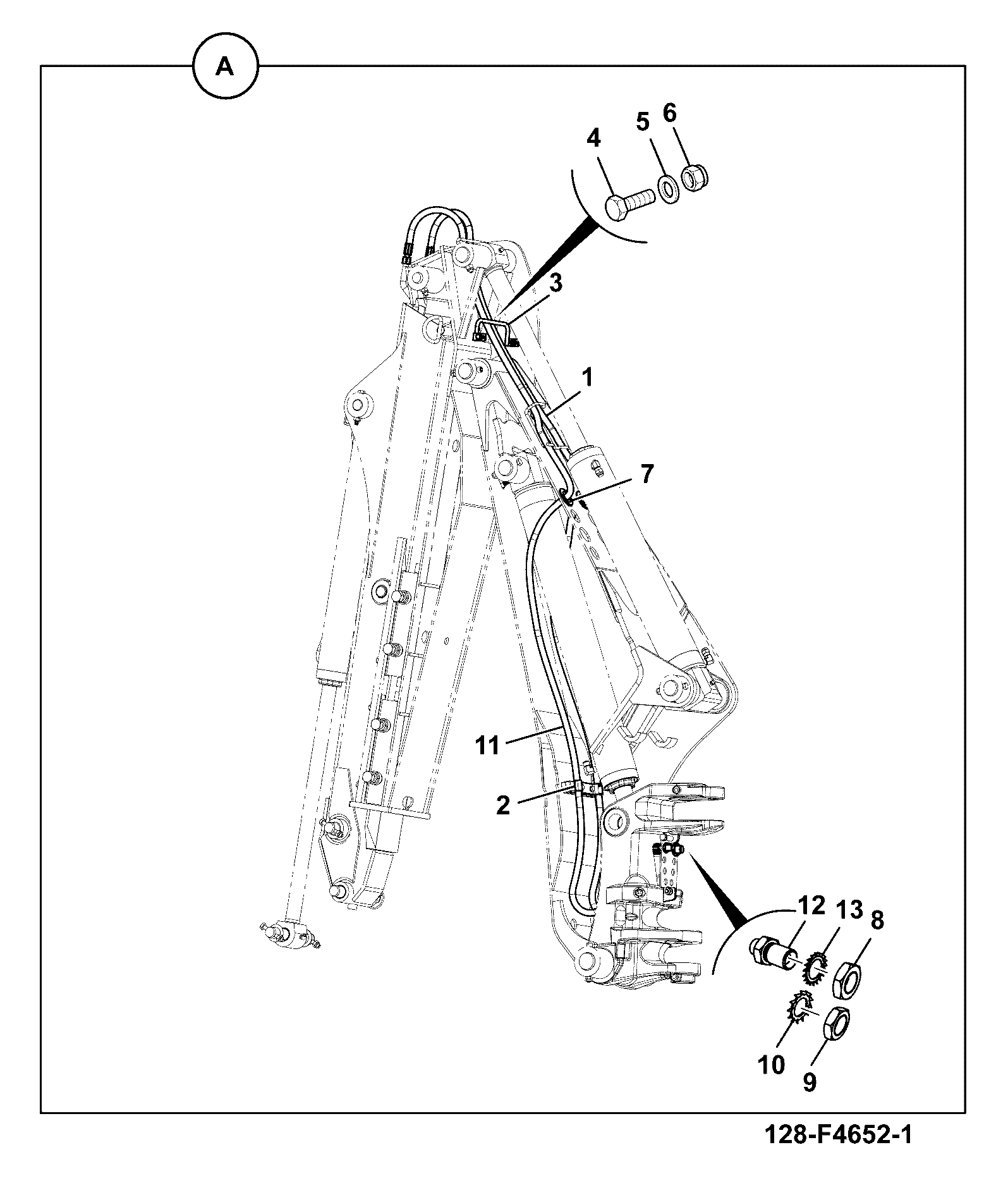

DIAG-E140-55-1-394720 E140-55-1 HYDRAULIC CIRCUITS EXCAVATOR END EXTENDING DIPPER RAM, 10', 3CX COMPACT
View Diagram -

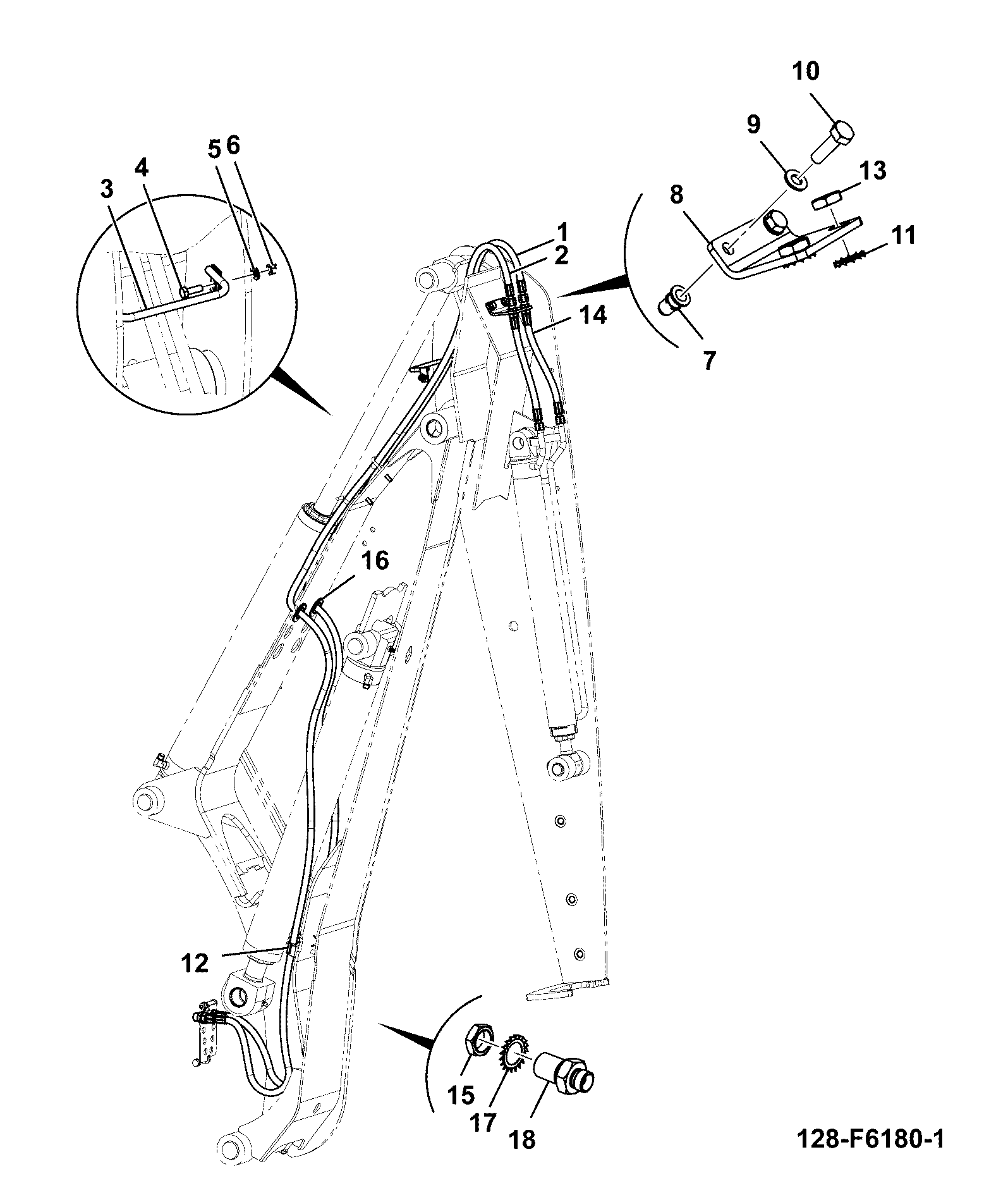

DIAG-E140-75-1-394720 E140-75-1 HYDRAULIC CIRCUITS EXCAVATOR END EXTENDING DIPPER RAM, 12', 3CX COMPACT
View Diagram
